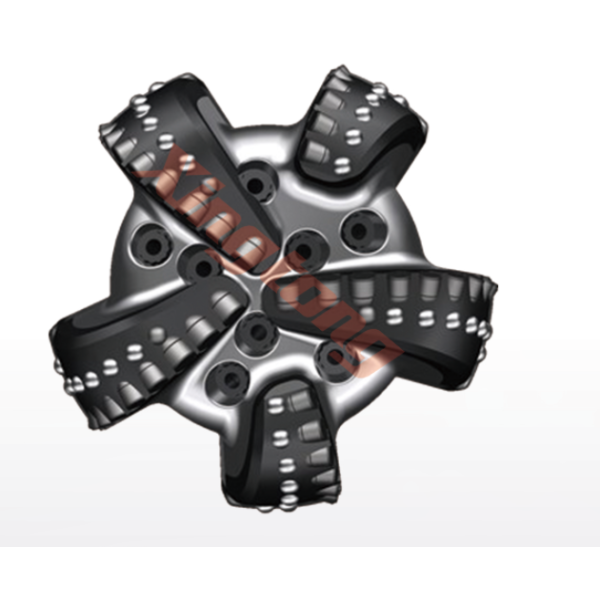

46 Cutters Pdc Cutter High Speed Drilling Bits For Oil Rigs 12 1/4in 311mm
46 Cutters Pdc Cutter High Speed Drilling Bits For Oil Rigs 12 1/4in 311mm
46 Cutters Pdc Cutter High Speed Drilling Bits For Oil Rigs 12 1/4in 311mm
46 Cutters Pdc Cutter High Speed Drilling Bits For Oil Rigs 12 1/4in 311mm
Specifications
IADC code :
S224
Gauge :
9
Make-Up Length :
383mm
Approximate Shipping Weight :
192kg
MOQ :
1 Piece（MOQ）
Face :
28+9
Normalized Face Volume :
41%
Nozzle type & count :
L*8
Gauge Length :
76mm
Junk slot area (sq mm) :
21264
Make-Up TQ :
50-59KN.m
Price :
Negotiable
Cutter Type :
GI
Supply Ability :
Stable supply and support for bulk customization.
API Connection :
6-5/8REG.pin
Model Number :
12 1/4″ 311mm XHR 5194KM
Body type :
STEEL
Total Cutter Count :
46
Brand Name :
XINGTONG
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Description
PDC Drill Bits 12 1/4″ 311mm XHR 5194KM – Suitable for High-Speed Drilling in Soft Formations
XHR Series Features
  • Suitable for improving ROP in soft formation.
  • Optimize shaped cutter layout to improve the drilling efficiency and improve cuttings removing.
  • Optimize nozzles and junk slot design by using CFD to speed up cutting moving.
  • The high strength steel body makes the blade thinner to prevent back tail of the blade contact the formation while in high ROP.
Product Features
  • 1piece Bit
  • 0.8mm Relieved Gauge
  • 1.6mm Relieved Gauge
  • Passive element
  • Up-Drill Cutters on Gauge Pads
  • Drop In Cutters on Gauge Pads
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters.
