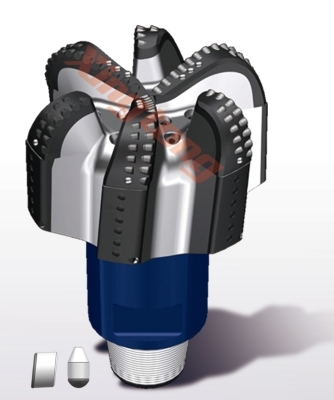

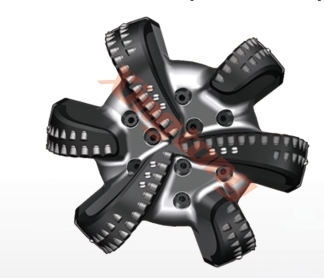

PDC Drill Bit 17-1/2″ (444mm) XH 6163ML for Extremely Hard Strata Polycrystalline Diamond Compact Drill Bit
PDC Drill Bit 17-1/2″ (444mm) XH 6163ML for Extremely Hard Strata Polycrystalline Diamond Compact Drill Bit
PDC Drill Bit 17-1/2″ (444mm) XH 6163ML for Extremely Hard Strata Polycrystalline Diamond Compact Drill Bit
PDC Drill Bit 17-1/2″ (444mm) XH 6163ML for Extremely Hard Strata Polycrystalline Diamond Compact Drill Bit
Specifications
IADC code :
S223
Face :
31+60
Junk slot area (sq mm) :
53716
Gauge :
6
Gauge Length :
152mm
Make-Up Length :
721mm
MOQ :
1 Piece（MOQ）
Brand Name :
XINGTONG
Model Number :
17-1/2″ (444mm) XH 6163ML
Certification :
API 、ISO 9001
Payment Terms :
L/C,D/P,T/T,
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Updrill :
6
Make-Up TQ :
65-93KN.m
Approximate Shipping Weight :
554kg
Nozzle type & count :
L*9
API Connection :
7-5/8 REG.pin
Price :
Negotiable
body type :
STEEL
Place of Origin :
CHINA
Total Cutter Count :
103
Cutter Type :
GII
Normalized Face Volume :
28.51%
Description
PDC Drill Bit 17-1/2″ (444mm) XH 6163ML For Extremely Hard Strata
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve bit durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
Important Notes
  • Recommended top-buckle torque is set according to inner and outer diameter of the joint, with reference to API7G
  • Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer
  • Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
