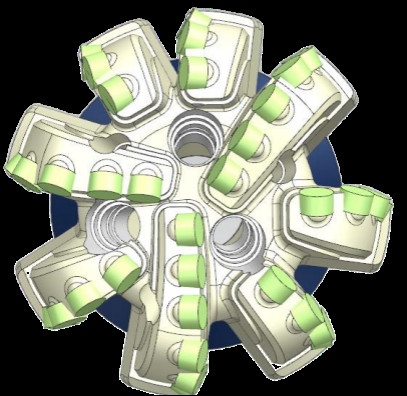

PDC Drill Bit 6″ 152.4mm XH 816LD for Super Hard Formations Oil Drilling
PDC Drill Bit 6″ 152.4mm XH 816LD for Super Hard Formations Oil Drilling
PDC Drill Bit 6″ 152.4mm XH 816LD for Super Hard Formations Oil Drilling
PDC Drill Bit 6″ 152.4mm XH 816LD for Super Hard Formations Oil Drilling
Specifications
Updril :
8
Make-Up TQ :
7-10KN.m
Approximate Shipping Weight :
24kg
Nozzle type & count :
M*3+N*3
API Connection :
3-1/2 REG
Price :
Negotiable
IADC code :
S434
Total Rotary Speed :
80~200rpm
Face :
40
Junk slot area (sq mm) :
4977
WOB :
8-18 ton
Place of Origin :
CHINA
Gauge :
16
Gauge Length :
85mm
Make-Up Length :
239mm
Body type :
STEEL
Certification :
API 、ISO 9001
Payment Terms :
L/C,D/P,T/T,
Supply Ability :
Stable supply and support for bulk customization.
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Total Cutter Count :
64
Model Number :
6″ 152.4mm XH 816LD
Cutter Type :
GI
Flow Rate :
20-40L/s
Brand Name :
XINGTONG
MOQ :
1 Piece（MOQ）
Normalized Face Volume :
28%
Description
PDC Drill Bits 6″ 152.4mm XH 816LD for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining aggression
Product Features
  • 0.8mm Relieved Gauge
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
  • 4D shaped cutter
  • Drop In Cutters on Gauge Pads
Important Notes

The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G.

The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer.

The pictures are for reference only. Please contact Skycom engineers for detailed technical parameters.
