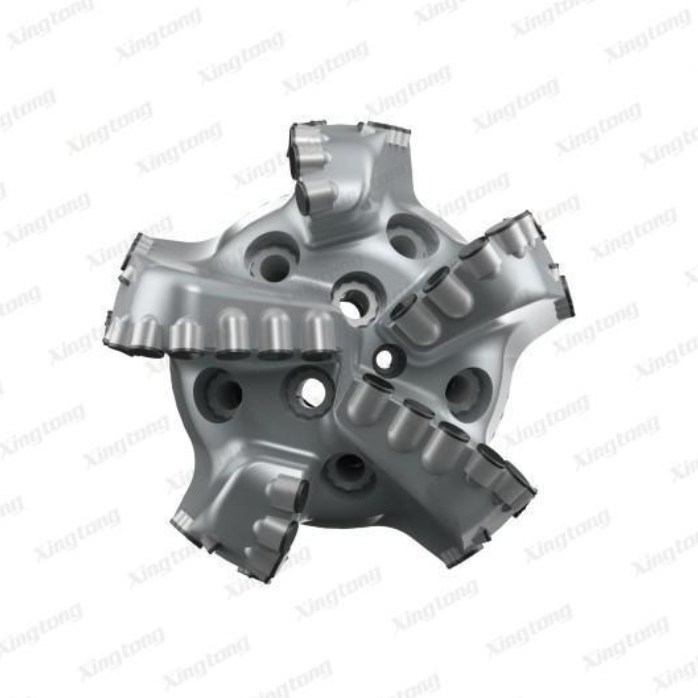

8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
8 1/2 Size PDC Drill Bit with GI Cutter Grade and Ultra-Short Body Design for Enhanced Drilling Efficiency XD 8 1/2 S 5164 S(24060)
Specifications
Nozzle type & count :
M*7、D*1
Make-Up length :
205mm
Total flow area :
724mm^2
Chip Removal Groove Area Ratio :
60.7%
Gauge Length :
52mm
Place of Origin :
CHINA
MOQ :
1 Picece(MOQ)
IADC code :
S222
Packaging Details :
Standard Exported Package
Gauge :
30
API Connection :
4-1/2REG
Updrill :
5
Approximate Shipping Weight :
30kg
Recommended Weight on Bit（Maximum Acceptable） :
14-16T（133T）
Delivery Time :
15-45 Days
Supply Ability :
Stable supply and support for bulk customization
Make-Up TQ :
17.0-26.4KN.m
body type :
STEEL
Payment Terms :
L/C,D/P,T/T,
Price :
Negotiable
Certification :
API、ISO 9001
Face :
28
Brand Name :
XINGTONG
Model Number :
8 1/2 XD S 5164 S(24060)
Cutter Grade :
GI
Description
Xingtong Drill Bit 8 1/2 XD S 5164 S(24060)
Positioning

The diamond composite inserts used in this drill bit exhibit exceptional wear resistance and impact toughness, enabling sharp cutting performance even in hard formations and ensuring outstanding performance across a wide range of lithologies. The reinforced matrix material and thickened gauge protection design significantly enhance the bit's resistance to abrasion and erosion.

Technical Highlights
  • Suitable for use with a rotary steerable system to increase the build rate, or with a screw motor to enhance directional drilling efficiency.
  • Ultra-short body design reduces the effective make-up length by 40% compared with conventional drill bits, significantly enhancing deviation-control capability.
  • The unique detent-tooth design ensures excellent tool-face stability even under enhanced weight-on-bit during directional sliding.
  • The maximum build rate for bent subs is ≥30°/30 m, and the maximum build rate for rotary steerable systems is ≥15°/30 m.
Applicable Operating Conditions

The XD directional series is designed for critical drilling sections such as the build-up and horizontal sections of directional wells and can be used in conjunction with downhole screw motors and other directional tools. In applications such as coal mine gas drainage boreholes and highly challenging, long-reach wells, this drill bit series has consistently delivered outstanding performance, achieving single-trip penetration and rapid rate-of-penetration.
