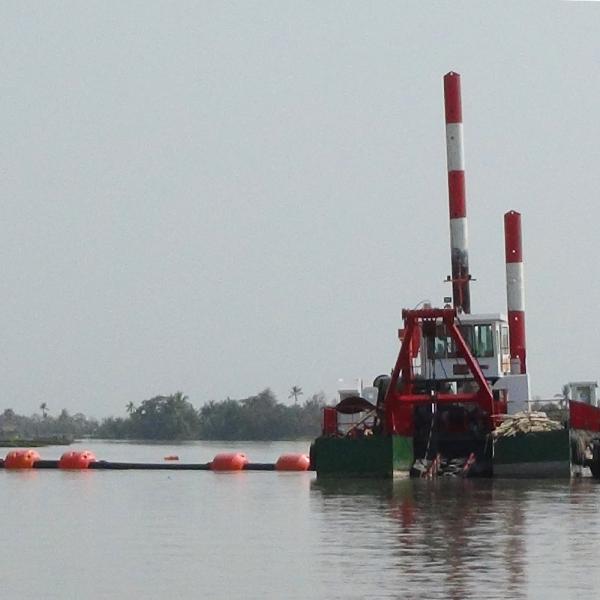

6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
Specifications
Brand Name :
JIN MENG
Model Number :
JMD650
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$800000-$1400000
Payment Terms :
,T/T
Supply Ability :
10sets/year
Delivery Time :
120days
Packaging Details :
Bulk
Name :
Heavy type diesel power sand suction dredger
Type :
Sand suction dredger
Sand Pump :
530WN
PLC Brand :
SIEMENS
Side Plate Thickness :
6-25mm
Spud Length :
Up to 25m
Draft :
1.2m
Output Distance :
3000m
Sand Pump Brand :
Shijiazhuang Industrial Factory
Equipment Weight :
290 tons
Description
6000m³ 26inch Heavy Type Diesel Engine Power Sand Suction Dredger With Cutter Head
Product Specifications
Attribute Value
Name Heavy type diesel power sand suction dredger
Type Sand suction dredger
Sand Pump 530WN
PLC Brand SIEMENS
Side Plate Thickness 6-25mm
Spud Length Up to 25m
Draft 1.2m
Output Distance 3000m
Sand Pump Brand Shijiazhuang Industrial Factory
Equipment Weight 290 tons
Product Overview
Weifang Jin Meng Dredger Co., Ltd. is recognized for its strong technical expertise, high-quality heavy type diesel power sand suction dredgers, and excellent after-sales service. Our products serve domestic markets across multiple provinces and international markets including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, and more.
Our company features a professional R&D department, CAD design center, quality control department, and after-sales service team. With over 500 employees, including senior engineers, designers, and quality control specialists, we maintain rigorous standards in dredger manufacturing.
Technical Specifications
Model JMD650 Heavy Type Diesel Power Sand Suction Dredger
Dredging Pump 650mm discharge pipe diameter
Head 65m
Max. Working Capacity 1100m³/h
Discharge Distance 4000m
Dredging Depth 18m
Diesel Engine 1885KW Mitsubishi
Hydraulic Auxiliary Engine 522KW Cummins
Emergency Generator 30KW WEICHAI
Total Power 2437KW
Oil Consumption 365L/H
Hull Dimensions (LOA×W×D) 50m × 8.8m × 2.5m
Features and Applications
This heavy type diesel power sand suction dredger is equipped with horizontal shifting devices, cutter ladder lifting systems, spud devices, and deck crane. It can be customized with anchoring poles and trolley systems for enhanced functionality.
Primary applications include river dredging, desilting, channel reclamation, and sand extraction in rivers, saltwater, or calm sea conditions.
Customization Options
  • Anchor booms installation
  • Spud carriage installation
  • 5-anchor system for improved balance
  • Hydraulic spud flat down system for safe transport
  • Additional underwater dredging pump for increased depth (20-30m)
  • Booster station for extended discharge distance
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
Road transportation by trucks
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
JMD650 Heavy type diesel power sand suction dredger working site
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
Heavy type diesel power sand suction dredger installation and training
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
Welcome to visit our factory for more details
6000m3 26inch Heavy Type Diesel Dredges With Cutter Head Customized
