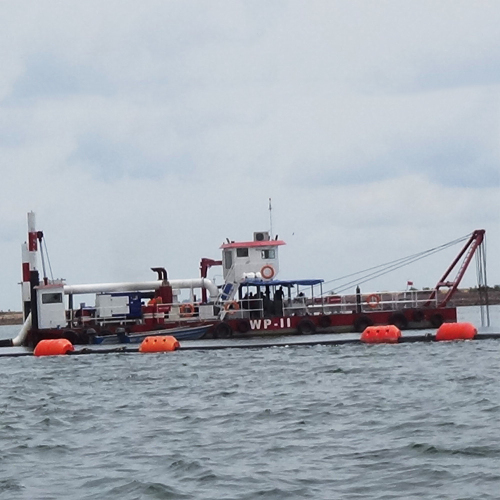

River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
Specifications
Brand Name :
JIN MENG
Model Number :
JMD450
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$500000-$800000
Payment Terms :
T/T
Supply Ability :
10sets/year
Delivery Time :
30days
Packaging Details :
Bulk
Name :
River port desilting cutter suction dredger
Type :
Cutter suction dredger
Power Source :
Diesel
Fuel Tank Capacity :
Up to 1000 liters
Discharge Diameter :
Up to 500 mm
Discharge Distance :
Up to 2000 meters
Dredging Depth :
Up to 12 meters
Control System :
Remote control
Suction Diameter :
Up to 550 mm
Dredging Pump Type :
Shijiazhuang
Description
River Port Desilting Cutter Suction Diesel Dredges 2500m³ 18inch
Product Specifications
Name River port desilting cutter suction dredger
Type Cutter suction dredger
Power Source Diesel
Fuel Tank Capacity Up to 1000 liters
Discharge Diameter Up to 500 mm
Discharge Distance Up to 2000 meters
Dredging Depth Up to 12 meters
Control System Remote control
Suction Diameter Up to 550 mm
Dredging Pump Type Shijiazhuang
Product Overview
The 2500m³ 18inch River Port Desilting Cutter Suction Dredger with Diesel Engine is a high-performance dredging solution designed for efficient sediment removal in river and port environments. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this equipment combines robust construction with advanced dredging technology.
Key Features
  • Available in self-propelled or non-self-propelled configurations
  • Modular, box-like hull structure for easy transportation and assembly
  • Flexible power options: electric system or diesel engine driving system
  • Efficient cutter head design for optimal sediment cutting and slurry creation
  • Comprehensive hydraulic system with international components
  • Advanced SIEMENS PLC operating system for precise control
Technical Specifications (JMD450 Model)
Dredging Pump Shijiazhuang
Discharge Pipe Diameter 450mm
Head 55m
Max. Working Capacity 400m³/h
Discharge Distance 1500m
Dredging Depth 12m
Diesel Engine 746KW Cummins
Emergency Generator 16KW WEICHAI
Total Power 762KW
Oil Consumption 115L/H
Hull Dimensions (L×W×D) 37m × 6.9m × 1.8m
Cutter Head Φ1500mm crown-like, 100KW power
Applications
This cutter suction dredger is specifically designed for:
  • River dredging and desilting operations
  • Channel maintenance and deepening
  • Land reclamation projects
  • Sand dredging in rivers, brackish water, and calm sea conditions
Operation Process
The dredger operates by cutting underwater sediment with its rotating cutter head, creating a slurry mixture that is pumped through the discharge pipeline to the designated disposal area. The complete system includes traversing devices, cutter ladder lifting mechanisms, spuds, and deck cranes for comprehensive operation control.
Product Gallery
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
Manufacturing Facility
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
JMD450 Dredger Working Site
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
Dredging Operation Detail
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
Installation Procedure
River Port Desilting Cutter Suction Diesel Dredges 2500m3 18inch
Operator Training
