2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
Specifications
Brand Name :
JIN MENG
Model Number :
JMD450
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Price :
$300000-$500000
Payment Terms :
T/T
Supply Ability :
20sets/year
Delivery Time :
30days
Packaging Details :
Bulk
Name :
18inch Cutter Head River Sea Dredger Machine
Type :
Cutter suction dredger
Pump Size :
300WN
Testing :
Empty Running Before Ex-factory
Suction Pump Brand :
Shijiazhuang
Generator Sets :
Cummins with Stanford
Cutter Teeth Quantity :
40-60 Pieces
Fuel Consuption :
115L/H
Application :
River sea Dredging
Steel Plate Type :
Marine Steel
Description
2500m³ 18inch Cutter Head River Sea Dredger Machine Driven By Diesel Power
Product Specifications
Name 18inch Cutter Head River Sea Dredger Machine
Type Cutter suction dredger
Pump Size 300WN
Testing Empty Running Before Ex-factory
Suction Pump Brand Shijiazhuang
Generator Sets Cummins with Stanford
Cutter Teeth Quantity 40-60 Pieces
Fuel Consumption 115L/H
Application River & Sea Dredging
Steel Plate Type Marine Steel
Product Overview

The 2500m³ 18inch Cutter Head River Sea Dredger Machine is a hydraulic controlled, assembling cutter suction dredger designed for river channel dredging, canal and water storage applications. The dredging devices are hydraulically driven with centralized control for efficient operation.

Manufacturer Profile

Weifang Jin Meng Dredger Co., Ltd. is a specialized manufacturer of cutter head river sea dredger machines located in Qingzhou, Shandong Province, China. With strong technical expertise and commitment to quality, our products are recognized both domestically and internationally, with exports to countries including India, Iran, Oman, UAE, Argentina, Colombia, Saudi Arabia, and more.

Technical Specifications
Dredging Pump Shijiazhuang
Discharge Pipe Diameter 450mm
Head 55m
Max Working Capacity 400m³/h
Discharge Distance 1500m
Dredging Depth 12m
Diesel Engine 746KW Cummins
Emergency Generator 16KW Weichai
Total Power 762KW
Oil Consumption 115L/H
Hull Dimensions (L×W×D) 37m × 6.9m × 1.8m
Hydraulic System Components Vickers (USA), SAI (Italy), Rexroth (Germany)
Operating System SIEMENS PLC (Germany)
Cutter Head Specifications Crown-like Φ1500mm, 100KW power
Design Features
  • Modular design with three pontoons for easy assembly/disassembly
  • Dismountable operator cabin for bridge clearance during maneuvering
  • Transportable by truck or train for long-distance relocation
  • Hydraulic-driven cutter with oil lubrication and sealing system
  • Suitable for dredging various soil types including fine sand, clay, silt, and coarse sand
  • Full steel welded hull with specially designed connecting pieces
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
Manufacturing Facility
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
Transportation by Truck
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven

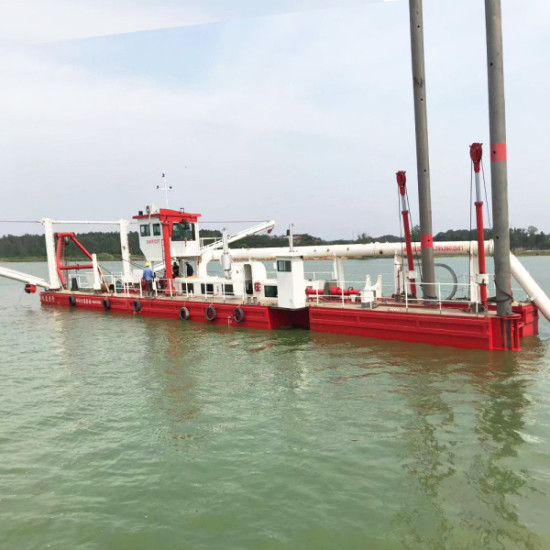

Dredger in Operation
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
Detailed Operation View
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
Installation & Training
2500m3 18inch Cutter Head River Sea Dredger Machine Hydraulically Driven
Technical Support Team
