Specifications
Brand Name :
TIPTOP
Model Number :
WD-J
Certification :
API
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
2000 pieces per month
Delivery Time :
3~20 days
Packaging Details :
Wooden case packing
Product Name :
Catchall fisher
Usage :
Cutter tool
Model :
WD-J
Colour :
As required
Material :
Steel
Description

API oilfield cementing tools - Mechanical External Cutter Type WD-J

Introduction:

Mechanical external cutter is a kind of cutting tool to cut drill rod,casing and tubing of different specifications outside the pipe wall.

Often connected to the washover pipe, Model “WD-J” Mechanical External Cutter can cut off and recover the pipe quickly and effectively, and is suitable for externally cutting drill pipe, casing, tubing and the like. It is spring fed automatically so that it can avoid the cutter breakdown which may be resulted from the larger pulling force.

Structure:

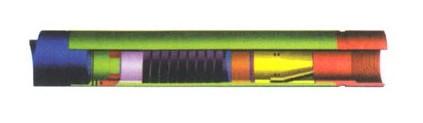

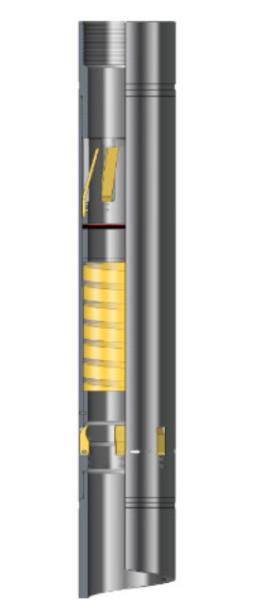

Wd-j mechanical external cutter is mainly composed of upper joint, barrel, clamping sleeve, upper thrust ring, lower thrust ring, spring, feed ring, shear pin, slide ring, cutter head, guide shoe and so on.

Product spcifications and basic parameters:

No. Model O.D. mm(in) I.D. mm(in) Min. hole dia. mm(in) Max. Fish dia. mm(in) Dia. of the cut pipe mm(in) Shear pin shearing force KN
1 WD-J58 58(2 5/16) 41(1 5/8) 62(2 7/16) 39.4(1 9/16) 33.4(1 5/16) 9
2 WD-J98 98(3 7/8) 78(3 1/8) 105(4 1/8) 78(3 1/16) 60(2 3/8) 9
3 WD-J114 114(4 1/2) 82(3 1/4) 120.6(4 3/4) 79(3 1/8) 60(2 3/8) 9
4 WD-J119 119(4 11/16) 98(3 7/8) 125.4(4 15/16) 95(3 3/4) 73(2 7/8) 11
5 WD-J143 143(5 5/8) 111(4 3/8) 146.2(5 7/8) 108(4 1/4)

52(2 1/16)

89(3 1/2)

 11
6 WD-J149 149(5 7/8) 117(4 5/8) 155.6(6 1/8) 114(4 1/2)

60(2 3/8)

89(3 1/2)

 11
7 WD-J154 154(6 1/16) 124(4 7/8) 158.8(6 1/4) 120(4 3/4)

60(2 3/8)

101(4)

 14
8 WD-J194 194(7 5/8) 162(6 3/8) 209.5(8 1/4) 159(6 1/4)

89(3 1/2)101(4)

114(4 1/2)127(5)

 14
9 WD-J206 206(8 1/8) 168(6 5/8) 219(8 5/8) 165(6 1/2)

101(4)

146(5 3/4)

 14
10 WD-J208 208(8 3/16) 167(6 9/16) 219(8 5/8) 165(6 1/2)

127(5)

114(4 1/2)

 14
11 WD-J214 214(8 27/64) 174(6 27/32) 225.5(8 7/8) 170(6 11/16)

127(5)

114(4 1/2)

 14
