Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Deep Well Stab In Float Shoe , Stab In Float Collar High Temperature Resistant
Specifications
Brand Name :
TIPTOP
Model Number :
Stab-in Float Collar & Float Shoe
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 pcs per month
Delivery Time :
7-30 days
Packaging Details :
seaworthy wooden box
Casing Size :
13 3/8''~24''
Connection :
BCSG
Application :
deep well, extra deep well
Feature :
High Temperature Resistance
Type :
Oilfield Cementing Tools
Description

High Temperature Resistant Stab-in Float Collar, Stab-in Float Shoe

Stab-in float shoe and float collar have the features of high-temperature, good sealed, drillability and connecting easily. It is used in general technical casing and oil-string casing, also used in deep well, extra deep well and special technology well.

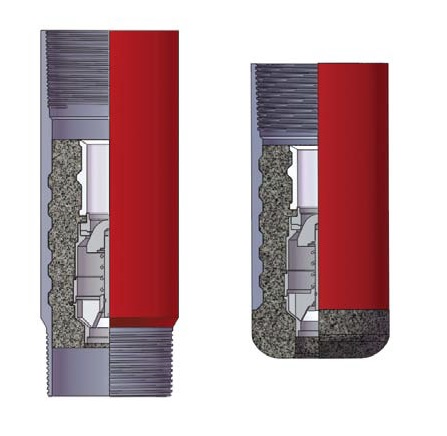

Stab-in float shoe belongs to inner string cementing range. It consists of shell, cement, self-motion grout valve, stab-in sub, O ring and stab-in pipe carrier. Its structure and operating principle are same to casing float shoes. Its feature: cementing in big diameter casing, through drill pipe inserts into the stab-in pipe carrier of stab-in shoe to achieve well cementing, This method can reduce wasting cement and avoid in using big diameter plugs in general cementing well, in order to achieve goal of economic and efficient.

For any inquiries, please feel free to contact us.

Specification

Casing Size Stab-in Float Shoe Stab-in Float Collar Connection
OD
mm (inch)		 OAL
mm (inch)		 OD
mm (inch)		 OAL
mm (inch)
13 3/8'' 365 (14 3/8) 715 (28 1/8) 365 (14 3/8) 840 (33) 13-3/8 BCSG
16'' 432 (17) 715 (28 1/8) 432 (17) 830 (32 11/16) 16 BCSG
20'' 533 (21) 780 (30 3/4) 533 (21) 840 (33) 20 BCSG
24'' 610 (24) 915 (36) 　 　 Welding type

Stab-in Sub Specification

Casing Size OD
mm (inch)		 ID
mm (inch)		 OAL
mm (inch)		 Connection
13 3/8'' Φ171.5 (6 3/4) Φ51 (2) 450 (17 23/32) NC50
20'' Φ162 (6 3/8) Φ51 (2) 450 (17 23/32) NC50
