Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Custom Casing Float Shoe , Casing Guide Shoe For Conventional Cementing
Specifications
Brand Name :
TIPTOP
Model Number :
Guide Shoe
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 pcs per month
Delivery Time :
7-30 days
Packaging Details :
seaworthy wooden box
Casing Size :
7''~20''
Connection :
BCSG
Application :
Conventional Cementing Operation
OD :
7 21/32''~21''
Type :
Oilfield Cementing Tool
Install Position :
Bottom Joint of Casing
Description

Oilfield Cementing Tool Casing Guide Shoe for Conventional Cementing Operations

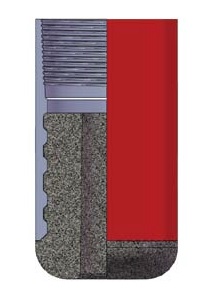

Casing guide shoe is a tapered, often bullet-nosed piece of equipment often found on the bottom of a casing string. The device guides the casing toward the center of the hole and minimizes problems associated with hitting rock ledges or washouts in the wellbore as the casing is lowered into the well. The outer portions of the guide shoe are made from steel, generally matching the casing in size and threads, if not steel grade. The inside (including the taper) is generally made of cement or thermoplastic, since this material must be drilled out if the well is to be deepened beyond the casing point. It differs from a float shoe in that it lacks a check valve.

A guide shoe is installed on the bottom joint of casing and is usually combined with a float collar in the casing string for conventional cementing operations. The guide shoe thru-bore allows conversion balls, tubes and debris to exit the casing without obstruction.

For any inquiries, please feel free to contact us.

Specification

Casing Size Guide Shoe Connection
OD
mm (inch)		 OAL
mm (inch)
7'' 194.5 (7 21/32) 380 (14 31/32) 7 BCSG
9 5/8'' 270 (10 5/8) 380 (14 31/32) 9 5/8 BCSG
13 3/8'' 365 (14 3/8) 380 (14 31/32) 13 3/8 BCSG
20'' 533 (21) 450 (17 23/32) 20 BCSG
