Specifications
Brand Name :
TIPTOP
Model Number :
Pressure Test Cup
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
1pc
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
1000 pcs per month
Delivery Time :
7-30 days
Packaging Details :
seaworthy wooden box
Casing Size :
4 1/2''~20''
Connection :
API
Application :
Casing Pressure Test
Working Pressure :
35-70 MPa
Type :
Oilfield Cementing Tool
Feature :
Convenient Operation
Description

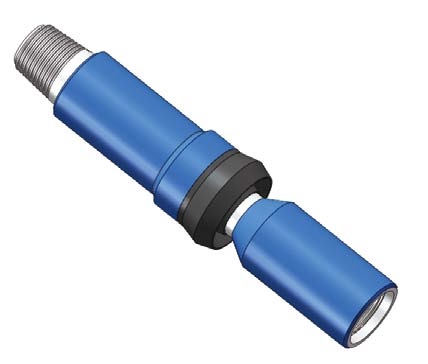

Oilfield Cementing Tool Casing Pressure Test Cup for 4 1/2''~20'' Casing

The pressure test cup is mainly used for casing pressure test. Where the cased oil, gas and water wells of the wellhead equipment have been installed, the casing and the blowout preventer group can be subjected to one-time layered pressure test, and it can also be used for the pressure test of the casing of the mine pipe station. As long as the test cup is inserted into the casing, the pressure test operation is very convenient.

For any inquiries, please feel free to contact us.

Specification

Connection Casing Size OAL
mm (inch)		 Working Pressure
(Mpa)
OD
mm (inch)		 WT
mm (inch)
NC26 114.3(4 1/2) 7.37 (37/128) 651 (25 5/8) 35-70
6.35 (1/4)
5.21 (105/512)
NC31 139.7(5 1/2) 9.17 (185/512) 660 (26) 35-70
7.72 (39/128)
6.20 (125/512)
NC38 177.8(7) 10.36 (209/512) 710 (28) 35-70
8.05 (81/256)
5.87 (59/256)
NC50 244.5(9 5/8) 13.84 (279/512) 787 (31) 35-70
11.05 (223/512)
8.94 (45/128)
NC50 273(10-3/4) 17.07 (43/64) 815 (32 1/16) 35-70
15.11 (609/1024)
10.16 (205/512)
NC50 339.7(13-3/8) 12.21 (123/256) 815 (32 1/16) 35-70
10.90 (55/128)
9.65 (389/1024)
8.38 (169/512)
NC50 406.4(16) 16.66 (21/32) 900 (35 1/2) 35-70
12.57 (507/1024)
NC50 473.1(18-5/8) 11.05 (223/612) 935 (36 7/8) 35-70
NC50 508(20) 16.13 (325/512) 980 (38 5/8) 35-70
12.70 (1/2)
11.13 (449/1024)
