Specifications
Brand Name :
TIPTOP
Model Number :
WD-S series
Certification :
API
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
2000 pieces per month
Delivery Time :
3~20 days
Packaging Details :

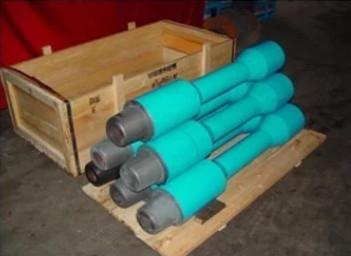

Wooden case packing
Product Name :
Hydraulic external cutter
Usage :
Cutter tool
Model :
WD-S series
Colour :
As required
Material :
Steel
Description

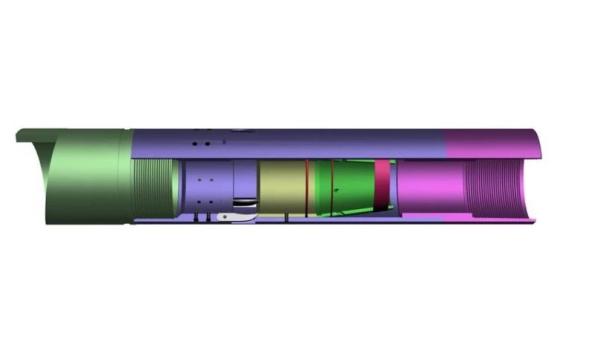

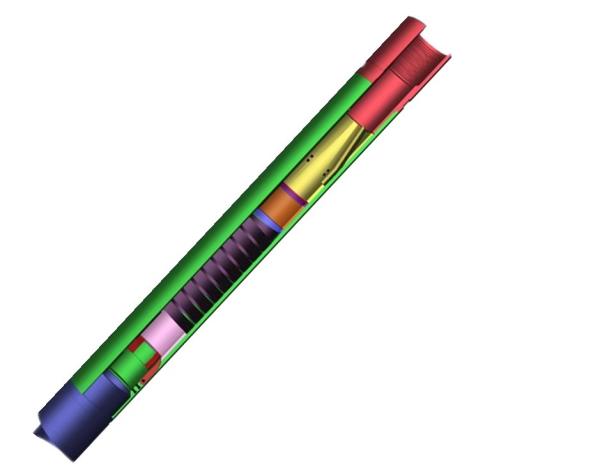

API oilfield cementing tools - Hydraulic external cutter type WD-S

Introduction:

Name:Hydraulic external cutter


Purpose:Hydraulic external cutter is a kind of cutting tool,using the promotion of hydraulic pressure to cut drill rod,casing and tubing and different specifications outside the pipe wall and fishing the cut string by the claw formed by the blades of cutter.

Hydraulic External Cutter is a kind of cutting tool which often connects with washover, using the promotion of hydraulic pressure to cut drill rod, casing and tubing of different specifications from outside to inside which As result of the promotion of water power, the cutter may cut fishes in a more flexible way while circulating. In such a case, it is helpful to avoid stuck, and it can pull the fishes out of the well at the same time.

Features:

The Hydraulic External Cutter is simple in structure, safe and reliable in use, stable cutting, easy to control, high-efficiency performance. It is not only able to cut smooth pipe string, but also to cut it in excess of joint in flexible way.

Product spcifications and basic parameters:

No. Specifications External diameter mm Internal diameter mm Minimum hole diameter mm Cut pipe diameter mm Shear pin shearing force KN
1 WD-S95 95 73 111.13 33.34-52.39 9
2 WD-S103 103 81 120.65 33.34-60.33 9
3 WD-S113 113 92 130.18 49.21-73.03 9
4 WD-S119 119 98 136.53 49.21-73.03 11
5 WD-S143 143 109.5 158.75 52.39-101.6 11
6 WD-S154 154 124 168.28 60.33-101.6 14
7 WD-S204 204 165 215 88.9-127 14
8 WD-S210 210 171 219 88.9-127 14
