Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Round Black Rubber Casing Thread Protector Quick Operation For Well Cementing
Specifications
Brand Name :
TIPTOP
Model Number :
All specifications
Certification :
Inspection Certificate
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000 pcs per month
Delivery Time :
3~20 days
Packaging Details :
Iron Frame Packaging
Product Name :
Quick-operating Thread Protector
Material :
Rubber
Standard :
API
Processing :
Forging
Specification :
All specifications
Machine Type :
Well cementing tool
Colour :
Black
Shape :
Round
Description

All specifications Quick-operating rubber casing Thread Protector according to API standard

Introduction:

Name: Quick-operating Thread Protector
Specifications: All specifications
Remarks: size and connection Pls note special requirement

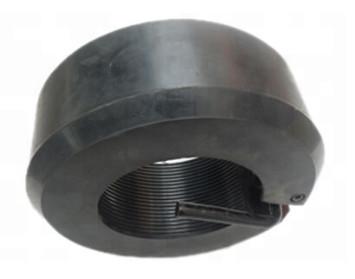

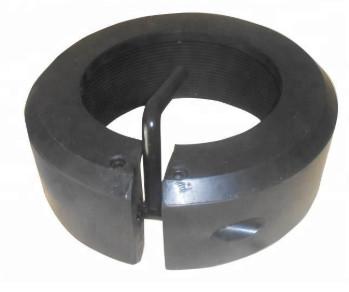

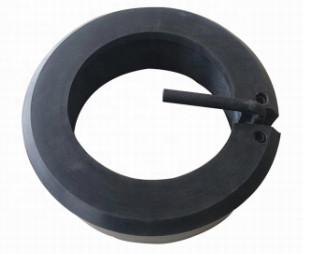

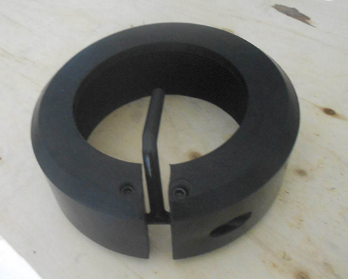

1.The Quick-operating Thread Protector is one kind of manually-operated device for protecting external pin-end threads on casing. It is simple, tough and secure, The fast and easy operation of Quick-operating Thread Protectors saves casing screw time, saves rig time and saves your money.

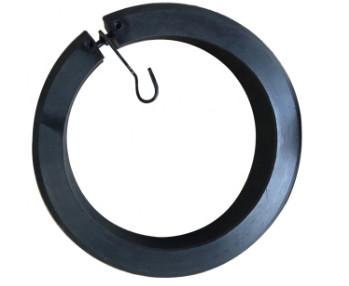

2.The Quick-operating Thread Protector consists of a high strength spring-steel band molted inside strong, abrasion-resistant rubber. An adjustable cam-type latch assembly is incorporated for manual locking and unlocking of the protector. To operate the Quick-operating Thread Protector, place the protector on the pin-end threads of pipe, push the handle firmly toward the center of the pipe and the locking action securely closes it in place. Pull the handle out to release.

Specifications:

Type OD mm(inch) Connection Length mm(inch)
KHS 5 230(9-1/16) BCSG,LCSG 125(4-15/16)
KHS 5-1/2 235(9-1/4) BCSG,LCSG 125(4-15/16)
KHS 7 275(10-13/16) BCSG,LCSG 125(4-15/16)
KHS 9-5/8 335(13-3/16) BCSG,LCSG 145(5-45/64)
KHS 10-3/4 362(14-1/4) BCSG,?CSG 115(4-9/16)
KHS 13-3/8 425(16-47/64) BCSG,?CSG 115(4-9/16)
KHS 16 500(19-11/16) BCSG,CSG 125(4-15/16)
KHS 18-5/8 565(22-1/4) BCSG,CSG 125(4-15/16)
KHS 20 610(24) BCSG,?LCSG 145(5-45/64)
