Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD
Specifications
Place of Origin :
Shenzhen ,China
Brand Name :
HD , OEM
Certification :
CE
Model Number :
HD2105B
MOQ :
300pcs
Price :
Negotiation
Packaging Details :
Color Box
Delivery Time :
25-30 Days
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Color :
Gray + Red
Weight :
780g
Display :
Digital
Description

Green Backlight Mechanical Protection DMM Digital Multimeter With 20kHz Frequency Large LCD

Description :

The meter is featured with precise design , convenient operation , high performance , multi-function , a new protection holster and big LCD display .

To avoid improper operation , the current jack applies mechanical protection device . Only when you select current measurement , the mA or 20A jack is open accordingly . Otherwise this jack is closed to avoid inserting the test lead wrong .

“VΏ Hz” is equipped with PTC heat sensitive element at the input terminal and this has efficient protection for the Function / Range switch . You can select different models to measure DC V, DC A, AC V, AC A , resistance , capacitance , frequency , temperature , diode , hFE and continuity .

Quik Details :

Measuring Current Range : 200mA-20A

Measuring Voltage Range : 200mV-700V

Measuring Resistance Range : 200Ω-20MΩ

Measuring Capacitance Range : 2 nF-200uF

Frequency : 2KHz-20KHz

Temperature : -40C-1000C

Applications :


This type can be applied in engineering project , experiment test , production test , work in the open air , and electrical repairs , etc .

Specification :

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(0.8%+3)

DC current

200µA/20mA/200mA/20A

±(1.2%+2)

AC current

200µA/20mA/200mA/20A

±(1.8%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+5)

Capacitance

2 nF /20 nF/200 nF/2Uf/200uF

±(4.0%+5)

Frequency

 2KHz-20KHz ±(2.0%+5)

Temperature

 -40C-1000C ±(1.5%+15)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999

General Characteristic :

Power supply : 9V(6F 22)

Color : Ron-Gray + Red

Weight : 780g(including batteries)

Dimension : 205*100*60mm

Accessories : Test lead ,manual ,battery

Standard inner package : Color box

Standard package quality : 30 sets

Outer packing size　:47*37*48cm

Standard packing gross weight　:24.5kg

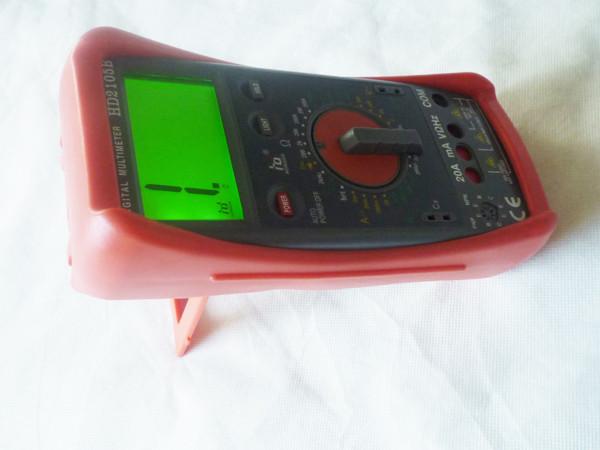

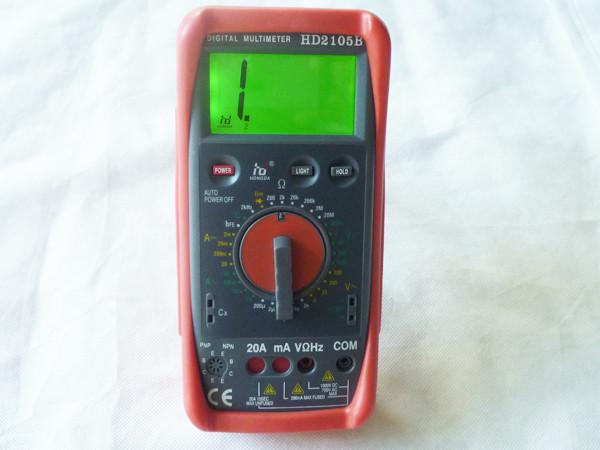

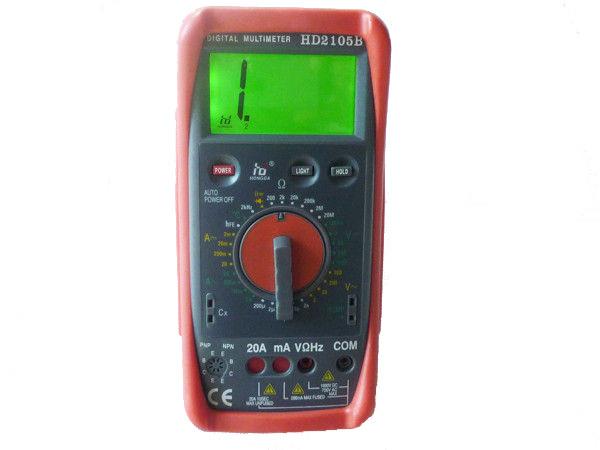

Product Pictures :
