Waterproof DMM Digital Multimeter With Diode hfE buzzer test
Waterproof DMM Digital Multimeter With Diode hfE buzzer test
Waterproof DMM Digital Multimeter With Diode hfE buzzer test
Waterproof DMM Digital Multimeter With Diode hfE buzzer test
Waterproof DMM Digital Multimeter With Diode hfE buzzer test
Waterproof DMM Digital Multimeter With Diode hfE buzzer test
Specifications
Brand Name :
HD , OEM
Model Number :
HD2105B
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Delivery Time :
25-30 Days
Packaging Details :
Color Box
LCD size :
70*48mm
Power supply :
9V
Display :
Digital
Usage :
measurement tool
Application :
industry ,familty ..
Max dispaly :
1999counts
Description

Waterproof DMM Digital Multimeter With Diode hfE buzzer test

Quik Details

Diode test / hFE test / Continuity test / Low power dispaly / Auto power off / Data holds / Backlight
3 1/2 1999counts Digital Multimeter
Measuring Voltage Range : 200mV-700V

Measuring Current Range : 200mA-20A

Measuring Resistance Range : 200Ω-20MΩ

Measuring Capacitance Range : 2 nF-200uF

Frequency : 2KHz-20KHz

Temperature : -40C-1000C

Characteristics

1). Low power consumption CMOS double integration, A/D transform integrated circuit. Auto zero calibration, Auto polarity display, Data hold, Low battery and Over-range indication.

2) DC basic accuracy: ± 0.5% (3 1/2), ± 0.05% (4 1/2).

3) Capacitance Measurement: 1pF~200uF.

4) Inductance Measurement:0. 01mH～20H.

5) Frequency measurement: 1Hz~20kHz.

6) Temperature measurement: -40°C~1000°C.

7) Test lead jack mechanical protection function and full range over-load protection function.

8) Auto power off function: The meter will shut off automatically about 15ms after power is on to avoid forgetting to turn off the meter after using it.

9) Max reading: 1999(3 1/2), 19999(4 1/2).

10) LCD display: 70X48mm big screen, high contrast,. Word height: 28mm.

11) Power: 0ne 9V battery( NEDA 1604, 6F 22 model or identical model.)

12) Low battery indication: “” will occur on the left top of the LCD.

13) Dimension: 192X88X42mm.

14) Weight: Approx 400g(including battery and holster).

15) Environmental condition:

Operation temperature: 0°C~40°C Relative humidity: <85%

Storage temperature: -10°C ~50°C Relative humidity: <85%

Specification

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(0.8%+3)

DC current

200µA/20mA/200mA/20A

±(1.2%+2)

AC current

200µA/20mA/200mA/20A

±(1.8%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+5)

Capacitance

2 nF /20 nF/200 nF/2Uf/200uF

±(4.0%+5)

Frequency

 2KHz-20KHz ±(2.0%+5)

Temperature

 -40C-1000C ±(1.5%+15)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999

General Characteristic

Power supply : 9V(6F 22)

Color : Ron-Gray + Red

Weight : 780g(including batteries)

Dimension : 205*100*60mm

Accessories : Test lead ,manual ,battery

Standard inner package : Color box

Standard package quality : 30 sets

Outer packing size　:47*37*48cm

Standard packing gross weight　:24.5kg

Accessories

1. One copy of “User’s Manual ”

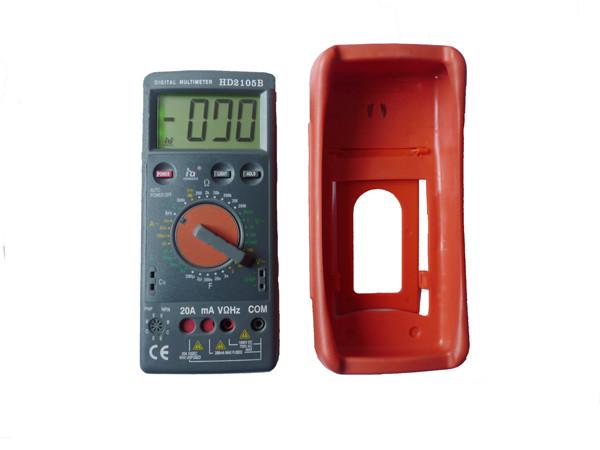

2. One holster

3. One test lead

4. One simply-fixed K- type thermocouple with a plug

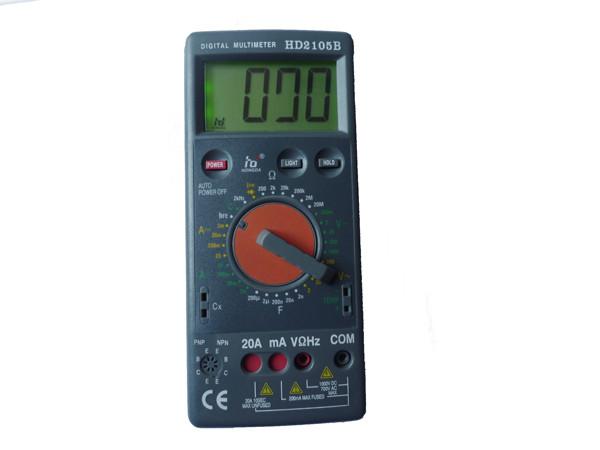

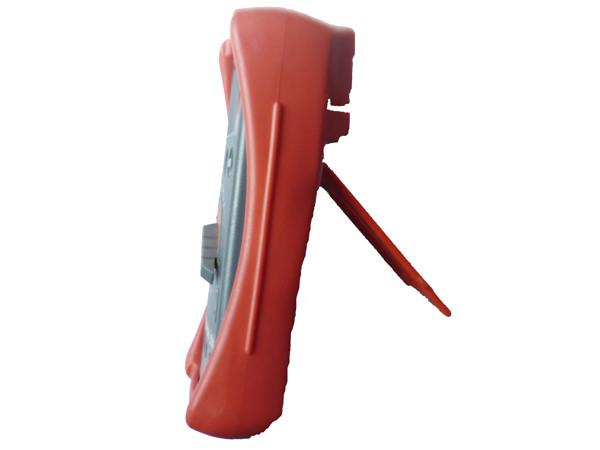

Product Pictures
