LCD Mechanical Protection DMM Digital Multimeter, Voltmeter Ammeter Ohmmeter tester
LCD Mechanical Protection DMM Digital Multimeter, Voltmeter Ammeter Ohmmeter tester
LCD Mechanical Protection DMM Digital Multimeter, Voltmeter Ammeter Ohmmeter tester
LCD Mechanical Protection DMM Digital Multimeter, Voltmeter Ammeter Ohmmeter tester
Specifications
Brand Name :
HD , OEM
Model Number :
UR8901A
Certification :
CE
Place of Origin :
China
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Delivery Time :
20-30 Days
Packaging Details :
Color Box
Description



LCD Mechanical Protection DMM Digital Multimeter, Voltmeter Ammeter Ohmmeter tester



Quik Details

Mechanical Protection DMM Digital Multimeter
Diode test / hfE test / Continuity test / Low power display / Auto power off / Data hold / Backlight
Measuring Voltage Range : 200mV-1000V
Measuring Current Range : 2mA-10A
Measuring Resistance Range : 200Ω-200MΩ
Measuring Capacitance Range : 20 nF-200 uF


Discription

UR8901A meter is a mechanical protection multimeter
Mechanical protection function :This function is applied to the current input socket to avoid improper operations. The “mA” or “10A” socket opens only when the function / power switch is set at the current test position in case the wrong test lead is inserted.
LCD Backlight: the LCD backlight is for your test convenience when the environment light is dim. But when backlight is on, the accuracy might be affected. It is not suggested to have the backlight on when doing an accurate measure.


Specification

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(1.0%+3)

DC current

2mA/20mA/200mA/10A

±(1.0%+2)

AC current

2mA/200mA/10A

±(1.2%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ

±(1.0%+2)

Capacitance

20nF/200nF/2uF/200uF

±(5.0%+3)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999




General Characteristic

Power supply : 9V(6F 22)
Color : Ron-Gray + Red
Weight : 370g(including batteries)
Dimension : 190*88*39mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 40 sets
Outer packing size　:43*32*58cm
Standard packing gross weight　:21.5kg


Applications

Apply for testing electronic Component and others



Accessories

User’s Manual x1
Warranty Card / Certification Card x1
Test Leads x1 (pair)

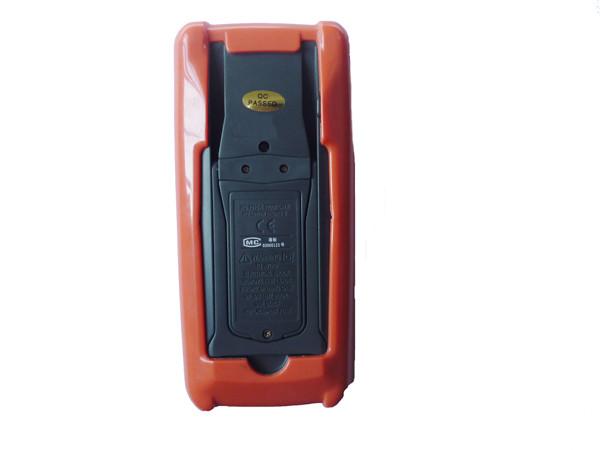

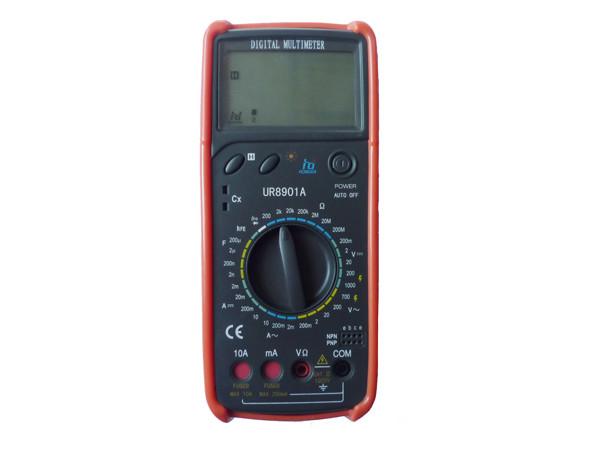

Product Pictures
