High Resolution Digital Multimeter Thermometer Capacitance Frequency
High Resolution Digital Multimeter Thermometer Capacitance Frequency
High Resolution Digital Multimeter Thermometer Capacitance Frequency
High Resolution Digital Multimeter Thermometer Capacitance Frequency
Specifications
Brand Name :
HD , OEM
Model Number :
HD2105B
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Delivery Time :
25-30 Days
Packaging Details :
Color Box
Color :
Red + Grey
Power supply :
9V
Display :
Digital
Usage :
measurement tool
Application :
industry ,familty ..
Weight :
780g
Description

High Resolution Digital Multimeter Thermometer Capacitance Frequency

Quik Details

3 1/2 Mechanical protection Digital Multimeter

Measuring Current Range : 200mA-20A

Measuring Voltage Range : 200mV-700V

Measuring Resistance Range : 200Ω-20MΩ

Measuring Capacitance Range : 2 nF-200uF

Frequency : 2KHz-20KHz

Temperature : -40C-1000C

Feature

1. Diode test

2.hFE test

3. Continuity test

4.Low power dispaly

5.Auto power off

6.Data holds

7.Backlight

Description

Newly-produced 2105/B is featured with precise design, convenient operation, high performance, multi-function, a new protection holster and big LCD display. To avoid improper operation, the current jack applies mechanical protection device. Only when you select current measurement, the mA or 20A jack is open accordingly. Otherwise this jack is closed to avoid inserting the test lead wrong. “VΏ Hz” is equipped with PTC heat sensitive element at the input terminal and this has efficient protection for the Function/Range switch. You can select different models to measure DC V, DC A, AC V, AC A, resistance, capacitance, frequency, temperature, diode, hFE and continuity. This type can be applied in engineering project, experiment test, production test, work in the open air, and electrical repairs, etc.

Specification

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(0.8%+3)

DC current

200µA/20mA/200mA/20A

±(1.2%+2)

AC current

200µA/20mA/200mA/20A

±(1.8%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+5)

Capacitance

2 nF /20 nF/200 nF/2Uf/200uF

±(4.0%+5)

Frequency

 2KHz-20KHz ±(2.0%+5)

Temperature

 -40C-1000C ±(1.5%+15)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999

General Characteristic

Power supply : 9V(6F 22)

Color : Ron-Gray + Red

Weight : 780g(including batteries)

Dimension : 205*100*60mm

Accessories : Test lead ,manual ,battery

Standard inner package : Color box

Standard package quality : 30 sets

Outer packing size　:47*37*48cm

Standard packing gross weight　:24.5kg

Applications

Apply for testing electronic Component and others ,family and industry

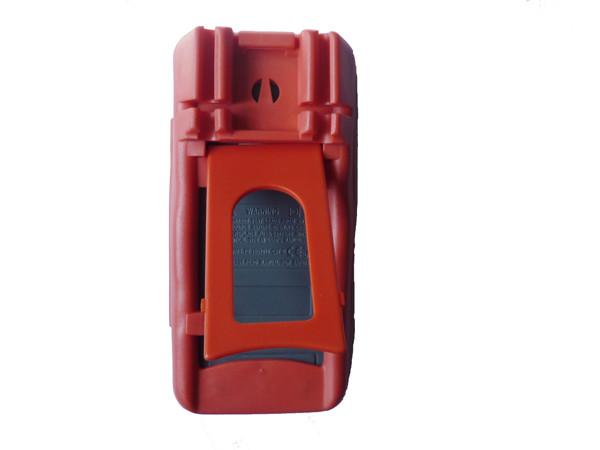

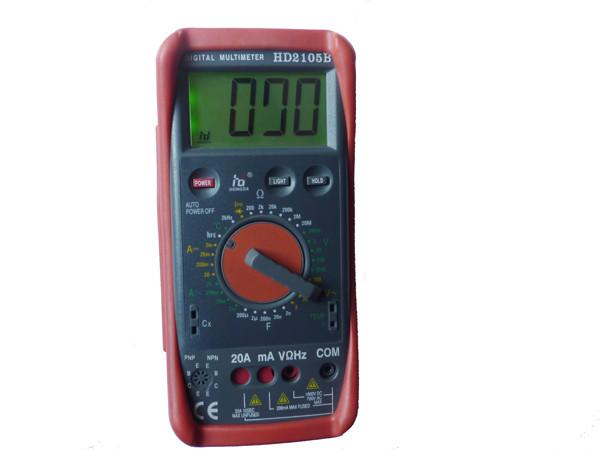

Product Pictures
