3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection
3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection
3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection
3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection
3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection
3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection
Specifications
Brand Name :
HD , OEM
Model Number :
HD2101B
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Delivery Time :
25-30 Days
Packaging Details :
Color Box
Color :
Red + Grey
Power supply :
9V
Display :
Digital
Usage :
measurement tool
Application :
industry ,familty ..
Weight :
780g
Description

3 1/2 DC AC Voltage Current Ohm Cap DMM Digital Multimeter with Mechanical Protection

Quik Details

DC Voltage 200mV/2V/20V/200V/1000V

AC Voltage 200mV/2V/20V/200V/700V

DC Current 200uA/20mA/200MA/20A

AC Current 200uA/20mA/200MA/20A

Capacitance 2nF/20nF/200nF/2uF/200uF

Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ

Specification

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(0.8%+3)

DC current

200µA/20mA/200mA/20A

±(1.2%+2)

AC current

200µA/20mA/200mA/20A

±(1.8%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+5)

Capacitance

2 nF /20 nF/200 nF/2Uf/200uF

±(4.0%+5)

Frequency

 2KHz-20KHz ±(2.0%+5)

Temperature

 -40C-1000C ±(1.5%+15)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999

General Characteristic

Power supply : 9V(6F 22)

Color : Ron-Gray + Red

Weight : 780g(including batteries)

Dimension : 205*100*60mm

Accessories : Test lead ,manual ,battery

Standard inner package : Color box

Standard package quality : 30 sets

Outer packing size　:47*37*48cm

Standard packing gross weight　:24.5kg

Applications

HD2101B is a digital multimeter with high-reliability, multi-function and stable. It can be used to measure AC voltage, DC voltage, DC current, AC current, resistance, capacitors, continuity test, temperature, frequency, diode test etc. The handle held design is the best choice for field work, laboratories, factories, and other applications.

Maintenance

HD2101B is a precise electronic multimeter. Please take care to do the maintenance well.

1). Don’t connect it to the voltage over 1000 DC V or 700 AC V.

2). Don’t forget to pull out the test lead before turning the function/range switch so as not to

damage the mechanical protection system.

3). Don’t use the meter before replacing the back cover of it.

4). Battery replacement: Pull out the test lead and turn off the power before replacing the battery.

Remove the battery screws and then detach the battery cover. Remove the battery and

replace it according to the specifications.

5). Fuse replacement: Press the Off key to turn off the instrument, and disconnect the test leads

from the input terminals. Remove the back cover screws and open the back cover. Replace

the fuse/fuses with new of the same type and rating: 0.2A / 250V.

7). Remove the battery and put it in a dry and airy place if the meter is not used for a long time.

8). Don’t change the inner circuit at will so as not to damage the meter.

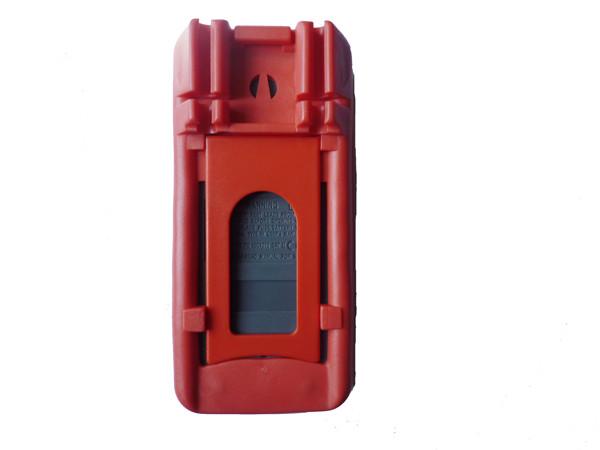

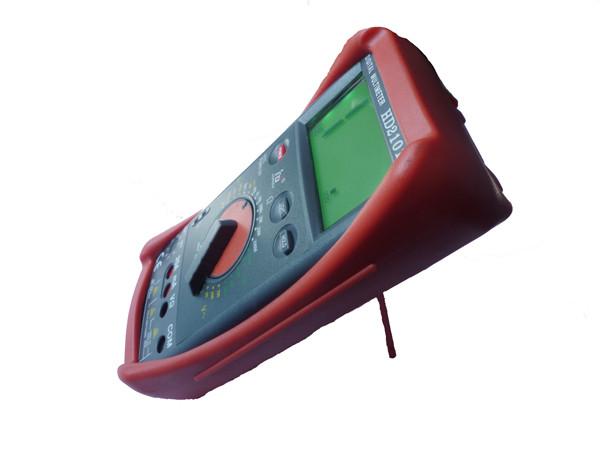

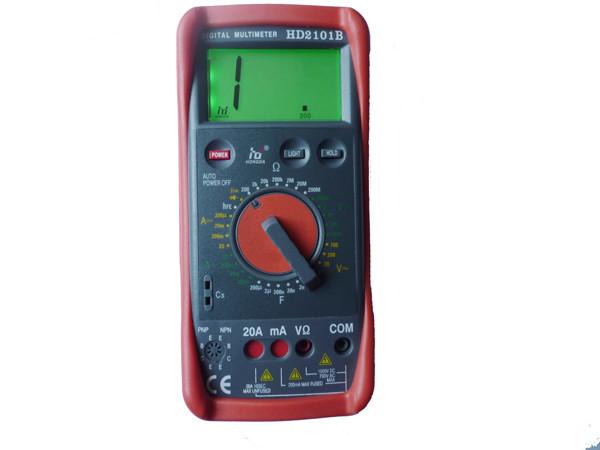

Product Pictures
