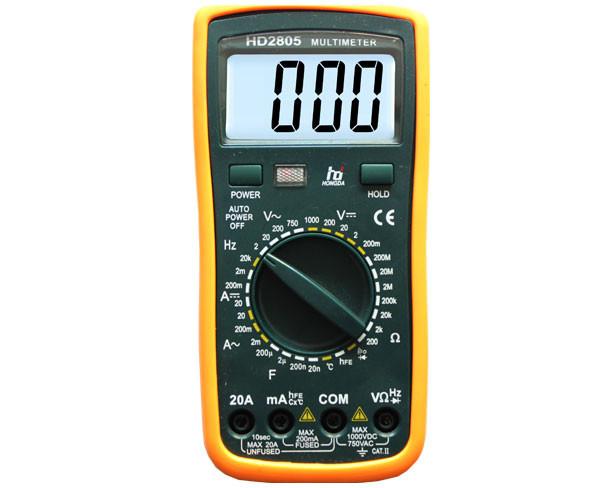

Pocket logic digital multimeter HD2805 200Ω - 200MΩ Green / Yellow

Quik Details :

Place of Origin : Shenzhen ,China

Model : HD2805

Brand Name : HD , OEM

Sound Light Alarm

Measuring Current Range : 2mA-20A

Measuring Voltage Range : 200mV-1000V

Measuring Resistance Range : 200Ω-200MΩ

Capacitance : 20nF -200uF

Weight : 350g

MOQ : 500PCS

Payment : T / T , Paypal , West Union

Description :

HD28 Series Digital Multimeter’s characteristics as following :

1. The safety standard of this series instrument : there is no additional aperture on the cover, and the safety factor is even higher between the instrument outside surface and the measurement circuit (6000V insulated intension experiment). All measurement are carried out with the test lead and jack.
2. The protection of test lead and jack : there is no fuse protection relating to the 20A heavy current test, so please operate carefully according to the manual. The other input jacks all have safeguard using the PTC thermistor or fuse. (attached with “multi-function socket”, making it convenient for the transistor hFE test,capacitance test and so on ).
3. Automatic identification and indication of misplugging the test lead:

The instrument can identify the misplugging test lead automatically: after power on, insert the test lead into the cureent input jack when the position choose is not corresponding, then, the instrument will send out wraning with hurry-continuous sound and light.

1. No need to deduct mantissa as 200MW measurement : It regards as the eaqul treatment with the other each position test when measuring the 200MW high impedance value resistance. The resistance test result needn’t deduct mantissa as the instrumen display value is zero when the instrument input terminal is in the short circuit condition.
2. Auto power off function : The instrument will power off automatically in 15 minutes after power on in order to reduce the additional consumption of the 9V battery. Please press the power switch again when needing to use it once again.
3. Instrument protection jacket : the instrument equips with flexible-plastic holster in order to reduce the damaging probability when it is fallen down carelessly. And the hloster is attached with bracket to adjust the proper angle of view.
4. Battery box : Its positive and nagetive pole must be in its own position that you can put the battery into the box easily when changing the battery. And please screw open the screw in the battery box when changing battery, and the box with battery may be up to some degree, so it is not difficult to take out the battery.

Specification :

General Characteristic :

Power supply : 9V(6F 22)

Color : Green + Yellow

Weight : 350 g(including batteries)

Dimension : 200*80*40mm

Accessories : Test lead ,manual ,battery

Standard inner package : Color box

Standard package quality : 40 sets

Outer packing size : 42*33*59cm

Standard packing gross weight : 24kg

Applications :

Apply for testing electronic Component and others
