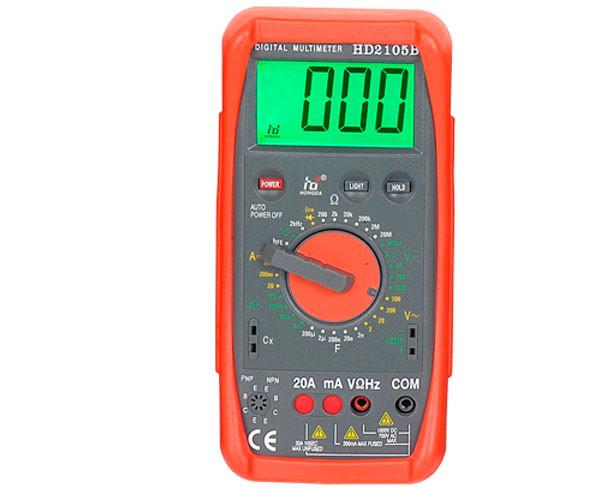

Mechanical Protection DMM digital multimeter
Mechanical Protection DMM digital multimeter
Specifications
Place of Origin :
Shenzhen ,China
Brand Name :
HD , OEM
Certification :
CE
Model Number :
HD2101B
MOQ :
300pcs
Price :
Negotiation
Packaging Details :
Color Box
Delivery Time :
25-30 Days
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Color :
Grey + Red
Weight :
780
Display :
Digital
Description


CE handheld digital multimeter auto ranging with Mechanical Protection


Quik Details :

Place of Origin : Shenzhen ,China
Model: HD2101B
Brand Name : HD , OEM
Measuring Current Range : 200mA-20A
Measuring Voltage Range : 200mV-700V
Measuring Resistance Range : 200Ω-20MΩ
Measuring Capacitance Range : 2 nF-200uF
Weight : 780g
MOQ : 300PCS
Payment : T / T , Paypal , West Union

Description :

HD-2100/B Series digital multimeter is provided with the following mechanical protection function device

The mark “●”in the above table means the socket is warded off. The black test lead won’t be obstructed from inserting into “COM” Jack. If you find the rotary switch doesn’t move, that’s because you forget to pull out the test lead. Don’t force the switch to move. You must pull out the test lead before turning the rotary switch, otherwise the meter’s mechanical protection system may be damaged.



Specification :

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(1.5%+10)

DC current

200µA/20mA/200mA/20A

±(1.2%+2)

AC current

200µA/20mA/200mA/20A

±(1.8%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+5)

Capacitance

2 nF /20 nF/200 nF/2Uf/200uF

±(4.0%+5)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999




General Characteristic :

Power supply : 9V(6F 22)
Color : Ron-Gray + Red
Weight : 780g(including batteries)
Dimension : 205*100*60mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 30 sets
Outer packing size　:47*37*48cm
Standard packing gross weight　:24.5kg


CE Certificate
