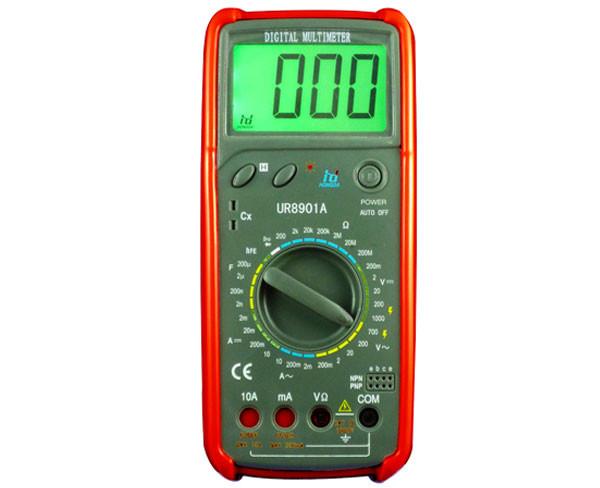

High Accurancy Multifunction rms digital multimeter UR8901A AC / DC
High Accurancy Multifunction rms digital multimeter UR8901A AC / DC
Specifications
Place of Origin :
UR
Brand Name :
HD , OEM
Certification :
CE
Model Number :
UR8901A
MOQ :
300pcs
Price :
Negotiation
Packaging Details :
Color Box
Delivery Time :
20-30 Days
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Description



High Accurancy Multifunction rms digital multimeter UR8901A AC / DC



Quik Details :

Place of Origin : Shenzhen ,China
Model : UR8901A
Brand Name : HD , OEM
Measuring Current Range : 2mA-10A
Measuring Voltage Range : 200mV-1000V
Measuring Resistance Range : 200Ω-200MΩ
Measuring Capacitance Range : 20 nF-200 uF
Weight : 370g
MOQ : 300PCS
Payment : T / T , Paypal , West Union


Features :

  • “Power / Functions / Test Range” one rotary switch operation
  • Auto polarity and “Digital / Bar graph” dual display
  • Dual slope A-D converter
  • AC/DC Amp auto selection 0.1μA-10A
  • AC/DC volt auto selection: DCV 100 μV-1000V ACV 1mV-750V
  • Resistance: 0.1Ω-32MΩ
  • Capacitance: 0.1nF-32μF
  • Diode & buzzer continuity test
  • Audion hFE test
  • Temperature: -40℃~1000℃ or -40℉～1832℉
  • Auto power off: the electrical current is below 5μA when power is off; Intelligent start-up: the electrical current is about 10μA when at work.
  • Data hold.
  • LCD backlight.


Specification :

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(1.0%+3)

DC current

2mA/20mA/200mA/10A

±(1.0%+2)

AC current

2mA/200mA/10A

±(1.2%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ

±(1.0%+2)

Capacitance

20nF/200nF/2uF/200uF

±(5.0%+3)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999




General Characteristic :

Power supply : 9V(6F 22)
Color : Ron-Gray + Red
Weight : 370g(including batteries)
Dimension : 190*88*39mm
Accessories : Test lead ,manual ,battery
Standard inner package : Color box
Standard package quality : 40 sets
Outer packing size　:43*32*58cm
Standard packing gross weight　:21.5kg


Applications :

Apply for testing electronic Component and others


WARRANTY : 12 month
