Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Automotive Pocket Electric Digital Multimeter For Commercial
Specifications
Brand Name :
HD , OEM
Model Number :
HD2101B
Certification :
CE
Place of Origin :
Shenzhen ,China
MOQ :
300pcs
Price :
Negotiation
Payment Terms :
T / T ,Paypal , West Union
Supply Ability :
1000 PCS/Week
Delivery Time :
25-30 Days
Packaging Details :
Color Box
Color :
Red + Grey
Power supply :
9V
Display :
Digital
Usage :
measurement tool
Application :
industry ,familty ..
Weight :
780g
Description

Automotive Pocket Electric Digital Multimeter For Commercial

Quik Details

AC voltage

DC voltage

resistance

AC DC current

on/off, diode

HFE ,Buzzer

Low power indication

Data holds

1999Max display

DC Voltage 200mV/2V/20V/200V/1000V

AC Voltage 200mV/2V/20V/200V/700V

DC Current 200uA/20mA/200MA/20A

AC Current 200uA/20mA/200MA/20A

Capacitance 2nF/20nF/200nF/2uF/200uF

Resistance 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ/200MΩ

Specification

Basic function

Measurement range

Basic accuracy

DC voltage

200mV/2V/20V/200V/1000V

±(0.5%+3)

AC voltage

200mV/2V/20V/200V/700V

±(0.8%+3)

DC current

200µA/20mA/200mA/20A

±(1.2%+2)

AC current

200µA/20mA/200mA/20A

±(1.8%+3)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1.0%+5)

Capacitance

2 nF /20 nF/200 nF/2Uf/200uF

±(4.0%+5)

Frequency

 2KHz-20KHz ±(2.0%+5)

Temperature

 -40C-1000C ±(1.5%+15)

hFE test

V

Diode test

V

Continuity buzzer

V

Low power display

V

Auto power off

V

Data hold

V

Backlight

V

Maximum display

1999

General Characteristic

Power supply : 9V(6F 22)

Color : Ron-Gray + Red

Weight : 780g(including batteries)

Dimension : 205*100*60mm

Accessories : Test lead ,manual ,battery

Standard inner package : Color box

Standard package quality : 30 sets

Outer packing size　:47*37*48cm

Standard packing gross weight　:24.5kg

Application

This type can be applied in engineering project, experiment test, production test, work in the open air, and electrical repairs, etc.

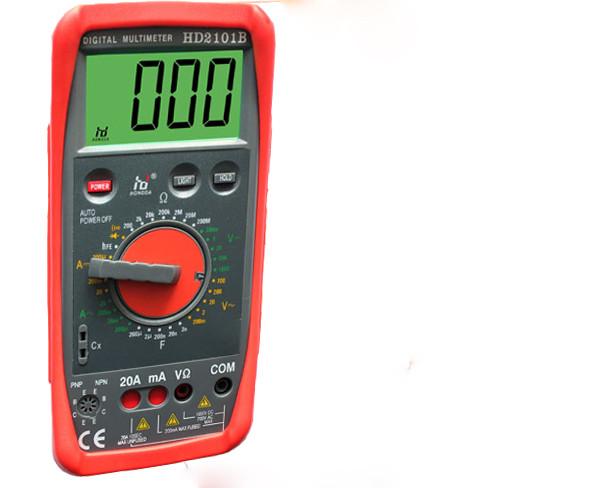

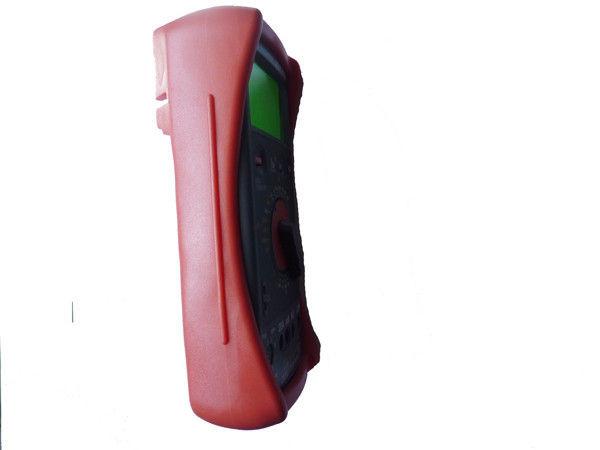

Product Pictures
