0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
Specifications
Brand Name :
HuaXin
Model Number :
HX023101A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$6~$1000
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
silicon-based display
Size :
0.23 inch
Name :
micro amoled
Resolution :
640*400
interface :
39 PINS I²C+MIPI（1/2 lane）
View angle :
all
Brightness :
300~5000
Description
0.23 Inch Small OLED Display Module 640*400 Resolution 39pins MIPI+I2C Interface 300~5000c/D
Product Attributes
Attribute Value
Display Technology silicon-based display
Size 0.23 inch
Name micro AMOLED
Resolution 640*400
Interface 39 PINS I²C+MIPI(1/2 lane)
View angle all
Brightness 300~5000
Product Description

It is a 0.23-inch single green silicon-based display module with a 640 × 400 dot matrix. This display module features high brightness, high contrast, narrow borders, wide viewing angle, wide temperature range, and low power consumption, designed for head mounted displays and AR applications.

Technical Parameters
Part No: HX023101A
Display Mode 0.23" micro OLED
Outline size(mm) 38.33×9.0
AA size(mm) 5.06×3.29
Display dots 640*400
View Angle ALL
Brightness 300~5000
Interface 39PINS I²C+MIPI(1/2 lane)

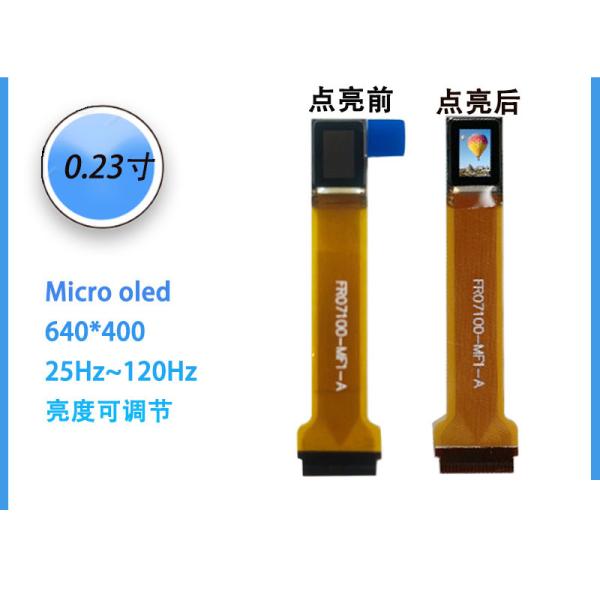

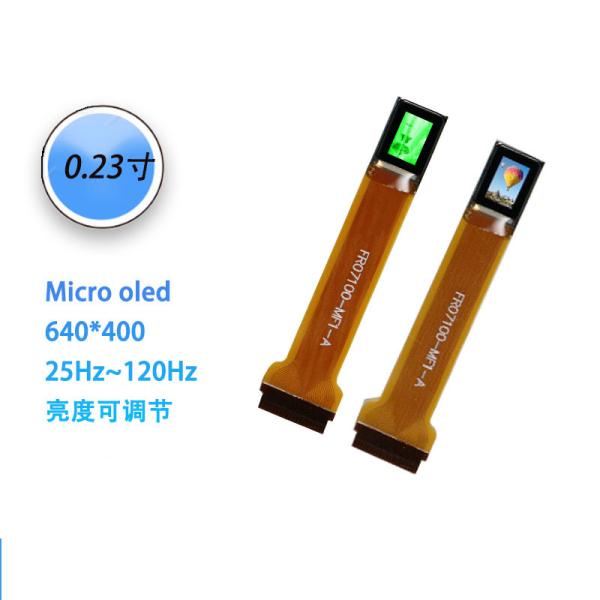

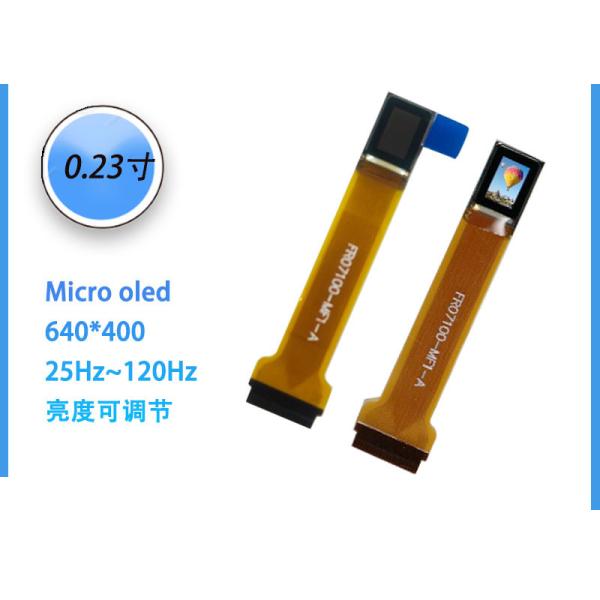

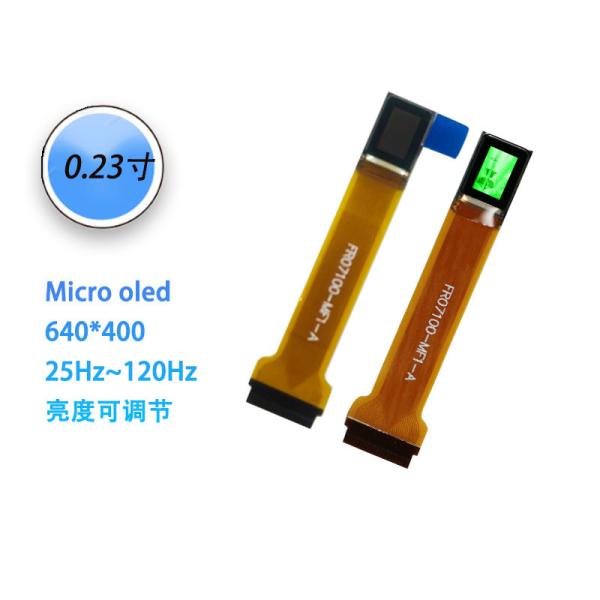

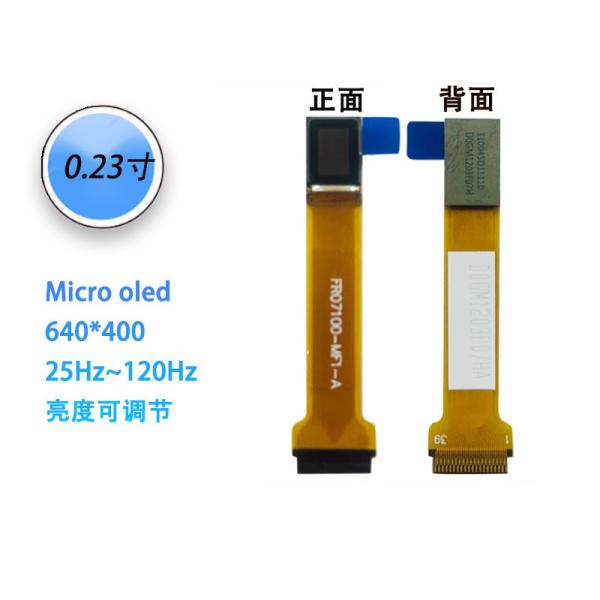

Product Images
0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D 0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D 0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D 0.23 Inch Small Oled Display Module 640*400 39pins MIPI+I2C Interface 300~5000c/D
Micro OLED Product Knowledge

Key Advantages:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits

Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product

Our Certificates: ISO14001 / ISO9001 / IATF16949 / SGS of LCD module

Company: Huaxin Technology (Enshi) Co., LTD

Location: Hubei.Enshi

Founded: 2009

Business: High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

LCD Includes: VA, TN, HTN, STN, FSTN, CSTN and other series

LCM Includes: COB, TBA, COG, TP, OLED and other series

Register Capital: Twenty million

Current Staff: 500+

R&D: Accounts for 10%

QC: Accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • VR/AR/MR headsets
  • Military / aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high

Challenges: Limited lifespan (blue OLEDs degrade faster). Higher manufacturing cost due to silicon wafer integration. Currently small sizes (not suitable for TVs).

Future of Micro OLED

Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
