Specifications
Brand Name :
HuaXin
Model Number :
HX032WEG01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$25
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
0.32 inch
Name :
Micro oled display
Resolution :
800*600
interface :
MIPID-PHY,RGB
Fieldofview :
33"(at-1 diopter)
Description
0.32 Inch Silicon Based Mini OLED Module 4K OLED Microdisplay 800×600 Resolution Self Luminous
Product Attributes
Attribute Value
Display Technology AR display
Size 0.32 inch
Name Micro OLED display
Resolution 800×600
Interface MIPI D-PHY, RGB
Field of View 33" (at -1 diopter)
Product Description

0.32-inch ultra miniature electronic viewfinder silicon-based OLED screen with 800×600 resolution and MIPI interface, suitable for cameras, telescopes, and AR glasses.

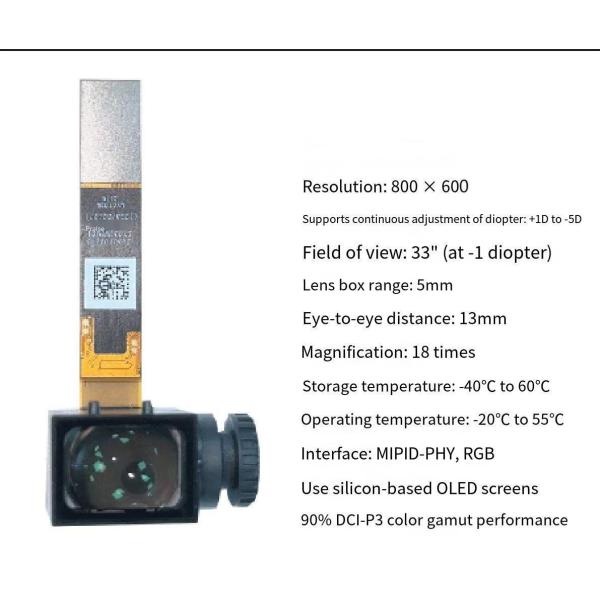

A: Technical Parameters
Parameter Value
Part No. HX032WEG01
Display Mode 0.32 inch micro OLED with board
AA Size 6.48mm × 4.86mm / 0.32" diagonal
Display Dots 800×600
Diopter Adjustment +1D to -5D
Field of View 33" (at -1 diopter)
Interface MIPI D-PHY, RGB
Testing Board 18 Times

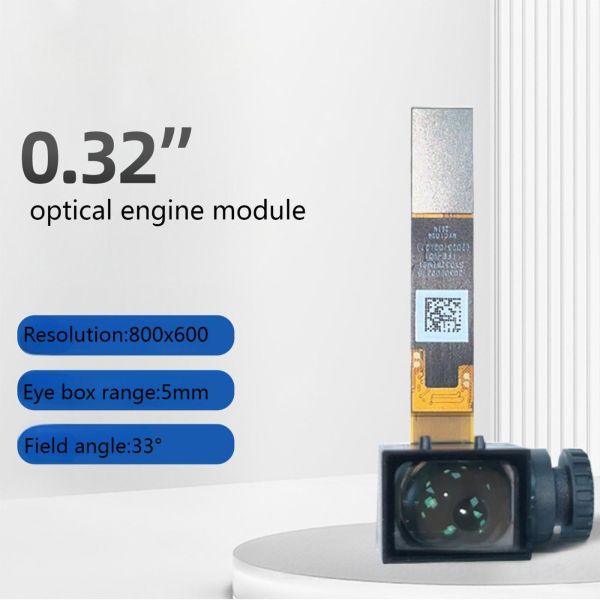

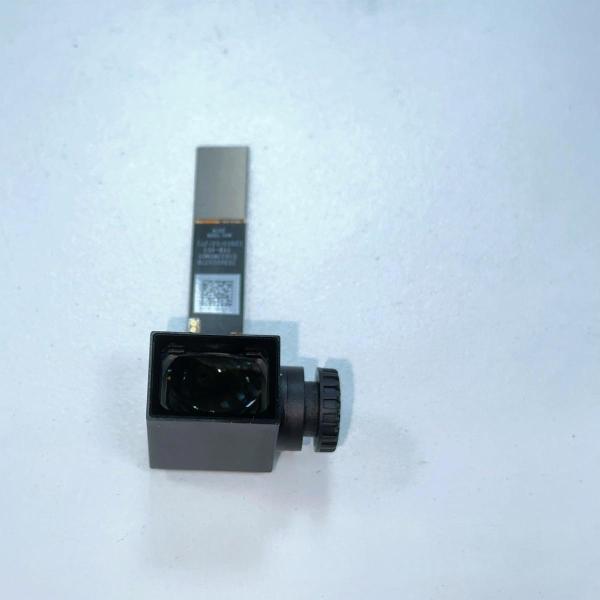

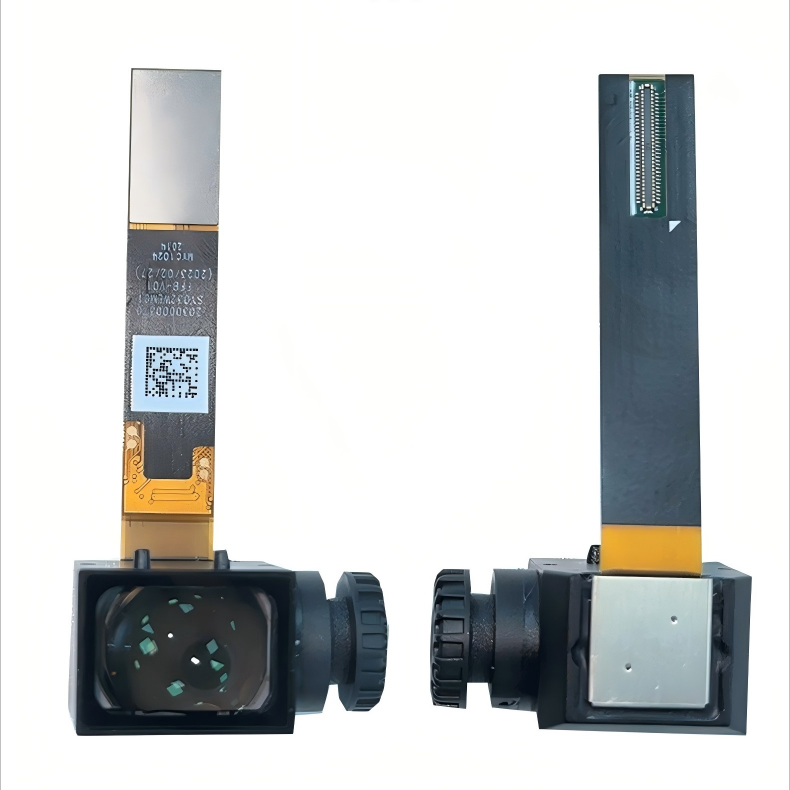

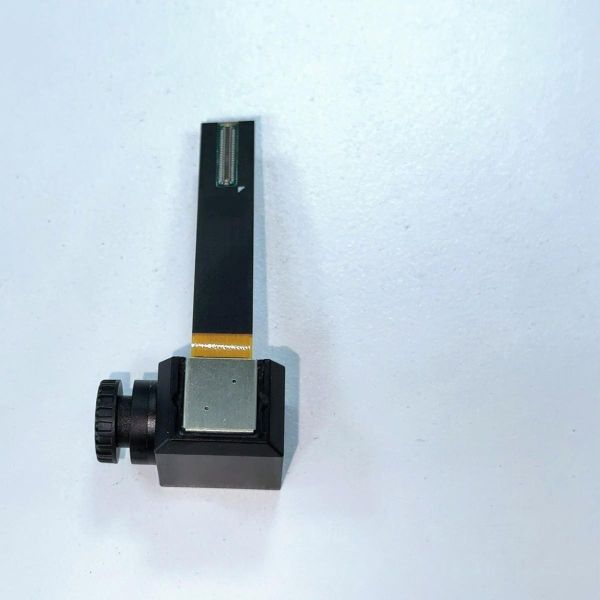

B: Product Images
0.32 Inch Silicon Based Mini Oled Module 4k Oled Microdisplay 800*600 Self Luminous 0.32 Inch Silicon Based Mini Oled Module 4k Oled Microdisplay 800*600 Self Luminous 0.32 Inch Silicon Based Mini Oled Module 4k Oled Microdisplay 800*600 Self Luminous 0.32 Inch Silicon Based Mini Oled Module 4k Oled Microdisplay 800*600 Self Luminous 0.32 Inch Silicon Based Mini Oled Module 4k Oled Microdisplay 800*600 Self Luminous

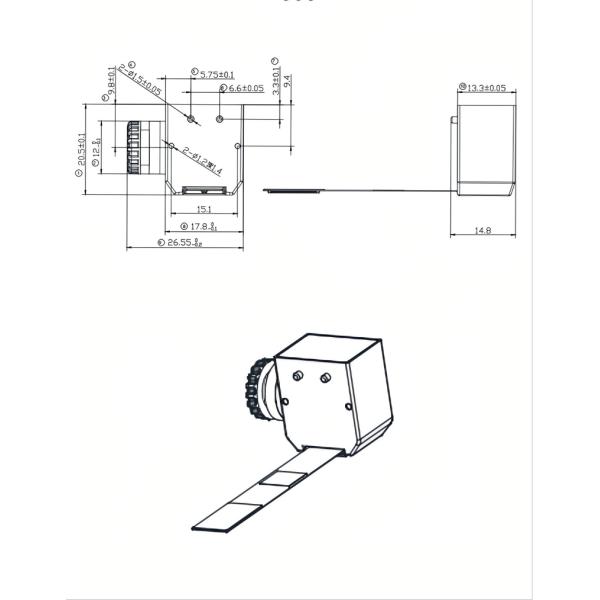

C: Drawing & Pin Definition
0.32 Inch Silicon Based Mini Oled Module 4k Oled Microdisplay 800*600 Self Luminous
D: Micro OLED Product Knowledge

Key Advantages of Micro OLED (Silicon-based OLED):

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and Compact
  • Superior Image Quality
  • Lower Power Consumption
  • Wide Operating Temperature Range
  • High Brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability Benefits

Micro OLED Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to Micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from Micro LED
E: Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who work in LCD field for more than 20 years
  • Self design for customized product

Our Certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Date of foundation: 2009
High technology enterprise mainly working on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

Product Range:

  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series

Register capital: twenty million
Current staff: 500+
R&D accounts for 10%
QC accounts for 15%

F: Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
G: Product Applications
  • VR/AR/MR headsets
  • Military/aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
H: Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED Micro LED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very High

Challenges:

  • Limited lifespan (blue OLEDs degrade faster)
  • Higher manufacturing cost due to silicon wafer integration
  • Currently small sizes (not suitable for TVs)

Future of Micro OLED:

Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
