1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
Specifications
Brand Name :
HuaXin
Model Number :
HX103WAM01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$396~$394
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
1.03 inch
Name :
Micro oled display
Resolution :
2560*2560
interface :
MIPI
View angle :
all
Brightness :
1800 C/D
testing board :
HDMI or type C optional
Description
1.03 Inch Micro OLED Display 2560×2560 Resolution 4K Level Resolution 1800cd/m² High Brightness
Product Attributes
Attribute Value
Display Technology AR display
Size 1.03 inch
Name Micro OLED display
Resolution 2560×2560
Interface MIPI
View Angle All
Brightness 1800 C/D
Testing Board HDMI or Type C optional
Product Description

1.03-inch Ultra HD Round Screen - 2560×2560 OLED Display, 1800cd/m² High Brightness, Retina-level Pixel Density, Suitable for High-end Wearables / AR Glasses

Technical Parameter
Part No HX103WAM01
Display Mode 1.03 inch micro OLED with board
AA size(mm) 18.432×18.432
Display Dots 2560×2560
View Angle ALL
Brightness 1800C/D
Interface MIPI
Testing Board HDMI or Type C optional

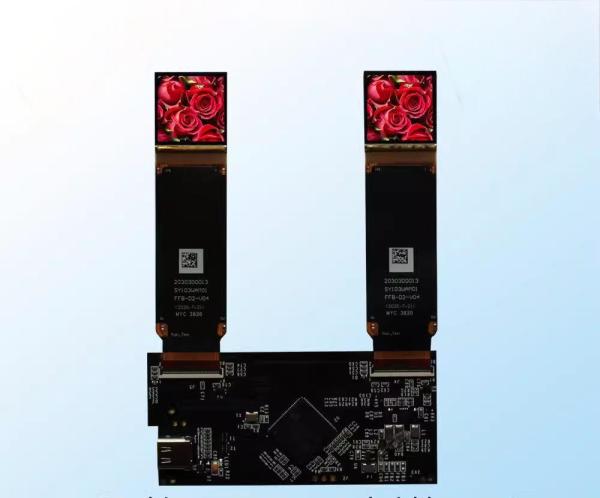

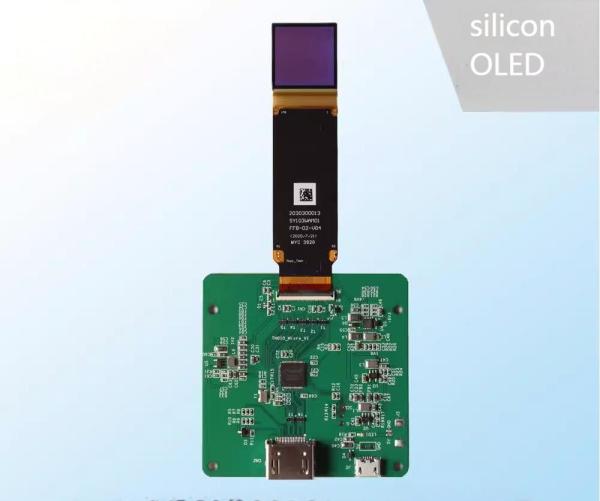

Product Images
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness 1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness 1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness 1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness 1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
Drawing & Pin Definition
1.03 Inch Micro OLED Display 2560*2560 4K Level Resolution 1800cd/M² High Brightness
Micro OLED Product Knowledge

The key advantages of Micro OLED (Silicon-based OLED) is an advanced display technology:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits

Micro OLED Disadvantages:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product

Our certificates:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co., LTD

Hubei, Enshi

Date of foundation: 2009

High technology enterprise mainly work on research and development, producing and sells LCD, LCM, TFT, backlight, OLED

LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

LCM includes: COB, TBA, COG, TP, OLED and other series

Register capital: twenty million

Current staff: 500+

R&D accounts for 10%

QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Application
  • VR/AR/MR headsets
  • Military/aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive display
  • Wearable & smart glasses
Micro OLED vs. Traditional OLED vs. Micro LED
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high

Challenges:

  • Limited lifespan (blue OLEDs degrade faster)
  • Higher manufacturing cost due to silicon wafer integration
  • Currently small sizes (not suitable for TVs)

Future of Micro OLED: Expected to dominate AR/VR and wearable displays due to unmatched pixel density.

Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this tech.
