Specifications
Brand Name :
HuaXin
Model Number :
HX057WAM01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$238~$236
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
0.57 inch
Name :
Micro oled display
Resolution :
1600*1200
interface :
MIPI
View angle :
all
Brightness :
1800 C/D
testing board :
HDMI or type C optional
Description
0.57 Inch Arduino Micro OLED Display
1600×1200 Resolution | 1800cd/m² Brightness | Low Power Consumption
Product Specifications
Attribute Value
Display Technology AR display
Size 0.57 inch
Name Micro OLED display
Resolution 1600×1200
Interface MIPI
View angle All
Brightness 1800 cd/m²
Testing board HDMI or Type C optional
Product Overview

0.57-inch ultra-miniature 1600×1200 high-definition OLED screen with 1800cd/m² high brightness, retina-level display quality. Ideal for AR glasses and wearable devices.

Technical Parameters
Part No. HX057WAM01
Display Mode 0.57 inch micro OLED with board
AA size (mm) 18.432 × 18.432
Display dots 1600×1200
View angle All
Brightness 1800 cd/m²
Interface MIPI

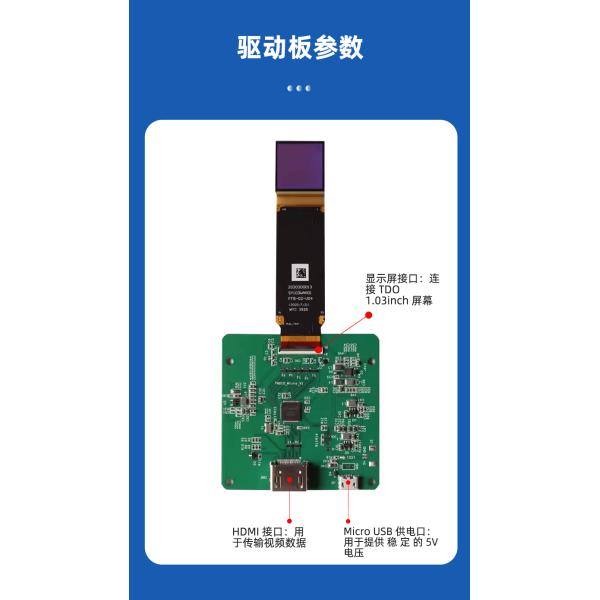

Testing board HDMI or Type C optional

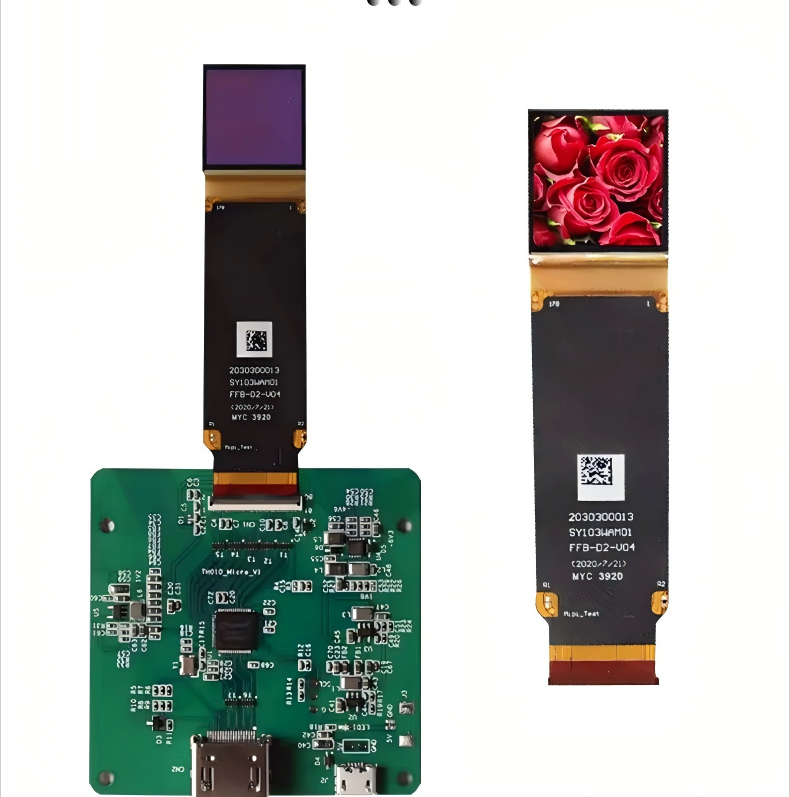

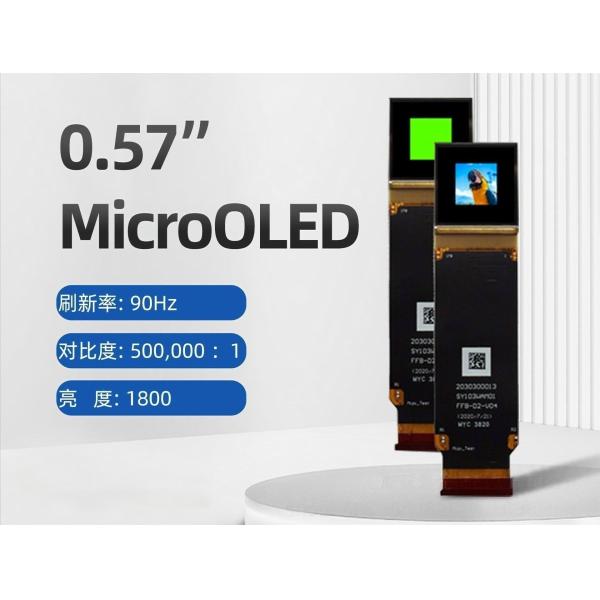

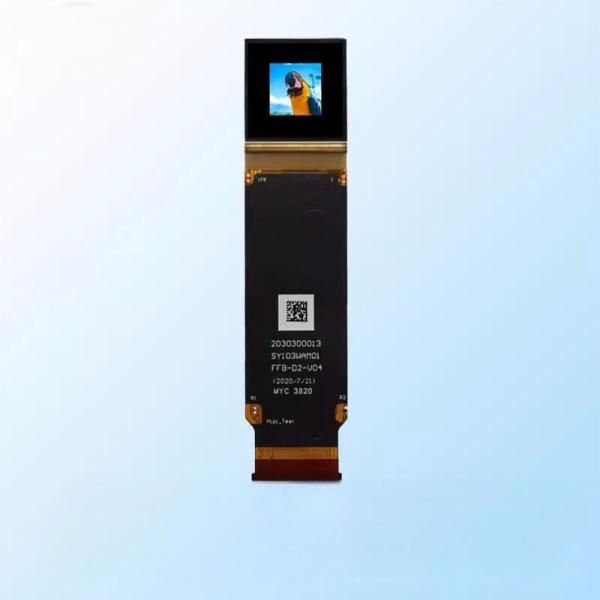

Product Images
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption

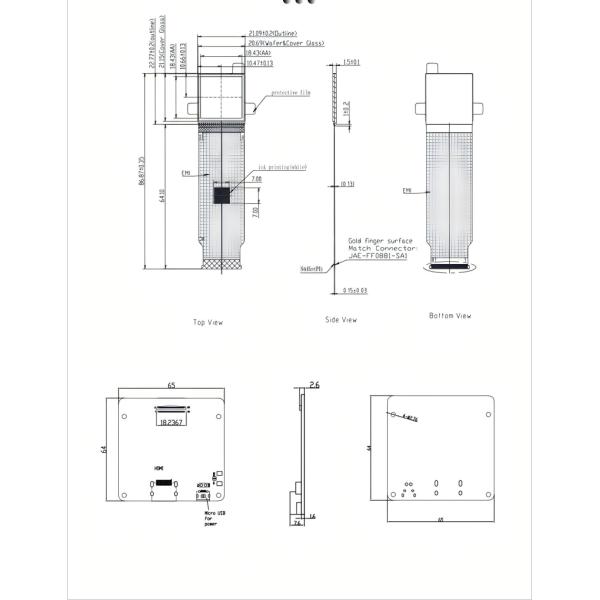

Drawing & Pin Definition
0.57 Inch Arduino Micro Oled Display 1600*1200 1800cd/M² Low Power Consumption
Micro OLED Technology
Key Advantages
  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and compact
  • Superior Image Quality
  • Lower power consumption
  • Wide operating Temperature Range
  • High brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability benefits
Limitations
  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from micro LED
Huaxin Technology Advantages
  • Factory located in cost-effective inland city
  • Most advanced equipment for stable quality
  • Most processes use fully automatic equipment for efficiency and quality
  • Professional engineers with 20+ years experience in LCD field
  • Self-design capability for customized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module
Company Profile

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
High technology enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, OLED

Product Portfolio
  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, OLED and other series
Company Statistics
  • Registered capital: 20 million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Unit
LCD Production 4.5 9 9 9 9 Thousands of logarithms/Day
LCM Production 70 150 300 450 450 Thousand pieces/Day
Backlight Production 100 200 300 500 500 Thousand pieces/Day
OLED Production 10 20 30 40 50 Thousand pieces/Day
Product Applications
  • VR/AR/MR headsets
  • Military/aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive displays
  • Wearable & smart glasses
Display Technology Comparison
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very high
Micro OLED Challenges
  • Limited lifespan (blue OLEDs degrade faster)
  • Higher manufacturing cost due to silicon wafer integration
  • Currently small sizes (not suitable for TVs)
Future Outlook

Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
