2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
Specifications
Brand Name :
HuaXin
Model Number :
HX024VGV01 - B1729A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$18.2
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AR display
Size :
2.4 inch
Name :
Micro oled display
Resolution :
540*600
interface :
SPI
View angle :
all
Brightness :
800 C/D
Description
2.4 Inch AMOLED Display Panel

60Hz Refresh Rate | 800cd/m² High Brightness | 540×600 Resolution

Product Specifications
Display Technology AR display
Size 2.4 inch
Name Micro OLED display
Resolution 540×600
Interface SPI
View Angle All
Brightness 800 C/D
Product Description

2.4-inch HD AMOLED display with 60Hz refresh rate, 800cd/m² high brightness, and 540×600 resolution. Suitable for smart wearables and handheld devices with wide color gamut display.

Technical Parameters
Part No. HX024VGV01 - B1729A
Display Mode 2.4 inch OLED with board
Active Area 36.72(W) × 49.12(H) mm
Outline Dimension 38.72(W) × 51.56(H) × 0.78(T) mm
Display Dots 540×600
View Angle All
Brightness 800 C/D

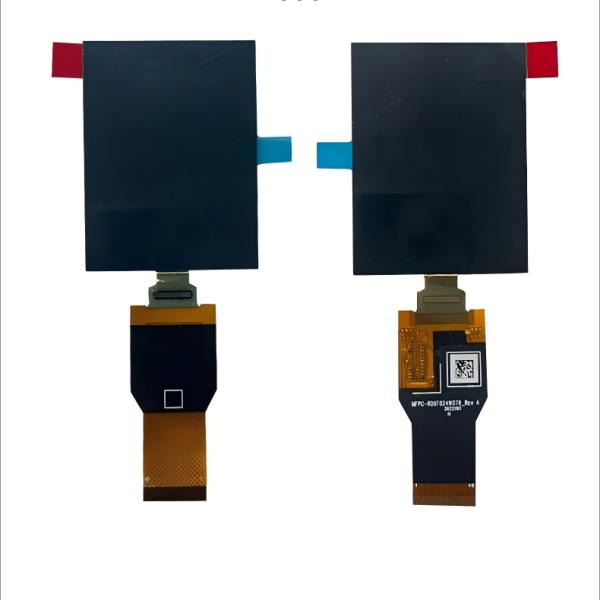

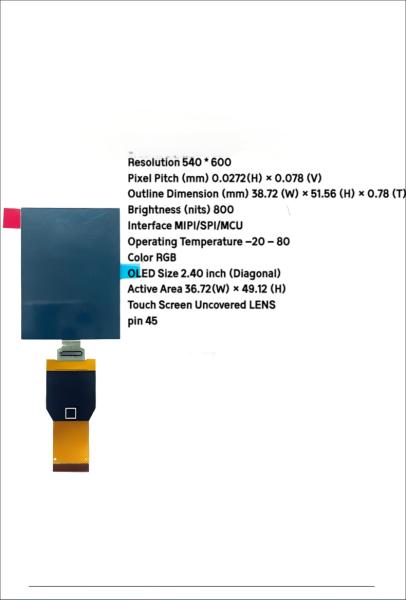

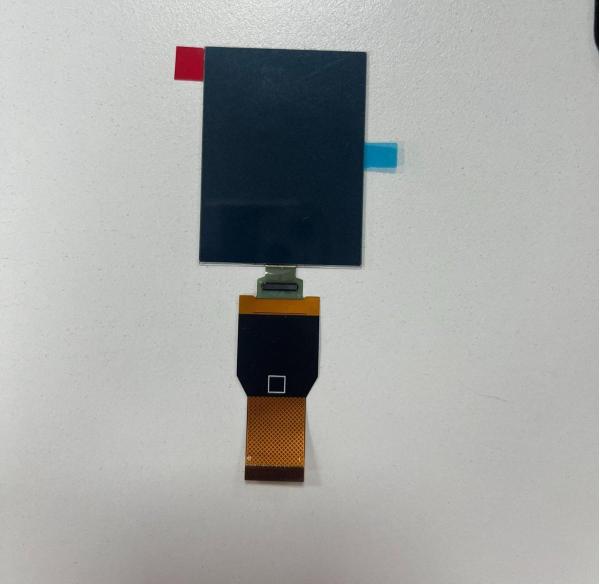

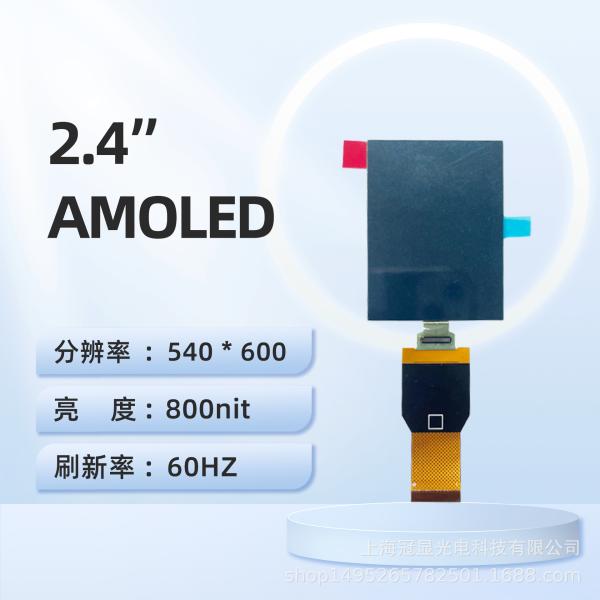

Product Images
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600 2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600 2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600 2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600 2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600 2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
Drawing & Pin Definition
2.4 Inch AMOLED Display Panel 60Hz Refresh Rate 800cd/M² High Brightness 540*600
Micro OLED Technology

Key Advantages:

  • Ultra-High Pixel Density (PPI)
  • Thin, Lightweight, and Compact
  • Superior Image Quality
  • Lower Power Consumption
  • Wide Operating Temperature Range
  • High Brightness & Efficiency (with advanced designs)
  • Manufacturing & Scalability Benefits

Limitations:

  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to Micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from Micro LED
Company Advantages
  • Factory base located in inland city with cost-effective operations
  • Most advanced equipment ensuring stable quality
  • Fully automated processes for efficiency and quality consistency
  • Professional engineers with 20+ years experience in LCD field
  • Custom product design capabilities

Certifications: ISO14001, ISO9001/IATF16949, SGS of LCD module

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded: 2009
High-tech enterprise specializing in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.
Register capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Product Applications
  • VR/AR/MR headsets
  • Military/aerospace
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive displays
  • Wearable & smart glasses
Technology Comparison
Feature Micro OLED Traditional OLED MicroLED
Substrate Silicon wafer Glass/plastic Sapphire/glass
PPI 3,000-5,000+ 400-800 1,000+
Size <1 inch common Smartphone/TV sizes Scalable
Power Use Low Medium Very Low
Lifespan Moderate (OLED aging) Moderate Very Long
Cost High Moderate Very High
Future of Micro OLED

Expected to dominate AR/VR and wearable displays due to unmatched pixel density. Major companies like Sony, Samsung, BOE, and eMagin are investing heavily in this technology.
