Specifications
Brand Name :
HuaXin
Model Number :
HX0205S001AM
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$8.75
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
Color Oled
Name :
oled display panel
size :
2.05
Resolution :
368*448
Brightness :
800
interface :
QSPI/MIPI
Driving IC :
CO5300
view angle :
all
Description
2.05 Inch AMOLED Dot Display 368*448 Resolution For Outdoor Definition Color Screen
Product Overview

HX0205S001AM is 2.05 inch AMOLED display with 368x448 resolution and QSPI interface, featuring all viewing angles and 800 cd/m² brightness with CO5300 driving IC.

Attribute Value
Display Technology Color OLED
Name OLED display panel
Size 2.05 inch
Resolution 368*448
Brightness 800 cd/m²
Interface QSPI/MIPI
Driving IC CO5300
View Angle All view

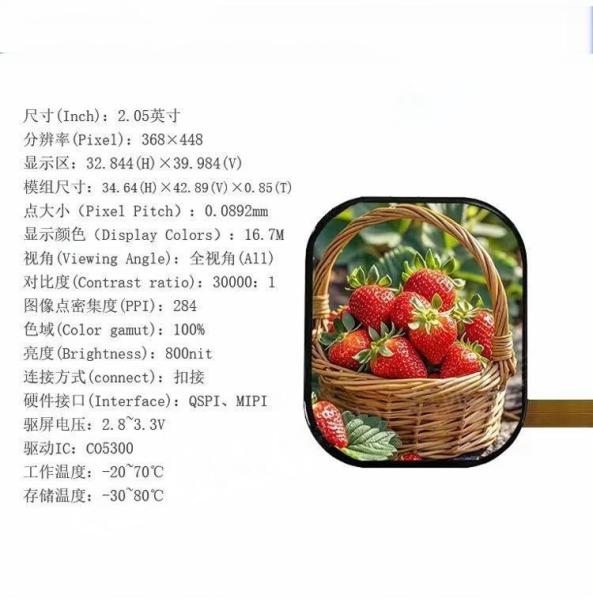

Technical Specifications
Part NO. HX0205S001AM
Display Technology AMOLED
Diagonal Screen Size 2.05 INCH
Resolution 368(W)*448(H)
Viewing Angle All View
Operation Temperature -20~60°C
Panel Size(mm) 34.64(H)×42.89(V)×0.85(T)
Active Area (mm) 32.844(H)×39.984(V)
Pixel Pitch (mm) 0.0892mm
Contrast Ratio 30000:1
Brightness 800CD/M²
Interface QSPI, MIPI
Drive IC CO5300
TP Type On cell

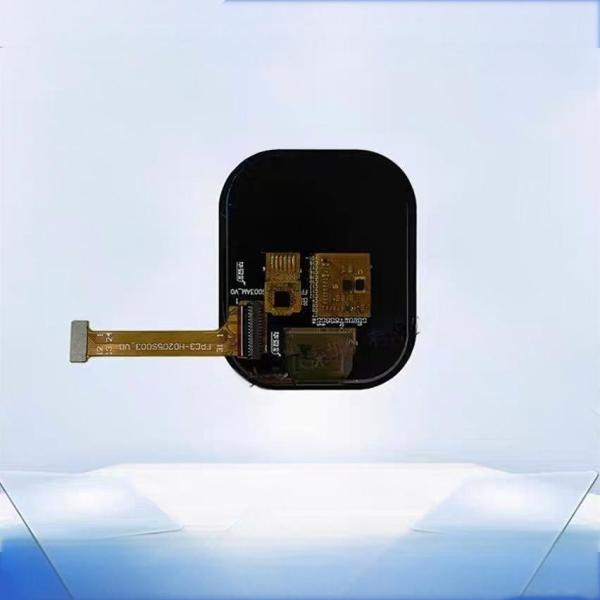

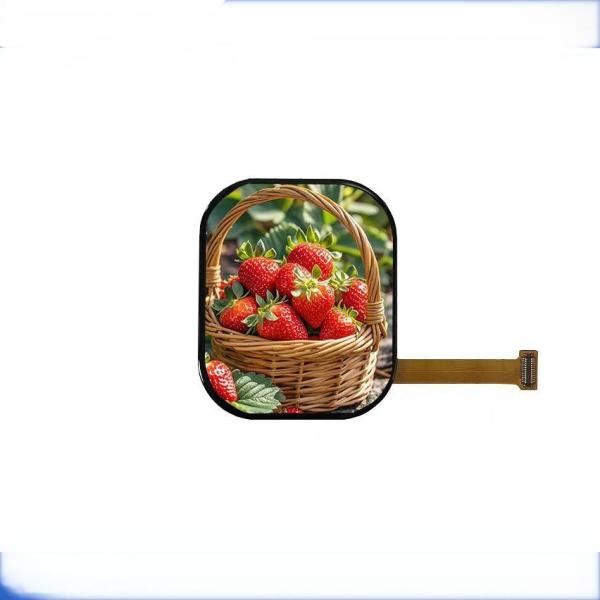

Product Images
Drawing & Pin Definition
OLED Technology Overview
Key Advantages of AMOLED
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
AMOLED Disadvantages

AMOLED is more expensive than LCD and TFT, has a shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.

Company Advantages
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders with over 20 years experience in LCD field
  • Self design capability for customized products
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Huaxin Technology (Enshi) Co.,LTD

Location: Hubei.Enshi

Founded: 2009

High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, and OLED

LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series

LCM includes: COB, TBA, COG, TP, LED backlight and other series

Registered capital: Twenty million

Current staff: 500+

R&D accounts for 10%

QC accounts for 15%

Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical and smart home devices
Power Efficiency Comparison
Power Consumption

AMOLED displays consume power on a per-pixel basis, meaning that pixels that display black or dark content consume very little power, while pixels displaying bright or white content consume more power.

LCD and LED displays require a constant backlight that consumes power regardless of the displayed content.

Content Dependency

AMOLED displays are more power-efficient for content with dark or black areas, as individual pixels can be turned off to save power.

LCD and LED displays consume a relatively constant amount of power regardless of content, as the backlight remains active.

Brightness Control

AMOLED displays can dynamically adjust the brightness of individual pixels, allowing for better power efficiency in low-brightness scenarios.

LCD and LED displays typically have a fixed backlight brightness, resulting in higher power consumption even when maximum brightness isn't required.

Display Size

AMOLED displays tend to be more power-efficient for smaller display sizes, as power consumption scales with the number of pixels.

Larger LCD and LED displays may require more power-hungry backlights, potentially reducing their power efficiency compared to AMOLED displays of the same size.
