2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
2.4 Inch 450*600 High Brightness Color Oled Display Module Amoled Touch Screen
Specifications
Brand Name :
HuaXin
Model Number :
HX0240MASBCEX
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$16.5~$15.5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
Color Oled
Name :
oled display panel
size :
2.4
Resolution :
450*600
Brightness :
800
interface :
SPI/MCU/MIPI
Driving IC :
RM690B0
view angle :
all
Description
2.4 Inch 450×600 Resolution High Brightness Color OLED Display Module AMOLED Touch Screen
Product Overview

HX0240MASBCEX is a 2.4 inch AMOLED round display module with 450×600 resolution, MIPI interface, brightness of 800 cd/m², and driving IC RM690B0.

Technical Specifications
Attribute Value
Display Technology Color OLED
Part Number HX0240MASBCEX
Screen Size 2.4 inch
Resolution 450×600
Viewing Angle All View
Operation Temperature -20°C to 70°C
Panel Size 38.72×51.56 mm
Active Area 36.72×48.96 mm
Pixel Pitch 0.0816 mm
Brightness 800 cd/m²
Interface SPI/MCU/MIPI
Drive IC RM690B0
TP Type On cell

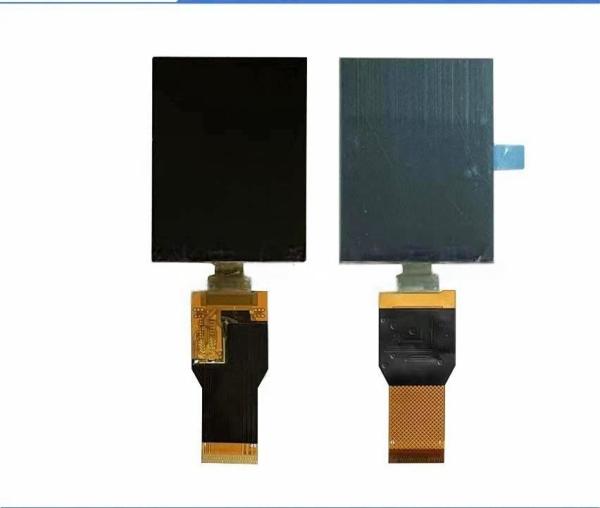

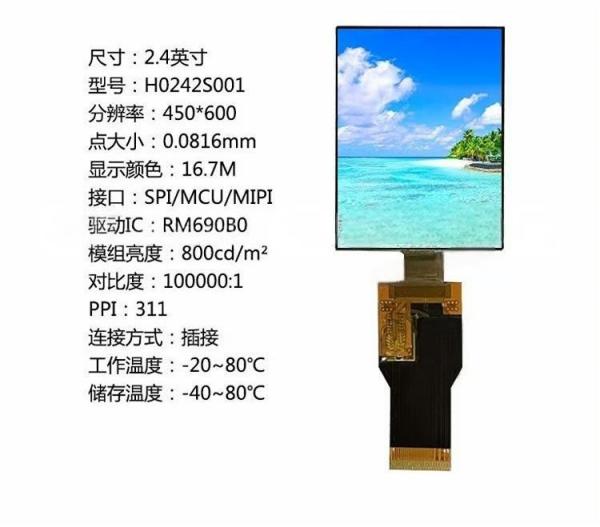

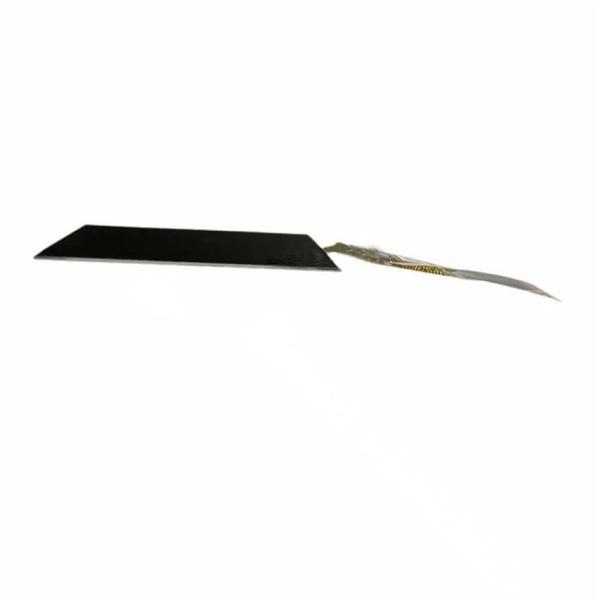

Product Images
Drawing & Pin Definition
AMOLED Technology Overview
Key Advantages
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Displays (AOD)
  • Superior Viewing Angles
  • HDR Performance
Disadvantages

AMOLED is more expensive than LCD and TFT, has a shorter lifetime than LCD and TFT, and has lower peak brightness in sustained use.

Power Efficiency Comparison
1. Power Consumption

AMOLED displays consume power on a per-pixel basis, meaning that pixels displaying black or dark content consume very little power. LCD and LED displays require a constant backlight regardless of content.

2. Content Dependency

AMOLED displays are more power-efficient for dark content as individual pixels can be turned off. LCD/LED displays consume constant power as the backlight remains active.

3. Brightness Control

AMOLED can dynamically adjust pixel brightness for better efficiency in low-brightness scenarios. LCD/LED displays typically have fixed backlight brightness.

4. Display Size

AMOLED is more power-efficient for smaller displays as consumption scales with pixel count. Larger LCD/LED displays may require more power-hungry backlights.

Applications
  • Smartphones and tablets
  • Wearables (smartwatches like Apple Watch)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical and smart home devices
Manufacturer Information

Huaxin Technology (Enshi) Co., LTD

Location: Hubei, Enshi

Founded: 2009

Specialization: Research, development, production and sales of LCD, LCM, TFT, backlight, and OLED

Product Lines:

  • LCD includes: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM includes: COB, TBA, COG, TP, LED backlight and other series

Registered Capital: 20 million

Current Staff: 500+

R&D: 10% of workforce

QC: 15% of workforce

Certifications: ISO14001, ISO9001/IATF16949, SGS of LCD module

Production Capacity
Product 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousand Pieces/Day
Backlight Production 100 200 300 500 500 Thousand Pieces/Day
OLED Production 10 20 30 40 50 Thousand Pieces/Day
Company Advantages
  • Factory located in cost-effective inland city
  • Most advanced equipment for stable quality
  • Fully automated processes for efficiency and quality
  • Professional engineers with 20+ years experience in LCD field
  • Self-design capability for customized products
