1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090
1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090
1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090
1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090
Specifications
Brand Name :
HuaXin
Model Number :
HX178RT92011T
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$10.7
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
AMOLED Display Module
Name :
Touch Panel AMOLED
Display size :
1.78 inch
Resolution :
368*448
interface :
MIPI/3-Wire SPI/4-Wire SPI/QAD-SPI
Driving IC :
RM69090
Brightness :
350C/D
view angle :
all
Description
1.78 Inch Square AMOLED Display with RM69090 Driving IC
Product Specifications
Attribute Value
Display Technology AMOLED Display Module
Name Touch Panel AMOLED
Display size 1.78 inch
Resolution 368×448
Interface MIPI/3-Wire SPI/4-Wire SPI/QAD-SPI
Driving IC RM69090
Brightness 350C/D
View Angle All directions
Technical Parameters
Parameter Value
Part No. HX178RT92011T
Display Mode 1.78 inch AMOLED display
Outline Size (mm) 30.6×37.99
AA Size (mm) 28.704×34.944
Display Dots 368×448
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C

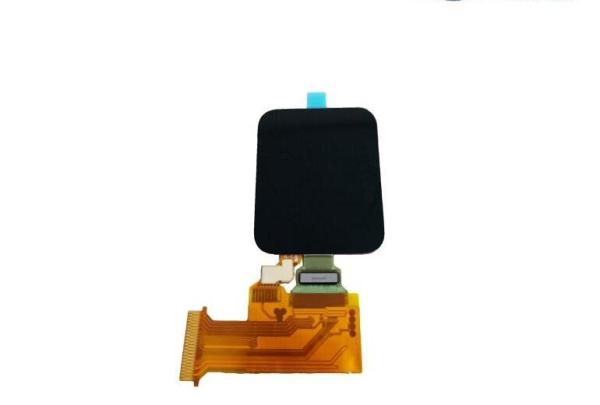

Product Images
1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090 1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090
Drawing & Pin Definition
1.78 Inch Small Color Oled Display Square Oled Display 368*448 Dots Driving IC RM69090
AMOLED Technology Overview
Key Advantages
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Display Capability
  • Superior Viewing Angles
  • Excellent HDR Performance
Considerations

AMOLED displays are more expensive than LCD and TFT alternatives, have a shorter operational lifetime, and may exhibit lower peak brightness in sustained use scenarios.

Power Efficiency Comparison
AMOLED vs. LCD/LED Technologies
  • Power Consumption: AMOLED consumes power per pixel, while LCD requires constant backlight power
  • Content Dependency: AMOLED excels with dark content as pixels can be turned off
  • Brightness Control: AMOLED allows dynamic pixel brightness adjustment
  • Display Size: AMOLED is more efficient for smaller displays
Huaxin Technology Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Highly automated production processes
  • 20+ years of LCD industry expertise
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Location: Hubei, Enshi
Founded: 2009
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products
Staff: 500+ employees (10% R&D, 15% QC)
Registered Capital: 20 million

Production Capacity
Product 2021 2022 Goal 2023 Challenge 2024 Challenge 2025 Challenge Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Product Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
