1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
Specifications
Brand Name :
HuaXin
Model Number :
HX145RAC10B
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$7.3
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
amoled touch screen
Size :
1.45 inch
Name :
display amoled
Resolution :
272X340
interface :
24pins Mipi
View angle :
all
Brightness :
350C/D
touch panel :
CTP
Description
1.45 Inch AMOLED Touch Display with MIPI Interface (272×340 Resolution)
Product Specifications
Attribute Value
Display Technology AMOLED touch screen
Size 1.45 inch
Resolution 272×340 dots
Interface 24pins MIPI
View Angle All directions
Brightness 350 cd/m²
Touch Panel CTP (Capacitive Touch Panel)
Technical Parameters
Part Number HX145RAC10B
Display Technology AMOLED
Diagonal Screen Size 1.45 inch OLED
Active Area 23.01×28.77 mm
Panel Size 26.01×33.77×0.833 mm
Operation Temperature -20℃ to +70℃
Contrast Ratio 10000:1
Driving IC RM67160, FT3207

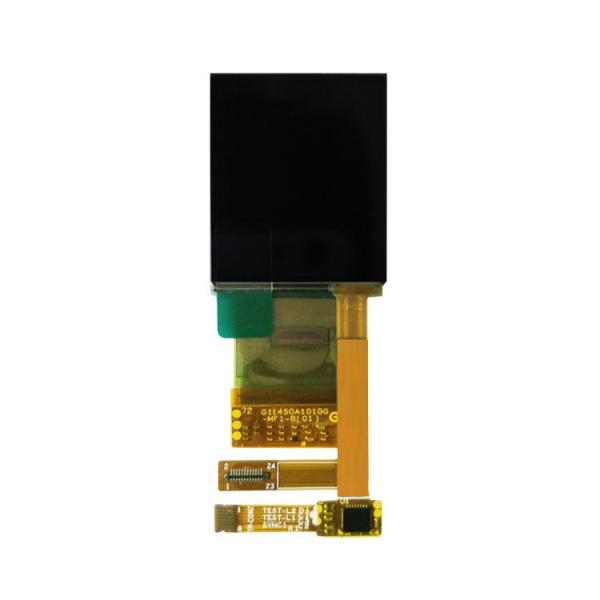

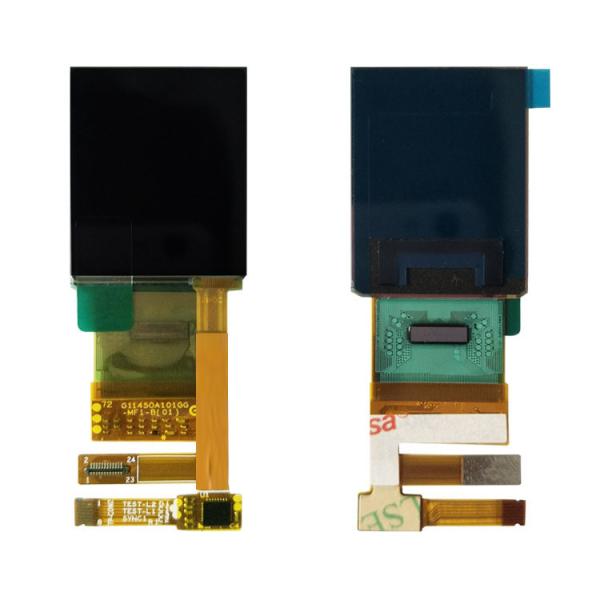

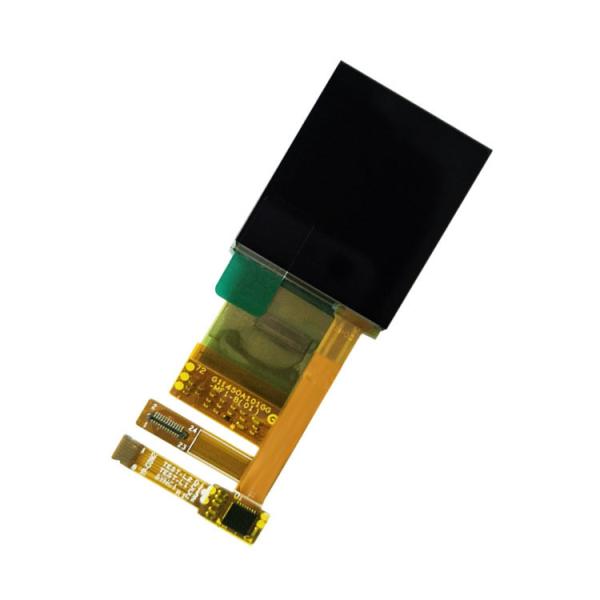

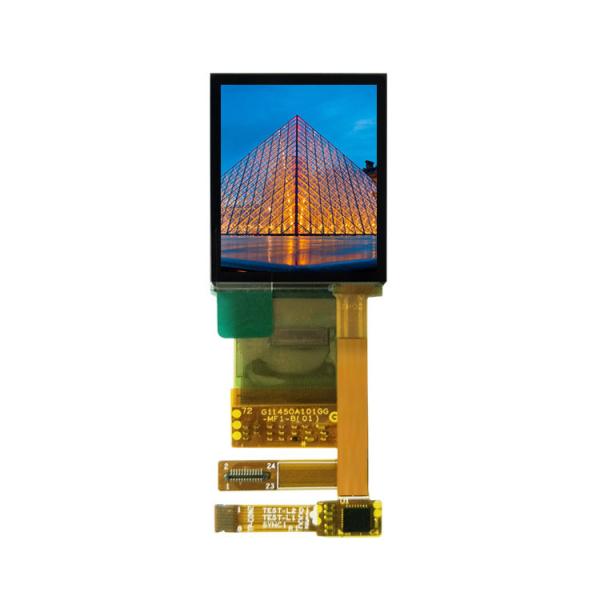

Product Images
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160 1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160 1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160 1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
Technical Drawings
1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160 1.45 Inch Oled Touch Screen Module 272X340 24PINS MIPI Interface Driving IC RM67160
AMOLED Technology Overview
Key Advantages
  • Perfect Blacks & Infinite Contrast
  • Vibrant Colors & Wide Gamut
  • Ultra-Fast Response Times
  • Flexibility & Thin Designs
  • Energy Efficiency
  • Always-On Display Capability
  • Superior Viewing Angles
  • Excellent HDR Performance
Limitations
  • Higher cost compared to LCD and TFT technologies
  • Shorter operational lifetime than LCD/TFT
  • Lower peak brightness in sustained use
Manufacturer Advantages
  • Cost-effective inland manufacturing base
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • 20+ years of engineering expertise in LCD technology
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Huaxin Technology (Enshi) Co., LTD
  • Location: Hubei, Enshi
  • Established: 2009
  • Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED
  • Product range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight modules
  • Registered capital: 20 million
  • Workforce: 500+ employees
  • R&D team: 10% of workforce
  • Quality control: 15% of workforce
Production Capacity
Product Type 2021 2022 2023 2024 2025 Unit
LCD Production 4.5 9 9 9 9 Thousands/Day
LCM Production 70 150 300 450 450 Thousands/Day
Backlight Production 100 200 300 500 500 Thousands/Day
OLED Production 10 20 30 40 50 Thousands/Day
Typical Applications
  • Smartphones and tablets
  • Wearable devices (smartwatches)
  • AR/VR headsets
  • Television and monitors
  • Automotive displays
  • Medical equipment and smart home devices
Power Efficiency Comparison
AMOLED vs. LCD/LED Technologies
  • Power Consumption: AMOLED consumes power per pixel (dark pixels use minimal power), while LCD requires constant backlight
  • Content Dependency: AMOLED is more efficient for dark content as pixels can turn off completely
  • Brightness Control: AMOLED can adjust brightness per pixel for better efficiency in low-light conditions
  • Display Size: AMOLED is more efficient for smaller displays as power scales with pixel count
