1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
Specifications
Brand Name :
HuaXin
Model Number :
HX17502E5096
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$8.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
transflective display
name :
tft lcd module
size :
1.75 inch
resolution :
296*222
Brightness :
300c/d
Interface :
RGB
Driving IC :
SSD2119
Description
1.75 Inch Transflective TFT Display

High-quality 1.75 inch transflective TFT display with 296×222 resolution, RGB interface, SSD2119 driving IC, and 300c/d brightness with all viewing angles.

Key Specifications
Attribute Value
Display Technology Transflective Display
Product Type TFT LCD Module
Size 1.75 inch
Resolution 296×222 dots
Brightness 300c/d
Interface RGB
Driving IC SSD2119
Technical Parameters
Part No. HX17502E5096
Display Mode 1.75 inch transflective TFT
Outline Size (mm) 39.32×34.15×0.5
AA Size (mm) 35.5×26.64
Display Dots 296×222
View Angle All
Working Temperature -30°C to 70°C
Storage Temperature -30°C to 80°C

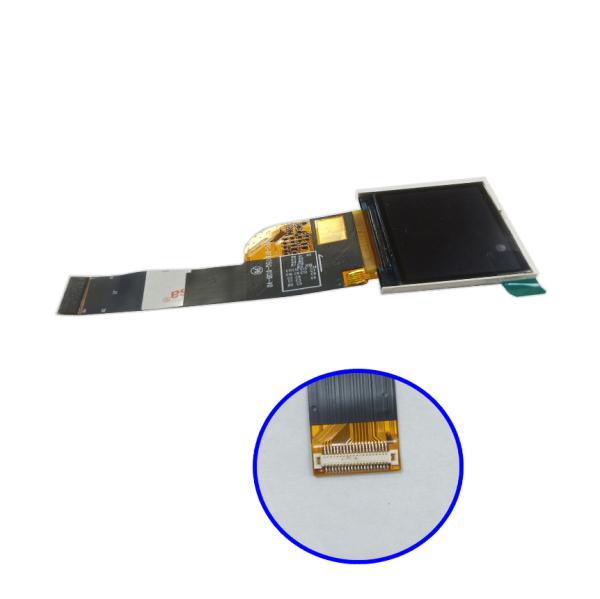

Product Images
1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119 1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119 1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119 1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119

TFT structure diagram:

1.75 Inch Transflective TFT Display Tft Lcd Module 296*222 Dots RGB Driving IC SSD2119
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • 20+ years of LCD industry expertise
  • Custom design capabilities
Company Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Overview

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded 2009
High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs

Company Size: 500+ employees (10% R&D, 15% QC)
Registered Capital: 20 million

Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternatives
  • Size Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving images
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
