3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
Specifications
Brand Name :
HuaXin
Model Number :
HX0399S003
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$17.1~$16.5
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
transflective TFT display
name :
sunlight readable display
size :
3.97 inch
resolution :
480*800
Brightness :
150c/d
Interface :
MIPI
Driving IC :
ST7701S
Touch panel :
CTP
Description
3.97 inch Transflective TFT Display with Touch Panel
Product Attributes
Attribute Value
Display Technology Transflective TFT display
Name Sunlight readable display
Size 3.97 inch
Resolution 480×800
Brightness 150c/d
Interface MIPI
Driving IC ST7701S
Touch panel CTP
Technical Parameters
Parameter Value
Part No. HX0399S003
Display Mode 3.97 inch transflective TFT display
Outline size (mm) 55.44×96.17×2.05
AA size (mm) 51.84×86.4
Display dots 480×800
View Angle All
Brightness 150c/d
Interface MIPI
Driving IC ST7701S
Working temp -20~70°C
Storage temp -30~80°C
Touch panel With touch panel

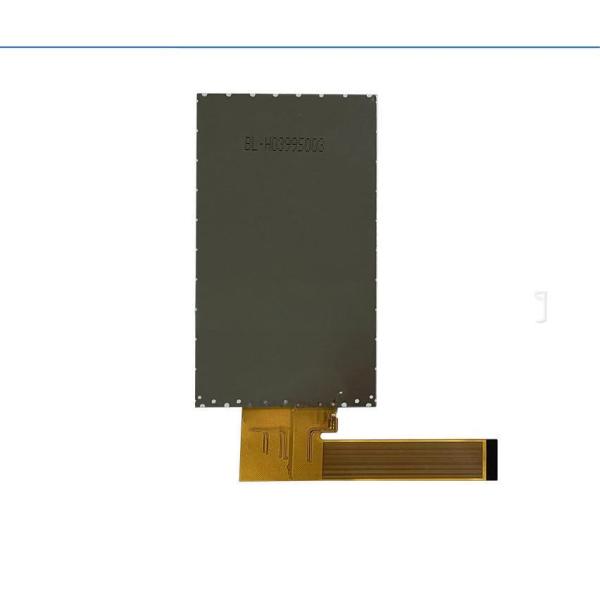

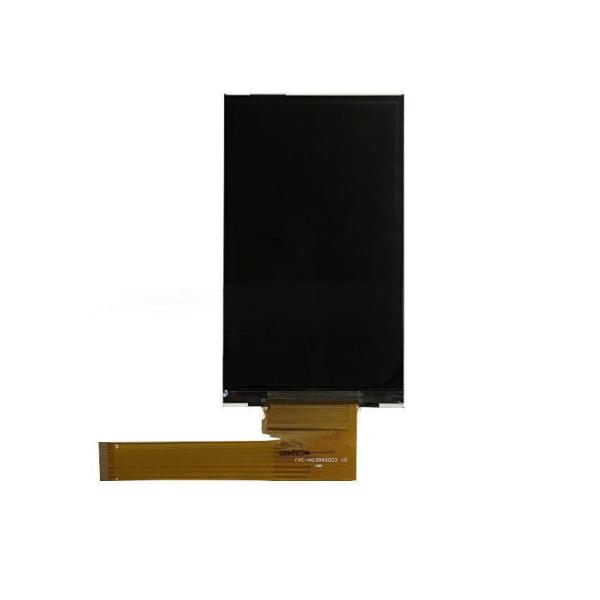

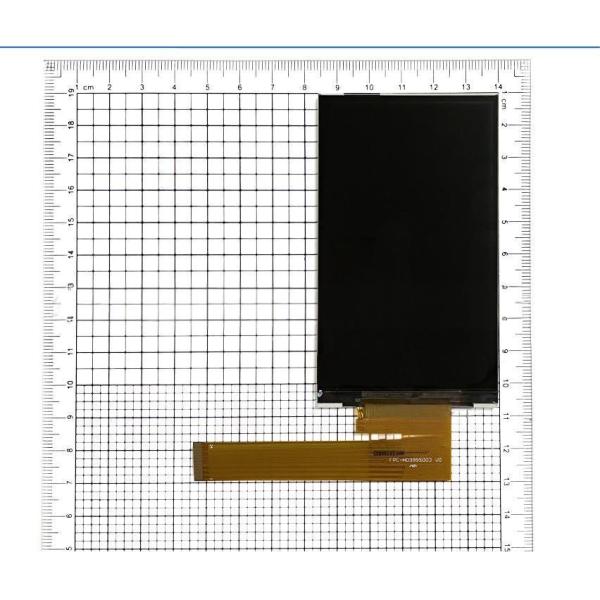

Product Images
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
3.97 Inch Transflective TFT Display 480*800 MIPI Interface Driving IC ST7701S
TFT Product Knowledge

TFT substrate input and CF substrate input flow chart:

TFT structure:

Huaxin Advantage
  • Factory base located at inland city which has cost effective
  • Most advanced new equipment which can keep quality stable
  • Most processes using fully automatic equipment which has efficiency and stable quality
  • Professional engineers and production leaders who works in LCD field for more than 20 years
  • Self design for customized product

Our Certifications:

  • ISO14001
  • ISO9001/IATF16949
  • SGS of LCD module

Company Information:

Huaxin Technology (Enshi) Co., LTD

  • Location: Hubei, Enshi
  • Founded: 2009
  • High technology enterprise specializing in research, development, production and sales of LCD, LCM, TFT, backlight, OLED
  • LCD products include: VA, TN, HTN, STN, FSTN, CSTN and other series
  • LCM products include: COB, TBA, COG, TP, LED backlight and other series
  • Registered capital: Twenty million
  • Current staff: 500+
  • R&D accounts for 10%
  • QC accounts for 15%
Production Capacity
Annual Production Capacity 2021 (Current) 2022 (Goal) 2023 (Challenge) 2024 (Challenge) 2025 (Challenge) Remark
LCD Production Capacity 4.5 9 9 9 9 Unit: thousands of logarithms/Day
LCM Production Capacity 70 150 300 450 450 Unit: Thousand piece/Day
Backlight Production Capacity 100 200 300 500 500 Unit: Thousand piece/Day
OLED Production Capacity 10 20 30 40 50 Unit: Thousand piece/Day
Product Applications
  • Car navigation & printer
  • Video call & advertising
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control and home appliance
TFT Display Characteristics
  • Image Quality: Excellent image quality with high resolution, sharpness, and color accuracy
  • Response Time: Fast response times for quick pixel switching
  • Viewing Angles: Wide viewing angles with minimal color shifts
  • Energy Efficiency: More energy-efficient than other display technologies
  • Size and Flexibility: Available in various sizes from small handheld devices to large panels
  • Backlighting: Typically uses LED backlighting for screen illumination
  • Wide Applications: Suitable for diverse applications
TFT Display Limitations
  • Limited Viewing Angles: Compared to some other technologies
  • Limited Contrast Ratio: May not match other display types
  • Backlighting and Power Consumption: Requires backlighting which affects power use
  • Response Time and Motion Blur: Can show motion blur in fast-moving content
  • Limited Flexibility: Rigid structure compared to flexible displays
  • Limited Color Gamut: May not achieve the widest color ranges
