2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
Specifications
Brand Name :
HuaXin
Model Number :
HX28BS6002-40A
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1000
Price :
$6.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
transflective TFT
name :
TFT module
size :
2.8 inch
resolution :
320*240
Brightness :
100c/d
Interface :
3/4 SPI MCU 8/16 bit
Driving IC :
ST7789T3-G4
Description
2.8 Inch Transflective TFT Display Module

High-resolution 320×240 dots display with 3/4 SPI MCU 8/16 bit interface and ST7789T3-G4 driving IC, featuring 12:00 clock orientation.

Key Specifications
Attribute Value
Display Technology Transflective TFT
Size 2.8 inch
Resolution 320×240
Brightness 100c/d
Interface 3/4 SPI MCU 8/16 bit
Driving IC ST7789T3-G4
Technical Parameters
Part No. HX28BS6002-40A
Outline Size 50.00×60.20 mm
AA Size 43.2×57.6 mm
View Angle 12:00 clock

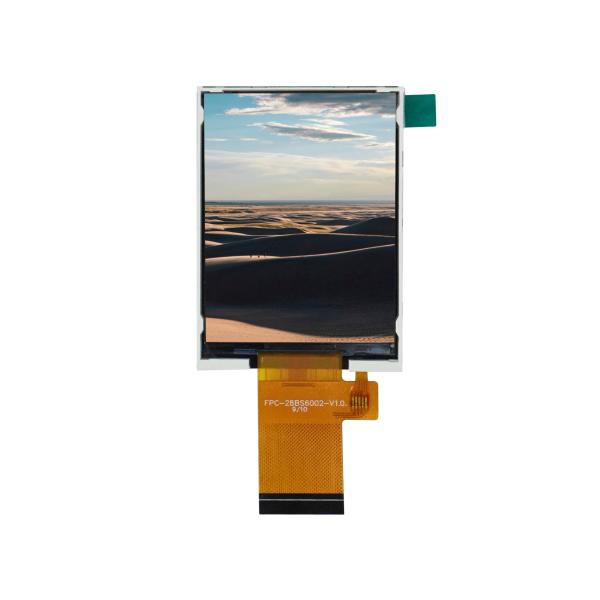

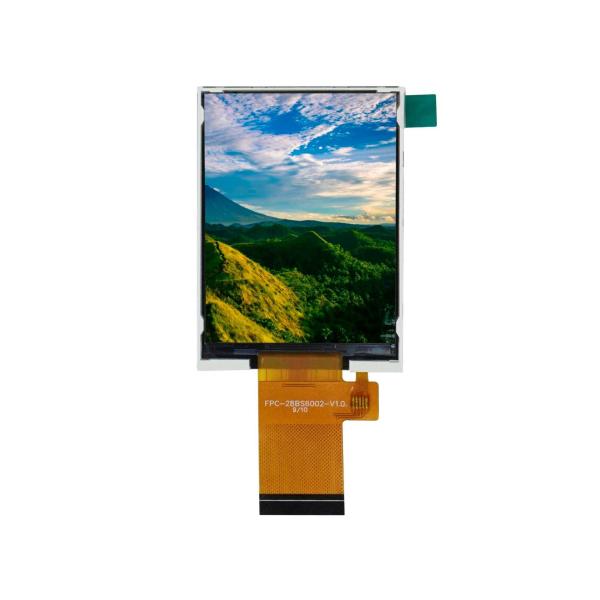

Product Images
2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4 2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4 2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4 2.8 Inch Transflective Tft Display Transflective LCD Screen 320*240 Dots Driving IC ST7789T3-G4
TFT Product Knowledge
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency
  • 20+ years of LCD industry expertise
  • Custom design capabilities
Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Profile

Huaxin Technology (Enshi) Co., LTD
Location: Hubei.Enshi
Founded: 2009
Specialization: R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products
Staff: 500+ employees (10% R&D, 15% QC)
Registered capital: 20 million

Production Capacity
Product 2021 2022 2023 2024 2025
LCD (thousands/Day) 4.5 9 9 9 9
LCM (thousands/Day) 70 150 300 450 450
Backlight (thousands/Day) 100 200 300 500 500
OLED (thousands/Day) 10 20 30 40 50
Applications
  • Car navigation & printers
  • Video call & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control & home appliances
TFT Display Characteristics
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for diverse applications
  • LED backlighting for consistent illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio may be lower than alternative displays
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
