Specifications
Brand Name :
HuaXin
Model Number :
HX010B7DH04
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$8.8~$8.4
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
transflective TFT
name :
TFT module
size :
1.17 inch
resolution :
184*38
Pin Quantity :
8 PIN Plug-in
Interface :
SPI
Viewing Angle :
60/60/60/60(Typ.)
Description

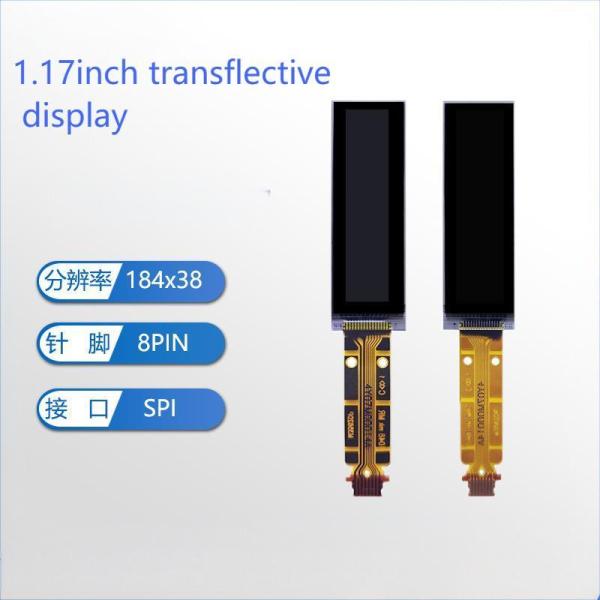

1.17-inch Transflective LCD Screen

184×38 bar display designed for wearable devices and small instruments. Features excellent sunlight visibility and wide-temperature operation.

Key Specifications
Display Technology Transflective TFT
Product Name TFT Module
Size 1.17 inch
Resolution 184×38
Pin Quantity 8 PIN Plug-in
Interface SPI
Viewing Angle 60/60/60/60 (Typ.)

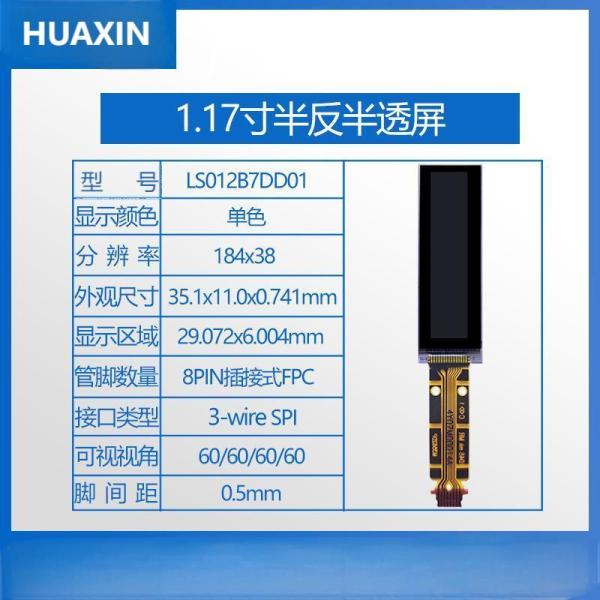

Technical Parameters
Part No. HX012B7DD01
Display Mode 1.17 inch transflective TFT module
Outline Size 35.1(H) × 11.0(V) × 0.741(D) mm
AA Size 29.072(H) × 6.004(V) mm
Display Dots 184×38
Display Color Monochrome

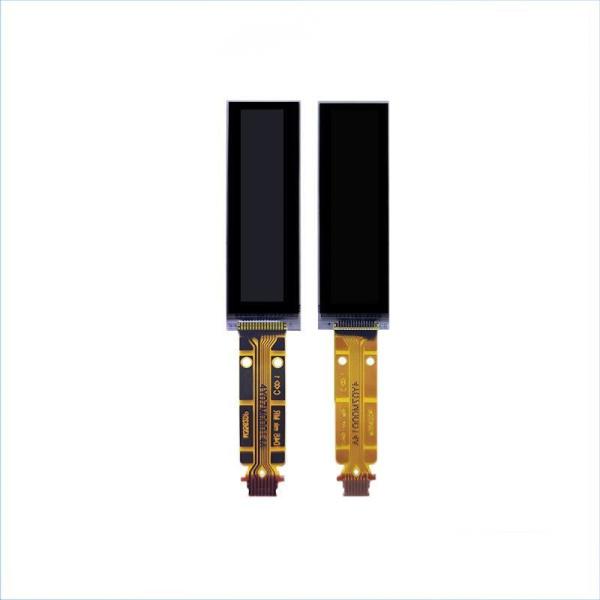

Product Images
1.17 Inch Transflective TFT Display 184x38 For Wearable Devices 1.17 Inch Transflective TFT Display 184x38 For Wearable Devices 1.17 Inch Transflective TFT Display 184x38 For Wearable Devices 1.17 Inch Transflective TFT Display 184x38 For Wearable Devices 1.17 Inch Transflective TFT Display 184x38 For Wearable Devices
Pin Definition Diagram
1.17 Inch Transflective TFT Display 184x38 For Wearable Devices
TFT Product Knowledge
Huaxin Technology Advantages
Cost-effective manufacturing base located in inland city
Advanced equipment ensuring stable quality
Fully automated processes for efficiency and consistency
Expert engineering team with 20+ years experience
Custom design capabilities
Company Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Overview

Huaxin Technology (Enshi) Co., LTD, founded in 2009 in Hubei Enshi, specializes in R&D, production and sales of LCD, LCM, TFT, backlight, and OLED products.

  • Registered capital: 20 million
  • 500+ employees
  • 10% R&D staff
  • 15% quality control staff
Production Capacity
Product 2021 2022 Goal 2023 Challenge 2024 Challenge 2025 Challenge
LCD (Thousands/Day) 4.5 9 9 9 9
LCM (Thousands/Day) 70 150 300 450 450
Backlight (Thousands/Day) 100 200 300 500 500
OLED (Thousands/Day) 10 20 30 40 50
Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • High image quality with excellent resolution and color accuracy
  • Fast response times for smooth image transitions
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes for diverse applications
  • LED backlighting for consistent illumination
TFT Display Limitations
  • Viewing angles may be limited compared to other technologies
  • Contrast ratio limitations
  • Backlighting increases power consumption
  • Potential motion blur in fast-moving content
  • Limited flexibility in physical form
  • Color gamut restrictions
