1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
Specifications
Brand Name :
HuaXin
Model Number :
HX013B7DH06
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$8~$7.4
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
transflective TFT
name :
TFT module
size :
1.33 inch
resolution :
128*128
Pin Quantity :
10PIN Plug-in FPC
Interface :
SPI
Viewing Angle :
60/60/60/60 (Typ.)
Description
1.33-inch SPI Interface LCD Screen

128×128 RGB 8-color display module with low power consumption, ideal for smart bracelets, small gauges, and compatible with single-chip microcomputer development.

Key Specifications
Attribute Value
Display Technology Transflective TFT
Size 1.33 inch
Resolution 128×128
Pin Quantity 10PIN Plug-in FPC
Interface SPI
Viewing Angle 60/60/60/60 (Typ.)
Technical Parameters
Part No. HX013B7DH06
Outline Size 26.82(H)×31.3(V)×0.745(D)mm
AA Size 23.808(H)×23.808(V)mm
Display Dots 128×128
Display Color 8 colors, 6% NTSC

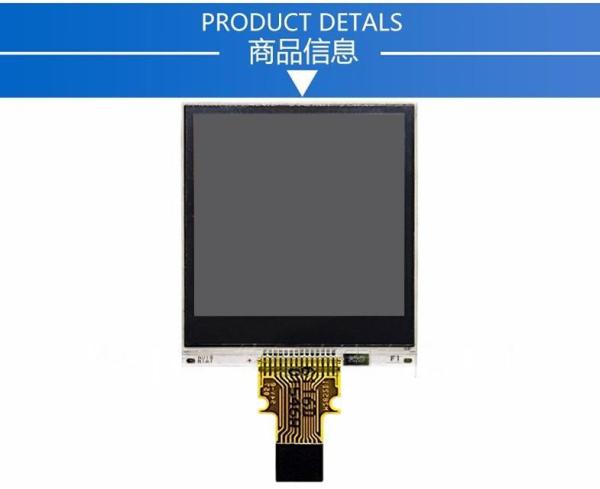

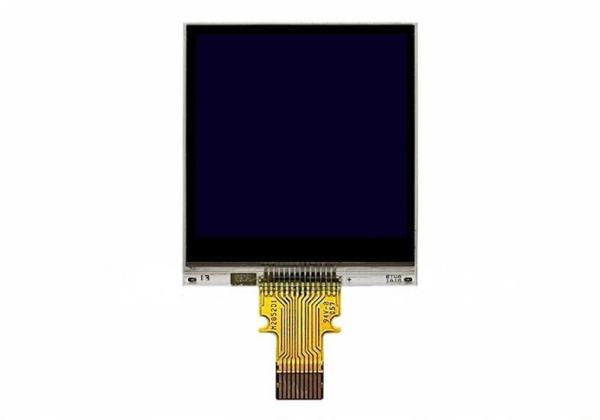

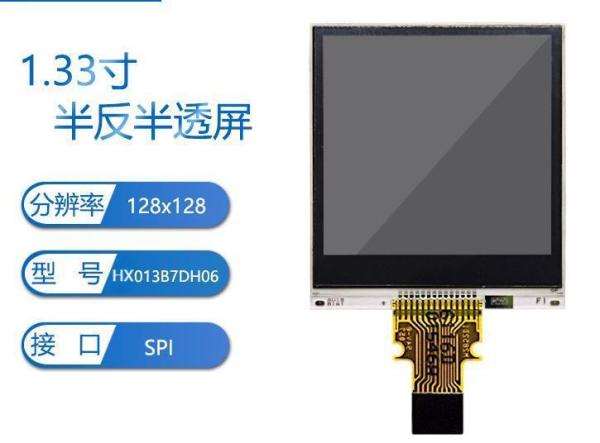

Product Images
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets 1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets 1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets 1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets 1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets

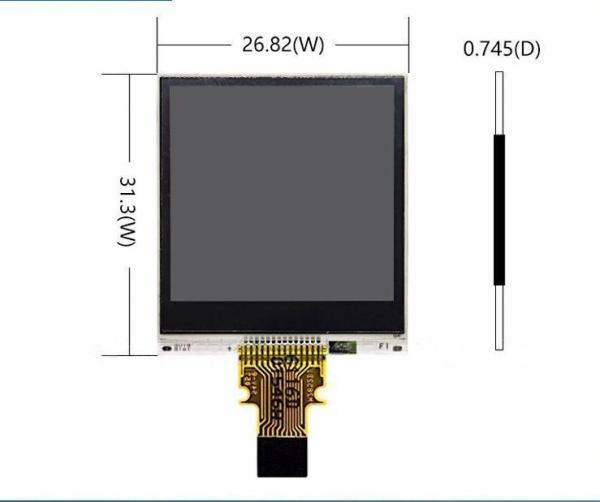

Technical Drawings
1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets 1.33 Inch Spi Lcd Display 128x128 RGB 8-Color Display Suitable For Smart Bracelets
TFT Manufacturing Process
Manufacturer Advantages
  • Cost-effective production facility located in inland city
  • Advanced equipment ensuring stable quality
  • Automated processes for efficiency and consistency
  • Engineering team with 20+ years LCD industry experience
  • Custom design capabilities
Huaxin Technology (Enshi) Co., LTD

Founded: 2009 | Location: Hubei, Enshi

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Registered Capital: 20 million | Employees: 500+

Certifications: ISO14001, ISO9001, IATF16949, SGS

Production Capacity
Product 2021 2022 Goal 2023 Challenge 2024 Challenge 2025 Challenge
LCD (k logs/day) 4.5 9 9 9 9
LCM (k pieces/day) 70 150 300 450 450
Backlight (k pieces/day) 100 200 300 500 500
OLED (k pieces/day) 10 20 30 40 50
Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Advantages
  • Excellent image quality with high resolution and color accuracy
  • Fast response times for smooth motion display
  • Wide viewing angles with minimal color shift
  • Energy efficient operation
  • Available in various sizes from small to large panels
  • LED backlighting for bright, uniform illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio may be lower than alternative displays
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving content
  • Limited flexibility in panel shape
  • Color gamut may be narrower than some alternatives
