Specifications
Brand Name :
HuaXin
Model Number :
ESHX050WGM01
Certification :
ISO14001/ ISO9001/IATF16949
Place of Origin :
China
MOQ :
1~1000
Price :
$88~~85.6
Payment Terms :
T/T
Supply Ability :
500K pcs per month
Delivery Time :
4~6weeks
Packaging Details :
blister+foam box+bubble bag+inside carton+master carton
Display Technology :
VR oled display
Size :
0.5 inch
Name :
micro oled mipi display
Resolution :
1600X1200
interface :
MIPI
View angle :
all
Brightness :
1000 C/D
Description
0.5 Inch micro OLED display 1600x1200 Resolution MIPI Interface 1000C/D Micro Oled Module, This display is a 0.5 inch diagonal, 1600(RGB) × 1200 dots active-matrix color OLED panel module based on single crystal silicon transistors. This panel integrates panel driver and logic driver, and realizes small size, light weight, low power consumption and high resolution. Applications: View finders, Head mounted displays, etc.
Product Specifications
Part NO. ESHX050WGM01
Display Technology micro AMOLED
Diagonal Screen Size 0.5 inch
Resolution 1600(H) x 1200
Viewing Angle all
Operation Temperature -20 ~ +70 ℃
Active Area (mm) 10.08mm x 7.56mm
Panel size(mm) 13.92x13.69
Brightness(cd/m2) 1000cd/m2
Interface MIPI (1port D-PHY)
Pin q'ty 31pcs
Pixel Size 6.3μm x 6.3μm
Frame Rate 60Hz~120Hz

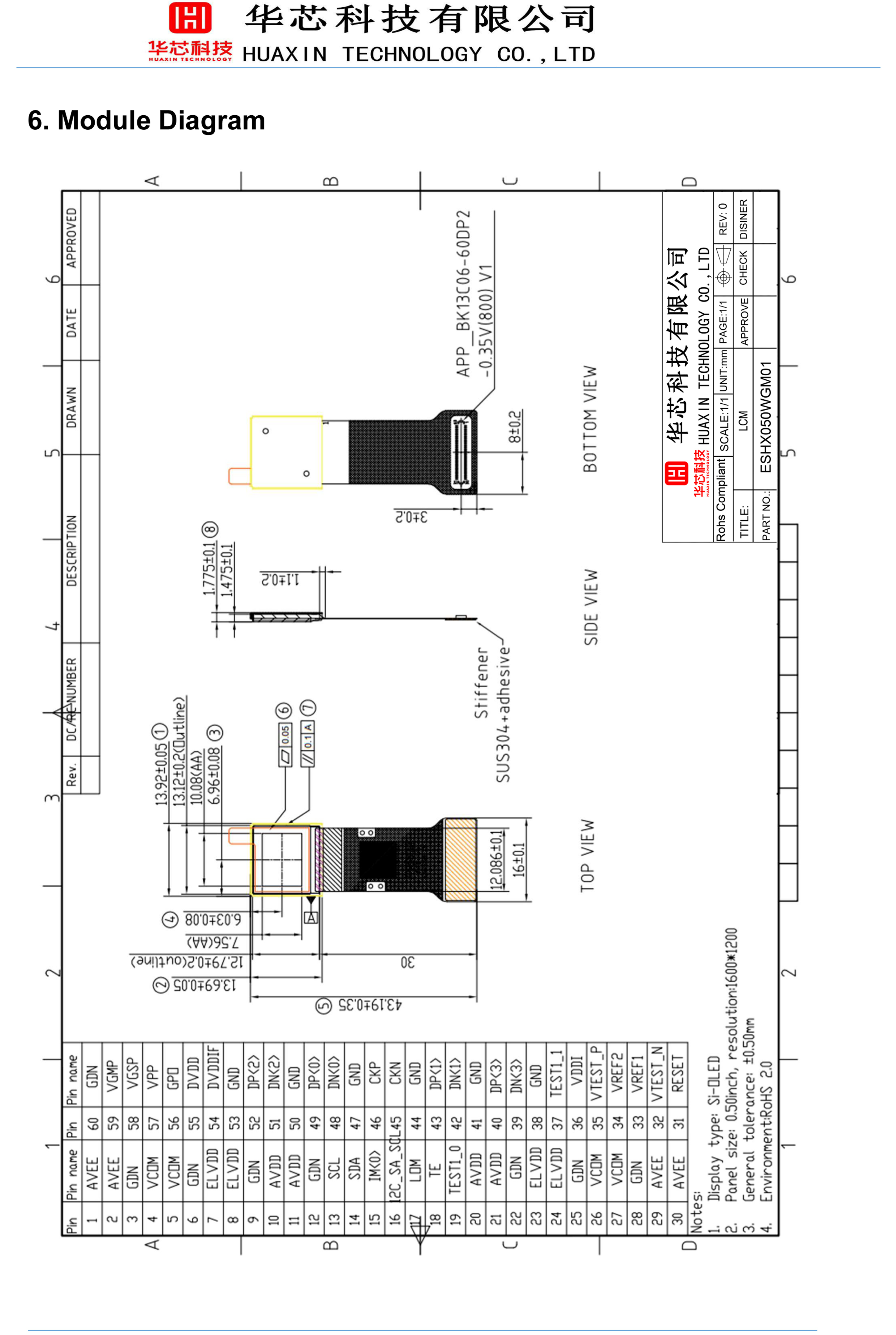

Technical Drawing

0.5 Inch Micro OLED Display with 1600x1200 Resolution and 1000 C/D Brightness for High-Performance Applications

Micro OLED Technology

Ultra-High Pixel Density (PPI) Thin, Lightweight, and Compact/ Superior Image Quality

Lower Power Consumption/Wide Operating Temperature Range

High Brightness & Efficiency (with advanced designs)

Manufacturing & Scalability Benefits

Limitations
  • High production costs & limited supply
  • Limited brightness (compared to Micro LED)
  • Limited view angles
  • Shorter lifespan (compared to Micro LED)
  • Limited application scope (small display only)
  • Motion Blur & Persistence issues (in VR)
  • Competition from Micro LED technology
Our advantage
Founded in 2009 in Hubei Enshi, specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.Product range includes VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs.
• Registered capital: 20 million | Staff: 500+ (10% R&D, 15% QC)

• Certifications: ISO14001, ISO9001/IATF16949, SGS

  • Cost-effective production base located in inland city
  • Advanced equipment ensuring stable quality
  • Highly automated processes for efficiency and consistency
  • Experienced engineering team with 20+ years in LCD field
  • Custom product design capabilities
Product Applications
  • VR/AR/MR headsets
  • Military / aerospace systems
  • Medical devices and microdisplays
  • Camera & electronic viewfinders
  • Automotive displays
  • Wearable & smart glasses
