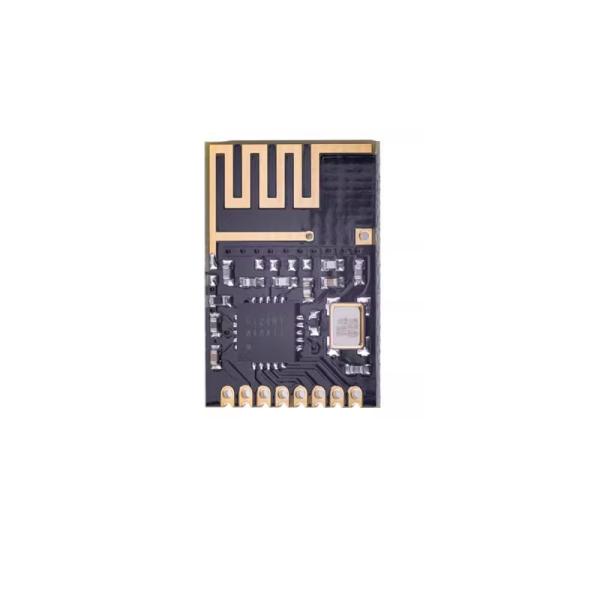

2.4G wireless transceiver module RF module NF-03

NF-03 is a 5mW power wireless transceiver integrated 2.4G module, embedded with the Si24R1 RF chip. SMD seal

Compact in size; High air speed (up to 2Mbps), SPI interface adopted, high stability and high cost performance. NF-03

It is applicable to various Internet of Things scenarios and is widely used in wireless mice, wireless remote controls, motion-sensing devices, active RFID, NFC, and low

Power consumption AD hoc network wireless sensor nodes, etc., are ideal products for Internet of Things applications.

01 Chip model: Si24R1, a Taiwan-made chip

Module size: 18.0*12.0, unit :mm

03 Modulation Mode: GFSK/FSK Modulation mode: Gaussian Shift Keying/Frequency Shift Keying Modulation

04 Packaging method: SMD-8 surface mount

The maximum rate of the 05 interface method using a four-wire SPI interface cannot exceed 10M

The maximum transmission power of 06 is 7±1dBm. For other details, please refer to the chip manual

07 RSSI support supports the detection of received signal strength

The 08 operating frequency band is adjustable from 2.4GHz to 2.525GHz, with a 1MHz step

The voltage range is 1.9 to 3.6V, with a typical value of 3.3V. Excessively high voltage can damage the module

The data rate supports 2Mbps/1Mbps/250Kbps. For details, please refer to the chip manual

Each channel of the 126RF channel is separated by 1MHz

The test distance is 240 meters, clear and unobstructed, with the maximum transmission power

13 Receiving sensitivity -96dBm@250Kbps Other details are provided in the chip manual

The 14 antenna interface board PCB antenna has a characteristic impedance of 500

The transmission length of a single data packet is 1 to 32 bytes, with a 3-level FIFO

The receiving length of a single data packet is 1 to 32 bytes, with a 3-level FIFO

The operating temperature range is -20 to +70℃. Excessively high temperatures may damage the module

Storage temperature: -40 to +125℃. Excessively high temperatures can damage the module

The turn-off current is 0.7µ A. For other details, please refer to the chip manual

The standby current is 15µ A. For other details, please refer to the chip manual

The receiving current is 15mA(2Mbps). For other details, please refer to the chip manual

The transmission current is 25mA(7dBm). For other details, please refer to the chip manual
