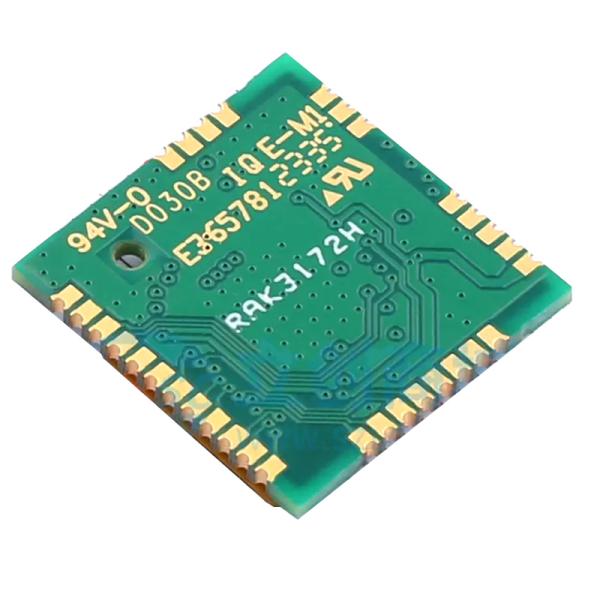

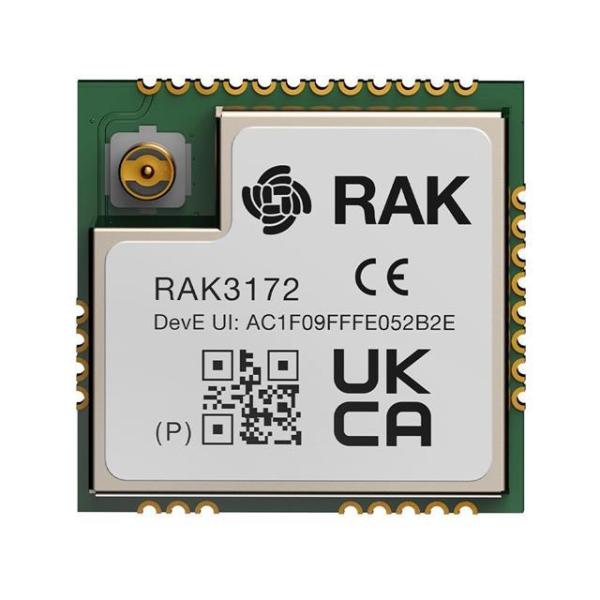

Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Wireless Cellular Radio Frequency Module 15.5x15MM RAK3172-8-SM-NI SMD
Specifications
Brand Name :
RAK
Model Number :
RAK3172-8-SM-NI
Certification :
ROSH
Place of Origin :
CN
MOQ :
10
Price :
CONSULT WITH
Payment Terms :
Western Union,T/T
Supply Ability :
10000
Delivery Time :
5-8DAY
Packaging Details :
T/R
Description

Wireless cellular development tool LORA module SMD 15.5x15 mm RAK3172-8-SM-NI


Description
RAK3172 is a low-power long-range transceiver module based on the STM32WLE5CC chip. It provides an easy
to-use, small-size, low-power solution for long-range wireless data applications. This module complies with Class
A, B, & C of the LoRaWAN 1.0.3 specifications. It can easily connect to different LoRaWAN server platforms like
TheThingsNetwork (TTN), Chirpstack, Actility, etc. It also supports LoRa Point-to-Point (P2P) communication
mode, which helps you implement your own customized long-range LoRa network quickly.
You can configure the mode and operation of the module using AT commands via a UART interface. RAK3172
also offers low-power features, which are very suitable for battery-powered applications.
Features
Based on STM32WLE5CCU6
LoRaWAN 1.0.3 specification compliant
Supported bands: EU433, CN470, IN865, EU868, AU915, US915, KR920, RU864, and AS923-1/2/3/4
LoRaWAN activation via OTAA/ABP
LoRa Point-to-Point (P2P) communication
Custom firmware using Arduino via RUI3 API
Easy to use AT command set via UART interface
Long-range - greater than 15 km with optimized antenna
ARM Cortex-M4 32-bit
256 kbytes flash memory with ECC
64 kbytes RAM
Ultra-low-power consumption of 1.69 μA in sleep mode
Supply Voltage: 2.0 V ~ 3.6 V
Temperature Range:
RAK3172: -20° C ~ 85° C
RAK3172-T: -40° C ~ 85° C
