WiFi module iot 4G all-network CAT1 network remote control wireless communication module EC200NCNLA-N05-SNNSA

EC200N-CN is an LTECat1 wireless communication module designed by Quectel specifically for the M2M and IoT fields, supporting a maximum downlink rate of 10Mbps and

The maximum uplink rate is 5 Mbps, offering an extremely high cost performance. Meanwhile, it is compatible with Quectel's LTE Standard EC200S series and EC2x in terms of packaging

The (EC25, EC21, EC20 R2.1 and EC20-CN) series and EG22-G (EG21-G and EG25-G) modules can achieve seamless integration between different networks

Switch.

The EC200N-CN adopts laser engraving technology. Laser engraving technology features a more aesthetically pleasing appearance, a stronger metallic texture, better heat dissipation, less information being erased, and greater energy efficiency

It has the advantages of adapting to the demands of automation, etc.

The EC200N-CN is equipped with a rich set of network protocols, integrates multiple industrial standard interfaces, and supports various driver and software functions (such as Windows)

The USB driver under operating systems such as 7/8/8.1/10, Linux and Android has greatly expanded its application scope in the M2M and IoT fields.

Such as OTT, CPE, routers, data cards, tablet computers, intelligent security and industrial-grade PDAs, etc.

Main advantages

Designed specifically for M2M and IoT applications

Support DFOTA remote online upgrade to reduce the later operation and maintenance costs

Supports Wi-Fi Scan positioning

Ultra-high cost performance

Support GNSS function (optional)

Supports Bluetooth function * (optional)

Region/Operator: China/India

Encapsulated LCC

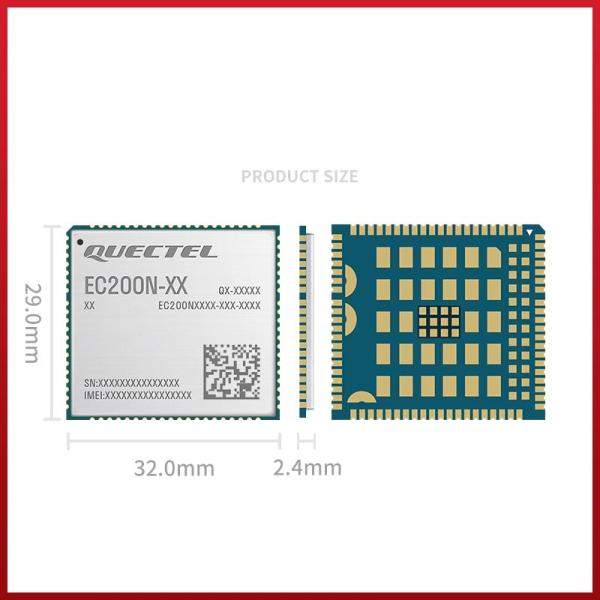

Module dimensions (mm) : 29.0 × 32.0 × 2.4

The weight (g) is approximately 3.9

Temperature range

Operating temperature: -35 °C to +75 °C

Extended temperature range: -40 °C to +85 °C

Frequency band information

LTE-FDD B1/B3/B5/B8

LTE-TDD B34/B38/B39/B40/B41

GSM/EDGE (optional) B3/B8

GNSS (optional) GPS/ BDS

Low Energy Bluetooth * (optional) Bluetooth 5.0

Certification

Operator certification in China: Telecom database entry

Compulsory Certification in China: SRRC/NAL/CCC

Other certified WHQL

Data transmission rate

LTE-FDD (Mbps) 10 (Downlink) / 5 (uplink)

LTE-TDD (Mbps) 7.5 (Downlink) / 1 (Uplink)

EDGE (kbps)

GPRS (kbps)

Interface

(U)SIM × 1, 1.8/3.0V

UART × 2

USB 2.0 × 1

PCM (Digital Audio) × 1

I2C × 1

Analog audio interface input: × 1; Output: × 1

Antenna interfaces × 3 (main antenna, GNSS* (optional), Bluetooth * (optional))

Audio

Audio codec modes: MP3/AMR/WAV

Audio: Digital audio/analog audio

Outstanding features

DTMF support

DFOTA support

Audio playback/audio recording support

QuecFile® is supported

VoLTE support

(U)SIM card detection support

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
