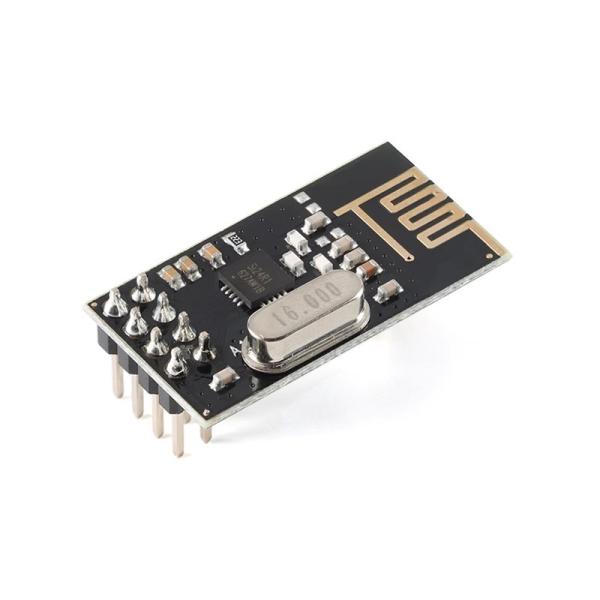

2.4G Wireless Transceiver Module RF Module NF-01-S is suitable for wireless mouse wireless remote control

Characteristics

·DIP-8 ultra-small size package, simple and easy to use

Supports general modulation methods such as CFSK/FSK

Supports data rates of 2Mbps/1Mbps/250Kbps

· Internally integrated LDO with high PSRR

Wide power supply voltage range :1.9-3.6V· Channels :126 channels with a 1MHz bandwidth. Receiving sensitivity :-96dBm@250kbps

Maximum transmission power :7dBm

It adopts a four-wire SPI interface with a rate of up to 10MHz and integrates an intelligent ARQ baseband protocol engine internally

Hardware interruption output for data transmission and reception

Supports 1-bit RSSI output

Overview

NF-01-S is a 2.4G wireless module with a 5mW power, featuring high air speed (up to 2Mbps), SPI interface, high stability, high cost performance, and all industrial-grade components. It has been mass-produced and is suitable for a variety of application scenarios.

NF-01-S can be widely applied in various Internet of Things (iot) scenarios, suitable for wireless keyboards and mice, wireless remote controls, motion-sensing devices, active RFID, NFC, low-power AD hoc network wireless sensor network nodes, etc. It is an ideal solution for iot applications.

NF-01-S adopts DIP-8 packaging. Whether for learning or mass production, it can be quickly integrated into existing products and is very convenient to use

Product technical specifications

Module model

"Encapsulation"

"Size"

Communication interface

Air speed

Spectrum range

Antenna form

Maximum transmission power

Receiving sensitivity

NF-01-S

DIP-8

28.6* 15.3mm

SPI(with a maximum speed of up to 10Mbps)

Adjustable in three levels from 250k to 2Mbps (250kbps, 1Mbps, 2Mbps)

Adjustable from 2400MHz to 2525MHz, with a 1MHz step

On-board PCB antenna

7+1 dBm

-96dBm@250kbps

Transmission current :25mA(7dBm)

Average current

Receiving current :15mA(2Mbps)

Shutdown current :1.0uA(Shutdown mode)

Power supply range

Working temperature

Storage environment

1.9 to 3.6V, with a typical value of 3.3V

-20℃ to 85℃(It is recommended that the working temperature does not exceed 70℃

-20℃~90 ℃,<90%RH

Packaging and transportation instructions

- According to the standard export packaging.

Customers can choose from cartons, wooden cases and wooden pallets according to their own requirements.
