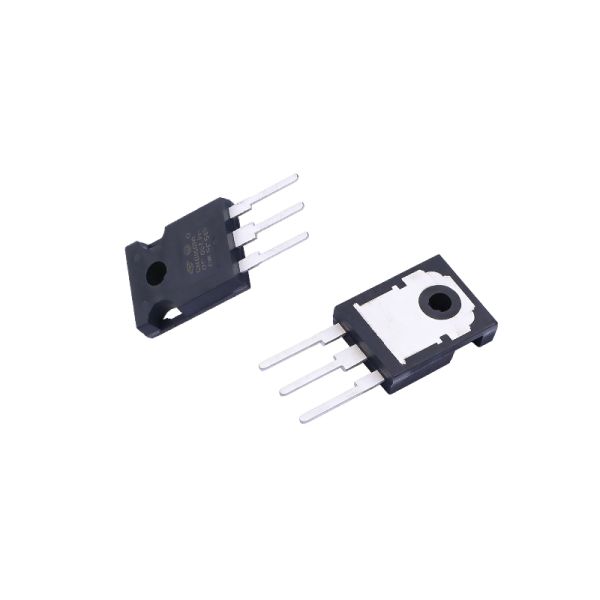

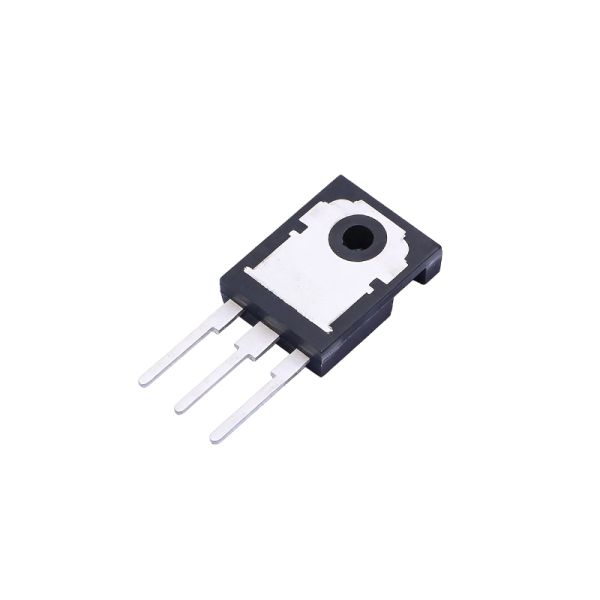

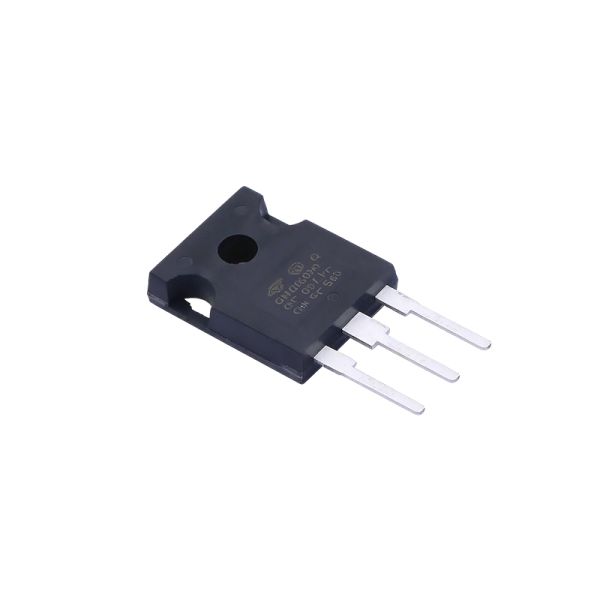

STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
Specifications
Brand Name :
ST
Model Number :
STGW80V60DF
Certification :
rohs
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Manufacturer :
STMicroelectronics
Product Category: :
IGBTs
Configuration: :
Single
Collector- Emitter Voltage VCEO Max: :
600 V
Collector-Emitter Saturation Voltage: :
1.85 V
Maximum Gate Emitter Voltage: :
- 20 V, 20 V
Description
STGW80V60DF IGBTs Trench gate V series 600V 80A HiSpd
Features
  • Maximum junction temperature: TJ = 175 °C
  • Tail-less switching off
  • VCE(sat) = 1.85 V (typ.) @ IC = 80 A
  • Tight parameters distribution
  • Safe paralleling
  • Low thermal resistance
  • Very fast soft recovery antiparallel diode
Applications
  • Photovoltaic inverters
  • Uninterruptible power supply
  • Welding
  • Power factor correction
  • Very high frequency converters
Order code Marking Package Packaging
Order code Marking Package Packaging
STGW80V60DF GW80V60DF TO-247 Tube
STGWT80V60DF GWT80V60DF TO-3P Tube
STGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed SwitchingSTGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed SwitchingSTGW80V60DF 600V 80A Trench Gate IGBT Power Transistor for High-Speed Switching
Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
