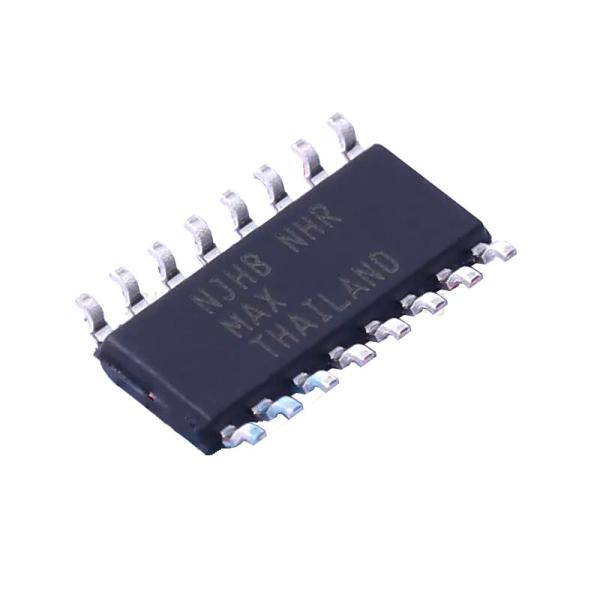

CMOS analog switch MAX313 Multiplexer chip MAX313CSE+T

Maxim的MAX312/MAX313/MAX314模拟开关
具有低导通电阻(最大10Ω)和1.5Ω导通电阻
通道之间的阻抗匹配.这些开关
在两个方向上导通性能相同.它们提供低
温度下的泄漏(+85°C时为2.5nA).低功耗
消耗和大于2000V的ESD容限
符合Method 3015.7.
MAX312/MAX313/MAX314是四通道,单极/单刀单掷(SPST)模拟开关.
MAX312
为常闭(NC),而MAX313为常开(NO).MAX314有两个NC开关和两个
NO开关.这三个设备都工作在单
电源+4.5V至+30V或±4.5V至±20V.

♦ 与DG411/DG412/DG413引脚兼容
♦ 低导通电阻(典型值6.5Ω)
♦ 通道间导通电阻保证匹配(最大1.5Ω)
♦ 保证在指定信号范围内导通电阻平坦度(最大2Ω)
♦ 保证静电放电保护 > 2000V 按照方法
♦ 3015.7
♦ 串扰 > 96dB 在20kHz
♦ 单电源操作:+4.5V 到 +30V
♦ 双电源操作:±4.5V 到 ±20V
♦ 铁对铁信号处理

应用
测试设备
通信系统
PBX, PABX 系统
音频信号路由
航空电子设备
采样和保持电路
数据采集系统
