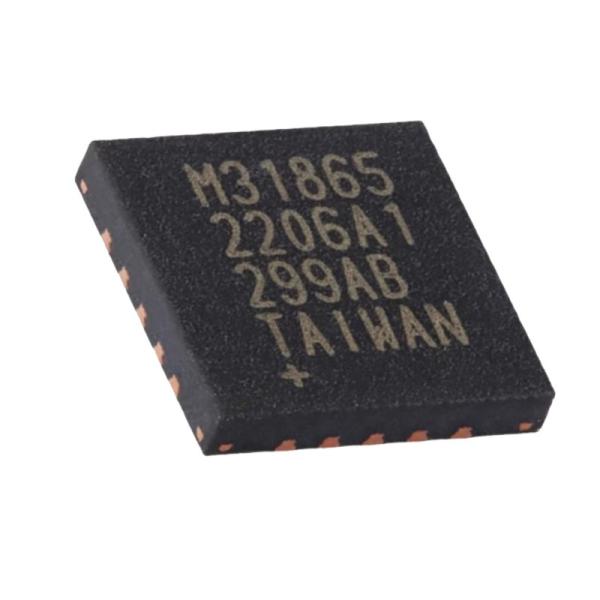

ADC digital converter chip is suitable for industrial equipment, medical equipment and instruments MAX31865ATP+T

概述
MAX31865 是一种易于使用的电阻到数字
转换器,专为优化铂电阻温度
探测器(RTDs)而设计.外部电阻设置所使用的RTD的灵敏度
,精密Δ-ΣADC将RTD电阻与参考
电阻的比率转换成数字形式.MAX31865的输入
受到过压故障的保护,最大可承受Q45V.
包括可编程检测RTD和电缆开路及
短路条件.
应用
● 工业设备
● 医疗设备
● 仪器

优点和特性
● 集成降低了系统成本,简化了设计
工作,减少了设计周期
• 简单地将铂热电阻转换为
数字值
• 处理100Ω至1kΩ(0°C时)的铂热电阻(PT100至PT1000) • 兼容2线,3线和4线传感器连接 • SPI兼容接口 • 20引脚TQFN和SSOP封装 ● 高精度有助于满足误差预算 • 15位ADC分辨率；标称温度 分辨率0.03125NC(由于热电阻非线性而有所不同) • 在所有工作条件下:总精度 0.5NC(满量程的0.05%)最大 • 全差分VREF输入
• 21毫秒(最大)转换时间
● 内置故障检测提高系统
可靠性
• ±45V输入保护
• 故障检测(开路RTD元件,RTD元件短接到
超出范围电压,或RTD元件短路)

绝对最大额定值
VDD 相对于 GND1 的电压范围 ............-0.3V 到 +4.0V
BIAS,REFIN+ 的电压范围,
REFIN-,ISENSOR .................................-0.3V 到 (VDD + 0.3V)
FORCE+,FORCE2,
FORCE-,RTDIN+,RTDIN- 相对于 GND1 的电压范围 ....-50V 到 +50V
DVDD 相对于 DGND 的电压范围 ........-0.3V 到 +4.0V
所有数字引脚的电压范围
相对于 DGND .............................-0.3V 到 (VDVDD + 0.3V)
连续功耗 (TA = +70NC)
TQFN (在 +70NC 以上每引脚 derate 34.5mW/NC)...............2758.6mW
SSOP (在 +70° C 以上每°C derate 11.9mW/°C)...............952.4mW
静电放电保护 (所有引脚,人体模型) ...................±2kV
工作温度范围 ........................-40°C至+125°C
结温 .....................................................+150°C
储存温度范围 ............................-65°C至+150°C
焊接温度(回流焊) ......................................+260°C
引脚温度(焊接,10秒) .................................+300°C
超过“绝对最大额定值”中列出的应力可能会导致器件永久损坏.这些是应力额定值,不保证在规格的运行部分之外的任何其他条件下器件的功能运行.
暴露于绝对最大额定值
长时间的额定条件可能会影响设备的可靠性.
