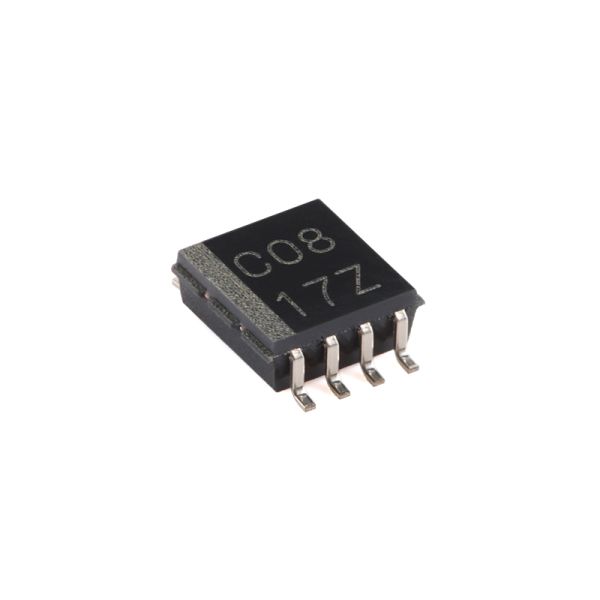

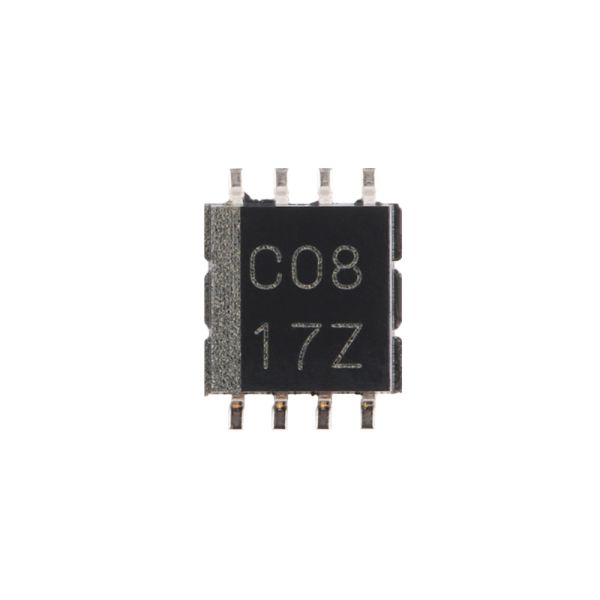

SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
Specifications
Brand Name :
TI
Model Number :
SN74LVC2G08DCTR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days

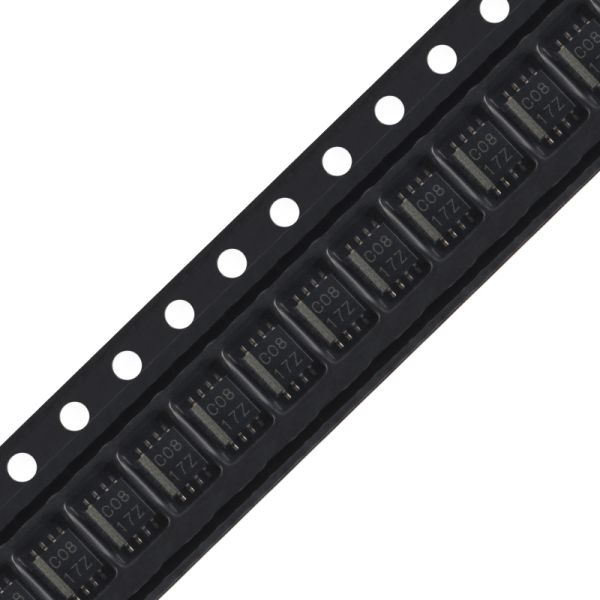

Packaging Details :
T/R
Operating temperature range (°C) :
-40 to 125
Rating :
Catalog
RoHS :
Yes
MSL rating / Peak reflow :
Level-1-260C-UNLIM
IOL (max) (mA) :
-
IOH (max) (mA) :
-
Description
SN74LVC2G08DCTR 2-Channel AND Gate
Dual 2-input positive-AND gate designed for 1.65-V to 5.5-V VCC operation with 32 mA drive strength
Key Features
  • Supports 5-V VCC operation
  • Inputs accept voltages up to 5.5 V
  • Maximum propagation delay of 4.7 ns at 3.3 V
  • Low power consumption: 10-μA maximum ICC
  • ±24-mA output drive at 3.3 V
  • Ioff supports live insertion, partial-power-down mode, and back-drive protection
  • Can be used as a down translator for voltage level shifting
Product Description
This dual 2-input positive-AND gate performs Boolean functions in positive logic and is designed for 1.65-V to 5.5-V VCC operation. The device features NanoFree package technology, using the die as the package for advanced IC packaging. It is fully specified for partial-power-down applications using Ioff circuitry, which disables outputs to prevent damaging current backflow when powered down.
Device Information
Part Number Package Body Size (Nominal)
SN74LVC2G08DCT SM8 (8) 2.95 mm × 2.80 mm
SN74LVC2G08DCU VSSOP (8) 2.30 mm × 2.00 mm
SN74LVC2G08YZP DSBGA (8) 1.91 mm × 0.91 mm
SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate SN74LVC2G08DCTR 2-ch 2-input 1.65-V To 5.5-V 32 MA Drive Strength AND Gate
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
