SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
Specifications
Brand Name :
TI
Model Number :
SN74HC11DR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Operating temperature range (°C) :
-40 to 85
Rating :
Catalog
RoHS :
Yes
MSL rating / Peak reflow :
Level-1-260C-UNLIM
IOL (max) (mA) :
-
IOH (max) (mA) :
-
Description
SN74HC11DR 3-Channel AND Gate
3-channel, 3-input 2-V to 6-V 5.2 mA drive strength AND gate with buffered inputs and wide operating temperature range.
Key Features
  • Buffered inputs for improved signal integrity
  • Wide operating voltage range: 2 V to 6 V
  • Wide operating temperature range: –40°C to +85°C
  • Supports fanout up to 10 LSTTL loads
  • Significant power reduction compared to LSTTL logic ICs
Applications
  • Combining power good signals
  • Enable digital signals
Product Description
This device contains three independent 3-input AND gates. Each gate performs the Boolean function Y = A ● B ● C in positive logic.
Device Information
Part Number Package Body Size (Nominal)
SN74HC11DR SOIC (14) 8.70 mm × 3.90 mm
SN74HC11NR PDIP (14) 19.30 mm × 6.40 mm
SN74HC11NSR SO (14) 10.20 mm × 5.30 mm
SN74HC11PWR TSSOP (14) 5.00 mm × 4.40 mm
SN54HC11JR CDIP (14) 21.30 mm × 7.60 mm
SN54HC11WR CFP (14) 9.20 mm × 6.29 mm
SN54HC11FKR LCCC (20) 8.90 mm × 8.90 mm

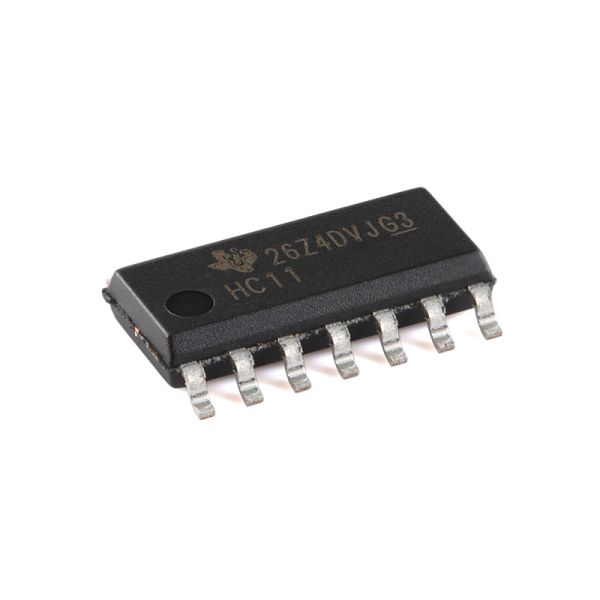

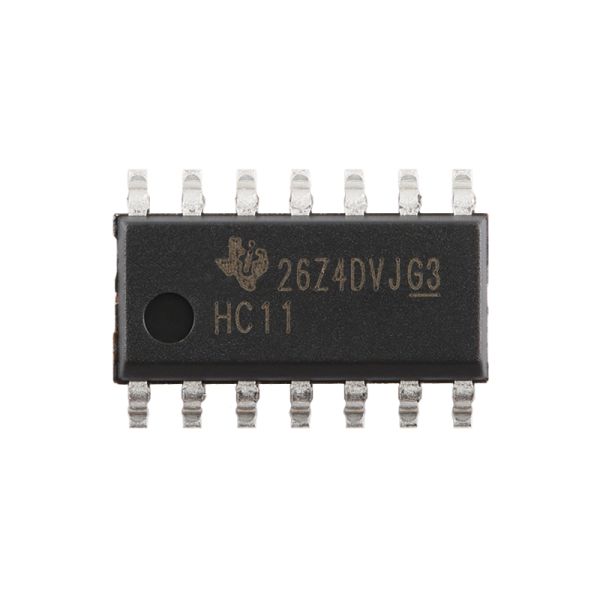

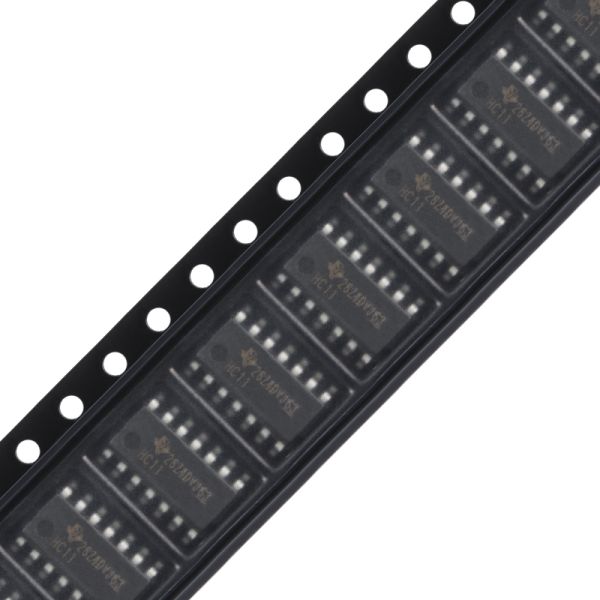

Product Images
SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate SN74HC11DR 3-ch, 3-input 2-V To 6-V 5.2 MA Drive Strength AND Gate
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
