74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
Specifications
Brand Name :
Nexperia
Model Number :
74HC1G66GW,125
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :

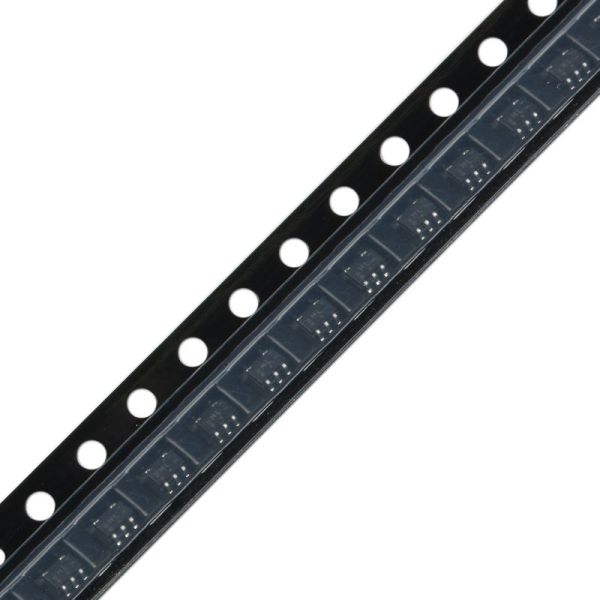

T/R
Product Category: :
Single-pole single-throw analog switch
Switching circuit :
1:1
Number of channels :
1
Operating voltage :
2V~10V
Onset time (ton) :
30ns
Conduction resistance (Ron) :
45Ω
Description
74HC1G66GW,125 Single-Pole Single-Throw Analog Switch
A high-performance single-pole, single-throw analog switch featuring two input/output terminals (nY and nZ) and a digital enable input (nE), designed for reliable signal routing applications.
Key Features
  • Wide supply voltage range from 2.0 V to 10.0 V
  • Very low ON resistance:
    • 45 Ω (typical) at VCC = 4.5 V
    • 30 Ω (typical) at VCC = 6.0 V
    • 25 Ω (typical) at VCC = 9.0 V
  • High noise immunity for stable operation
  • CMOS low power dissipation for energy efficiency
  • Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
  • Complies with JEDEC standards:
    • JESD8C (2.7 V to 3.6 V)
    • JESD7A (2.0 V to 6.0 V)
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
  • Operating temperature range: -40°C to +85°C and -40°C to +125°C
Product Variants & Packaging
Type Number Temperature Range Package Name Package Description Package Version
74HC1G66GW

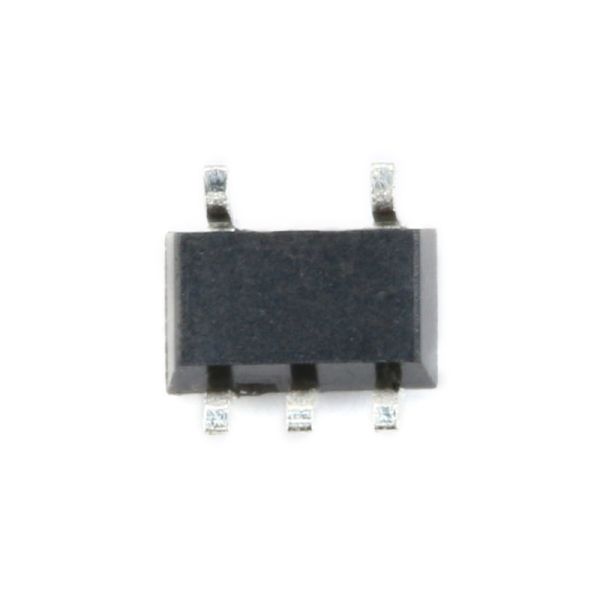

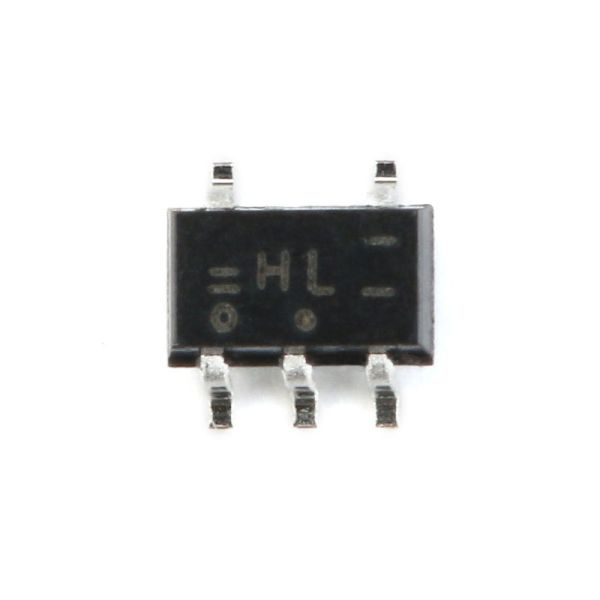

74HCT1G66GW		 -40°C to +125°C TSSOP5 plastic thin shrink small outline package; 5 leads; body width 1.25 mm SOT353-1
74HC1G66GV
74HCT1G66GV		 -40°C to +125°C SC-74A plastic surface-mounted package; 5 leads SOT753
74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE) 74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE) 74HC1G66GW,125 A Single-pole, Single-throw Analog Switch With Two Input/outputterminals (nY And NZ) And A Digital Enable Input (nE)
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
