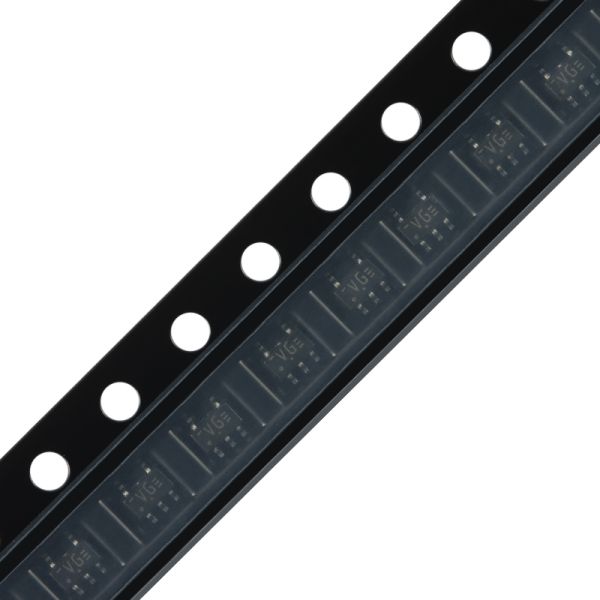

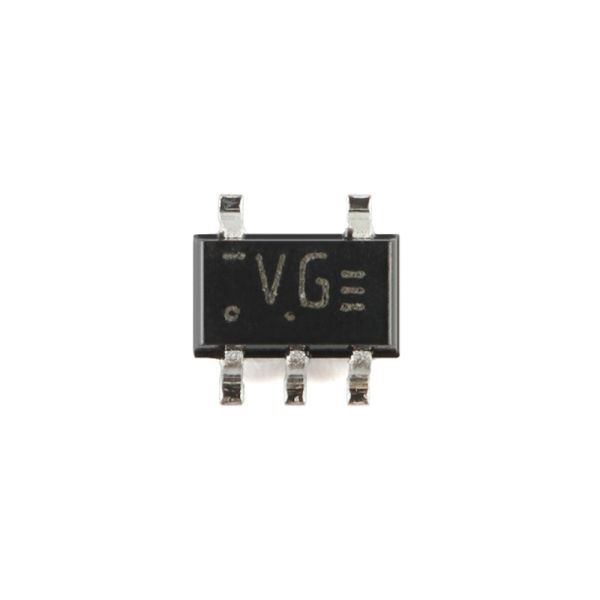

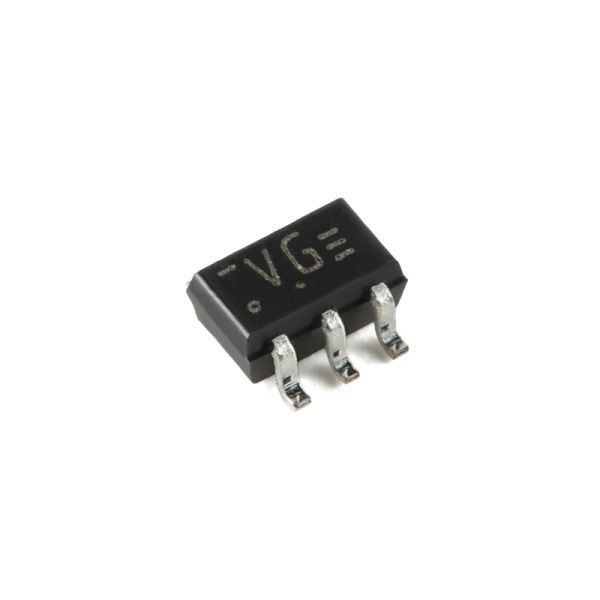

74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments
Specifications
Brand Name :
Nexperia
Model Number :
74LVC1G32GW,125
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Description :
Single 2-input OR gate
VCC (V) :
1.65 - 5.5
Logic switching levels :
CMOS/LVTTL
Output drive capability (mA) :
± 32
tpd (ns) :
2.1
fmax (MHz) :
150
Description

74LVC1G32GW,125 A Single 2-input OR Gate Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments

Key Features
  • Wide supply voltage range from 1.65 V to 5.5 V
  • Overvoltage tolerant inputs to 5.5 V
  • High noise immunity
  • CMOS low power dissipation
  • IOFF circuitry provides partial Power-down mode operation
  • ±24 mA output drive (VCC = 3.0 V)
  • Latch-up performance exceeds 250 mA
  • Direct interface with TTL levels
  • Complies with JEDEC standard:
    • JESD8-7 (1.65 V to 1.95 V)
    • JESD8-5 (2.3 V to 2.7 V)
    • JESD8-B/JESD36 (2.7 V to 3.6 V)
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
  • Multiple package options
  • Specified from -40 °C to +85 °C and -40 °C to +125 °C.
Package Options
Type number Temperature range Package Name Description Version
74LVC1G32GW -40 °C to +125 °C TSSOP5 plastic thin shrink small outline package; 5 leads;body width 1.25 mm SOT353-1
74LVC1G32GV -40 °C to +125 °C SC-74A plastic surface-mounted package; 5 leads SOT753
74LVC1G32GM -40 °C to +125 °C XSON6 plastic extremely thin small outline package; no leads;6 terminals; body 1 * 1.45 * 0.5 mm SOT886
74LVC1G32GN -40 °C to +125 °C XSON6 extremely thin small outline package; no leads;6 terminals; body 0.9 * 1.0 * 0.35 mm SOT1115
74LVC1G32GS -40 °C to +125 °C XSON6 extremely thin small outline package; no leads;6 terminals; body 1.0 * 1.0 * 0.35 mm SOT1202
74LVC1G32GX -40 °C to +125 °C X2SON5 plastic thermal enhanced extremely thinsmall outline package; no leads; 5 terminals;body 0.8 * 0.8 * 0.32 mm SOT1226-3
74LVC1G32GZ -40 °C to +125 °C XSON5 plastic thermal enhanced extremely thin small outlinepackage with side-wettable flanks (SWF); no leads;5 terminals; body 1.1 * 0.85 * 0.5 mm SOT8065-1

74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments 74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments 74LVC1G32GW,125 A Single 2-input OR Gate. Inputs Can Be Driven From Either 3.3 V Or 5 V Devices.This Feature Allows The Use Of These Devices As Translators In Mixed 3.3 V And 5 V Environments

Packaging & Shipping

Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their requirements.

Frequently Asked Questions

How to obtain the price?

We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.

What is your delivery time?

Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.

What are your payment terms?

Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.

What are the shipping options?

Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
