Specifications
Brand Name :
Nexperia
Model Number :
74HCT1G00GV,125
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :
T/R
Description :
Single 2-input NAND gate; TTL enabled
VCC (V) :
4.5 - 5.5
Logic switching levels :
CMOS/LVTTL
Output drive capability (mA) :
± 2
tpd (ns) :
10
fmax (MHz) :
36
Description
74HCT1G00GV,125 - Single 2-Input NAND Gate
The 74HCT1G00GV,125 is a single 2-input NAND gate featuring inputs with clamp diodes. This design enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key Features
  • Wide supply voltage range from 2.0 V to 6.0 V
  • CMOS low power dissipation
  • Input levels optimized for specific variants:
    • 74HC1G00: CMOS level
    • 74HCT1G00: TTL level
  • Symmetrical output impedance
  • High noise immunity
  • Latch-up performance exceeds 100 mA per JESD78 Class II Level B
  • Balanced propagation delays
  • Complies with JEDEC standards:
    • JESD8C (2.7 V to 3.6 V)
    • JESD7A (2.0 V to 6.0 V)
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
  • Operating temperature ranges: -40°C to +85°C and -40°C to +125°C
Package Options
Type Number Package Temperature Range Description Version
74HC1G00GW
74HCT1G00GW		 TSSOP5 -40°C to +125°C Plastic thin shrink small outline package; 5 leads; body width 1.25 mm SOT353-1
74HC1G00GV
74HCT1G00GV		 SC-74A -40°C to +125°C Plastic surface-mounted package; 5 leads SOT753

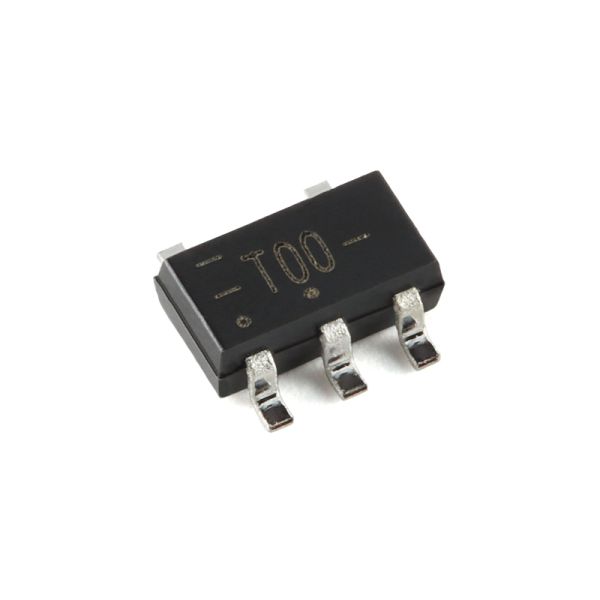

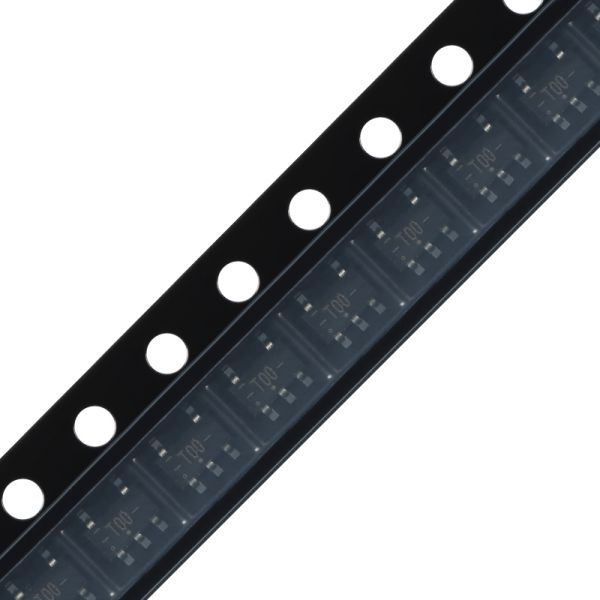

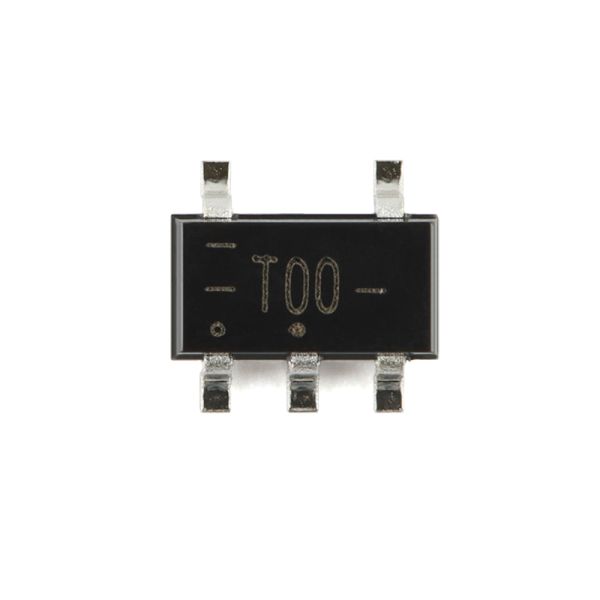

Product Images
