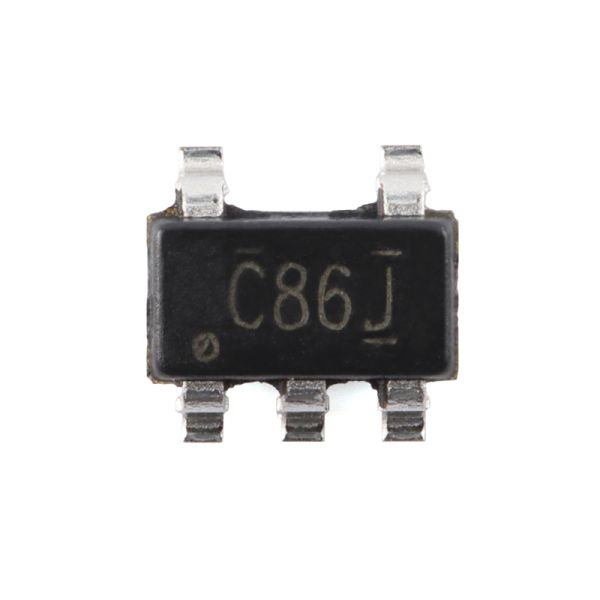

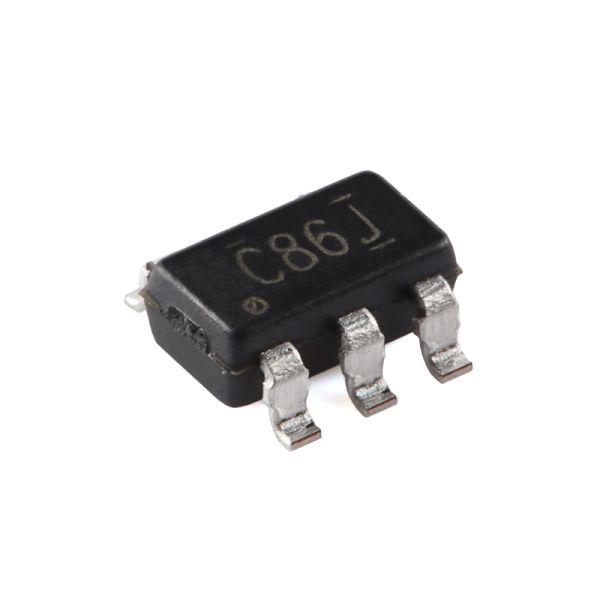

SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
Specifications
Brand Name :
TI
Model Number :
SN74LVC1G86DBVR
Certification :
ROHS
Place of Origin :
CN
MOQ :
1
Price :
consult with
Payment Terms :
T/T,Western Union
Supply Ability :
100000
Delivery Time :
5-8days
Packaging Details :

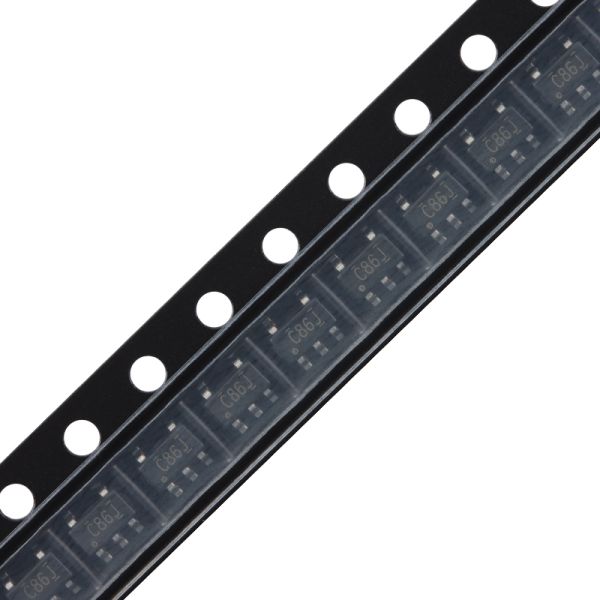

T/R
Operating temperature range (°C) :
-40 to 125
Rating :
Catalog
RoHS :
Yes
MSL rating / Peak reflow :
Level-1-260C-UNLIM
IOL (max) (mA) :
-
IOH (max) (mA) :
-
Description
SN74LVC1G86DBVR Single 2-input XOR Gate
Single 2-input, 1.65-V to 5.5-V XOR (exclusive OR) gate with advanced performance characteristics.
Key Features
  • ESD Protection Exceeds JESD 22 Standards
  • 2000-V Human-Body Model (A114-A)
  • 1000-V Charged-Device Model (C101)
  • Operating temperature range: –40°C to +125°C
  • Supports 5-V VCC Operation
  • Inputs tolerate over voltage up to 5.5 V
  • Supports down translation to VCC
  • Maximum propagation delay of 4 ns at 3.3 V with 15-pF load
  • Low power consumption: 10-µA maximum ICC at 85°C
  • ±24-mA output drive at 3.3 V
  • Ioff supports partial-power-down mode and back-drive protection
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
Package Options
Part Number Package Body Size (Nominal)
SN74LVC1G86DBV SOT-23 (5) 2.90 mm × 1.60 mm
SN74LVC1G86DCK SC70 (5) 2.00 mm × 1.25 mm
SN74LVC1G86DRL SOT (5) 1.60 mm × 1.20 mm
SN74LVC1G86YZP DSBGA (5) 1.44 mm × 0.94 mm
SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate SN74LVC1G86DBVR Single 2-input, 1.65-V To 5.5-V XOR (exclusive OR) Gate
Packaging & Shipping
Standard export packaging available. Customers can choose from cartons, wooden cases, and wooden pallets according to their specific requirements.
Frequently Asked Questions
How to obtain the price?
We typically provide quotations within 24 hours of receiving your inquiry (excluding weekends and holidays). For urgent pricing requests, please contact us directly.
What is your delivery time?
Small batches typically ship within 7-15 days, while large batch orders may require approximately 30 days depending on order quantity and season.
What are your payment terms?
Factory pricing with 30% deposit and 70% balance payment via T/T before shipment.
What are the shipping options?
Available shipping methods include sea freight, air freight, and express delivery (EMS, UPS, DHL, TNT, FEDEX). Please confirm your preferred method before ordering.
